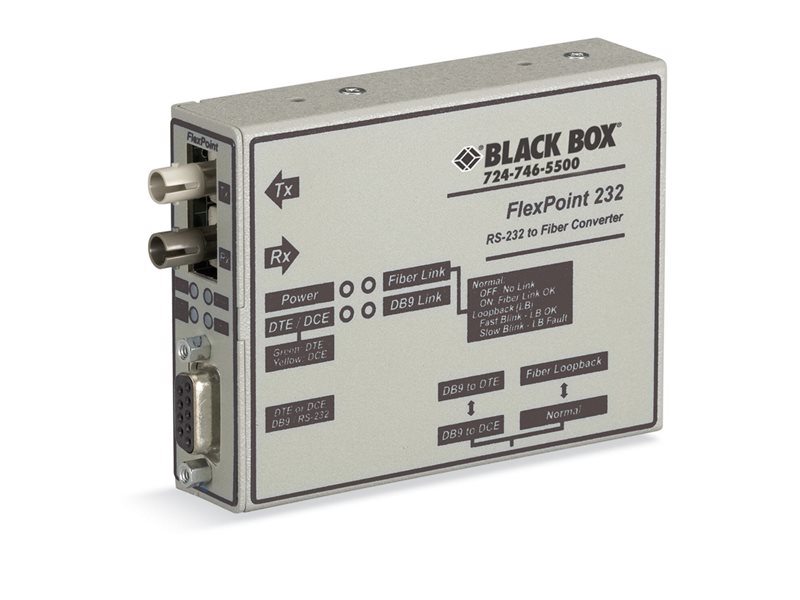

Fiber media converter - RS-232 / ST multi-mode - up to 3.1 miles - 1310 nm
| Main Specifications | |
|---|---|
| Product Description | Black Box FlexPoint - fiber media converter |
| Device Type | Fiber media converter - RS-232 / ST multi-mode |
| Form Factor | External |
| Data Transfer Rate | 115.2 Kbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 3.1 miles |
| Power | DC 9 V |
| Dimensions (WxDxH) | 4 in x 3 in x 1 in |
| Weight | 7.05 oz |
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x RS-232 - DB-9 ¦ - ST multi-mode |
| Miscellaneous | |
| Included Accessories | Power supply |
| Compliant Standards | FCC-15 (Class A), UL E176900 |
| Networking | |
| Connectivity Technology | Wired |
| Data Transfer Rate | 115.2 Kbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 3.1 miles |
| Status Indicators | Power, link, fiber |
| Features | Asynchronous operating mode, Point-to-Point (PtP) link mode, LED display |
| Power | |
| Voltage Required | DC 9 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 4 in |
| Depth | 3 in |
| Height | 1 in |
| Weight | 7.05 oz |
