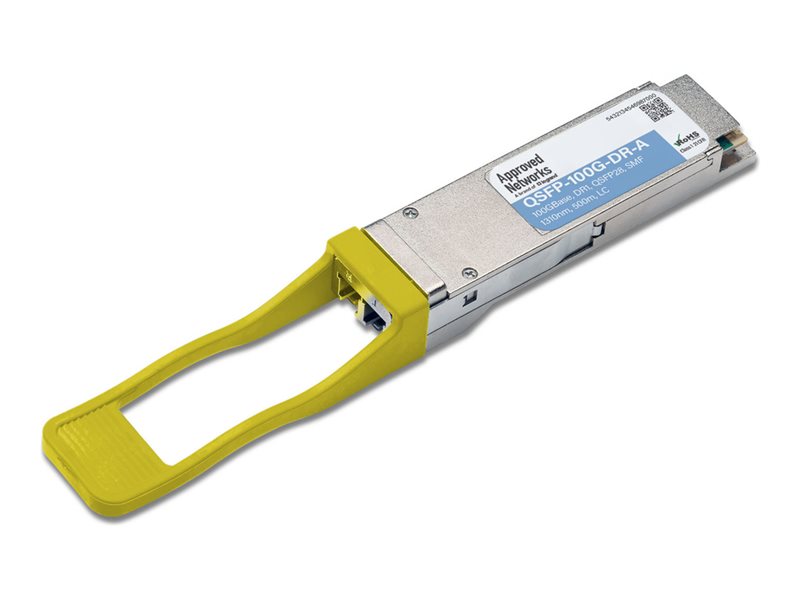

QSFP28 transceiver module (equivalent to: Arista QSFP-100G-DR) - 100GbE - 100GBase-DR1 - LC single-mode - up to 1640 ft - 1310 nm
| Main Specifications | |
|---|---|
| Product Description | Approved Networks - QSFP28 transceiver module - 100GbE |
| Device Type | QSFP28 transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Cabling Type | 100GBase-DR1 |
| Data Transfer Rate | 106.25 Gbps |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 100GbE |
| Max Transfer Distance | 1640 ft |
| OEM Manufacturer Equivalent Part Number | Arista QSFP-100G-DR |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | QSFP28 transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 100GBase-DR1 - LC single-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | MSA, SFF-8665, SFF-8636 |
| OEM Manufacturer Equivalent Part Number | Arista QSFP-100G-DR |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 100GBase-DR1 |
| Data Link Protocol | 100GbE |
| Data Transfer Rate | 106.25 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 1640 ft |
| Features | Digital Diagnostics Monitoring (DDM), Digital Optical Monitoring (DOM) support, -3.9 dBm sensivity, Distributed Feedback Laser (DFB), transmit min -2.9 dBm / max 4 dBm, 3 dB power budget |
| Compliant Standards | IEEE 802.3b |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
