Switch - L3 - managed - 8 x 10/100/1000 (8 PoE+) + 4 x 10 Gigabit SFP+ - desktop - Passive PoE / PoE++ (200 W)
| Main Specifications | |
|---|---|

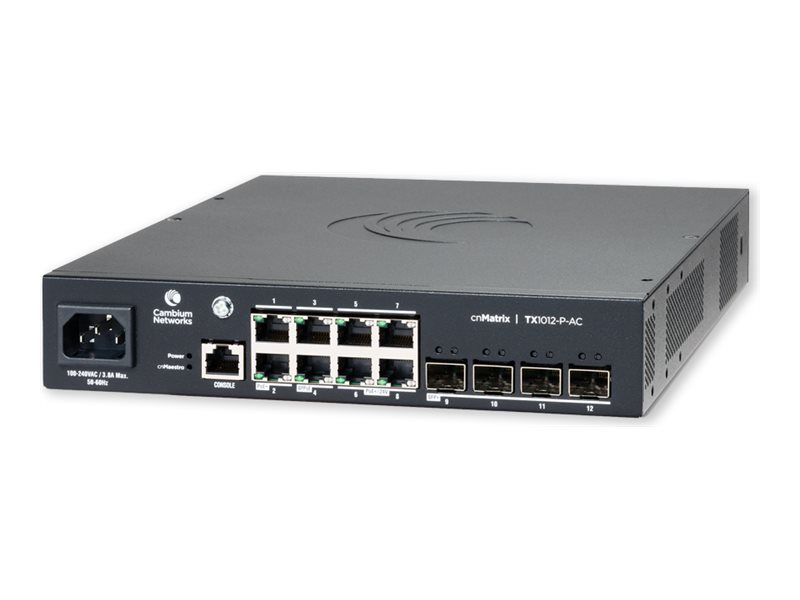

| Product Description | Cambium Networks cnMatrix TX1000 Series TX1012-P-AC - switch - 12 ports - managed |
| Device Type | Switch - 12 ports - L3 - managed |
| Enclosure Type | 1U |
| Subtype | Gigabit Ethernet / 10 Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (8 PoE+) + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | Passive PoE / PoE++ |
| PoE Budget | 200 W |
| Performance | Throughput: 96 Gbps ¦ Forwarding rate (64?byte packets): 120 Mpps |
| Capacity | VLANs supported: 4000 ¦ QoS queues: 8 ¦ ACL entries (ingress/egress): 128 ¦ Static ARP entries: 512 ¦ ARP entries: 512 ¦ Static routes: 64 ¦ Dynamic routes: 512 ¦ IGMP multicast groups: 256 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | RIP-2, RIP-1, OSPFv2 |
| Remote Management Protocol | SSH, SSH-2, SNMP, SNMP 2, SNMP 3 |
| Features | Intelligent PoE support, VLAN support, ARP support, Auto-MDI/MDIX support, BPDU Guard, DHCP relay, Inter-VLAN Routing, Root Guard, route redistribution, static route, QoS, CoS, ToS, DiffServ support, traffic shaping, traffic metering, MAC address authentication, DHCP snooping |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.3az |
| Dimensions (WxDxH) | 11 in x 9.1 in x 1.7 in |
| Weight | 4.89 lbs |
| General | |
| Device Type | Switch - 12 ports - L3 - managed |
| Enclosure Type | Desktop 1U |
| Subtype | Gigabit Ethernet / 10 Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (8 PoE+) + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | Passive PoE / PoE++ |
| PoE Budget | 200 W |
| Performance | Throughput: 96 Gbps ¦ Forwarding rate (64?byte packets): 120 Mpps |
| Capacity | VLANs supported: 4000 ¦ QoS queues: 8 ¦ ACL entries (ingress/egress): 128 ¦ Static ARP entries: 512 ¦ ARP entries: 512 ¦ Static routes: 64 ¦ Dynamic routes: 512 ¦ IGMP multicast groups: 256 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | RIP-2, RIP-1, OSPFv2 |
| Remote Management Protocol | SSH, SSH-2, SNMP, SNMP 2, SNMP 3 |
| Authentication Method | RADIUS, TACACS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2) |
| Features | Intelligent PoE support, VLAN support, ARP support, Auto-MDI/MDIX support, BPDU Guard, DHCP relay, Inter-VLAN Routing, Root Guard, route redistribution, static route, QoS, CoS, ToS, DiffServ support, traffic shaping, traffic metering, MAC address authentication, DHCP snooping |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.3az |
| Processor | : 800 MHz |
| RAM | 512 MB |
| Flash Memory | 128 MB |
| Status Indicators | PoE, link/activity |
| Expansion / Connectivity | |
| Interfaces | 8 x Gigabit LAN RJ-45 PoE+ ¦ 4 x 10GBase-X SFP+ uplink ¦ 1 x serial (console) |
| Miscellaneous | |
| Rack Mounting Kit | Optional |
| MTBF | 741,409 hours |
| Compliant Standards | RFC768, RFC783, RFC791, RFC792, RFC793, RFC826, RFC894, RFC896, RFC951, RFC1034, RFC1035, RFC1321, RFC1534, RFC2021, RFC2030, RFC2131, RFC2132, RFC2328, RFC2613, RFC2618, RFC2674, RFC2737, RFC2818, RFC2819, RFC2863, RFC2865, RFC2869, RFC2925, RFC3164, RFC3579, RFC3580 |
| Power | |
| Power Device | Internal power supply |
| Power Provided | 260 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 20 - 90% RH |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 11 in |
| Depth | 9.1 in |
| Height | 1.7 in |
| Weight | 4.89 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 13.8 in |
| Shipping Depth | 13 in |
| Shipping Height | 4 in |
| Shipping Weight | 6.06 lbs |
