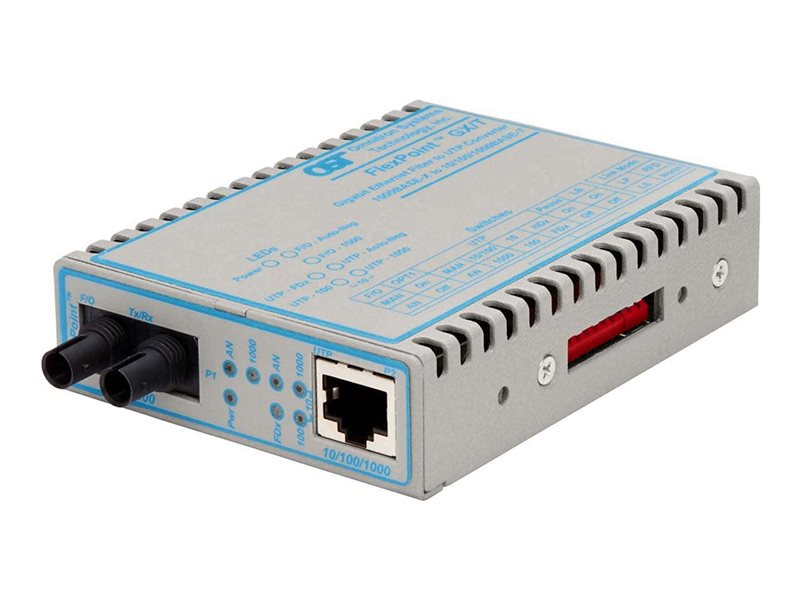

Fiber media converter - 1GbE - 1000Base-T, 1000Base-X, 10Base-T, 100Base-FX - RJ-45 / ST multi-mode - up to 1800 ft - 850 nm - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Omnitron FlexPoint GX/T - fiber media converter - 10Mb LAN, 100Mb LAN, 1GbE - TAA Compliant |
| Device Type | Fiber media converter - RJ-45 / ST multi-mode |
| Form Factor | External |
| Cabling Type | 1000Base-T, 1000Base-X, 10Base-T, 100Base-FX |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 850 nm |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Max Transfer Distance | 1800 ft |
| Dimensions (WxDxH) | 3 in x 4 in x 1 in |
| Weight | 6 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female ¦ 1 x Ethernet 100Base-X - ST multi-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | UL, cUL, UKCA, FCC Class A certified, BAA, NDAA, WEEE, REACH, RoHS |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-T, 1000Base-X, 10Base-T, 100Base-FX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 1800 ft |
| Compliant Standards | IEEE 802.3 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 3 in |
| Depth | 4 in |
| Height | 1 in |
| Weight | 6 oz |
