Switch - hardened, industrial - 16 x 10/100 - DIN rail mountable - TAA Compliant

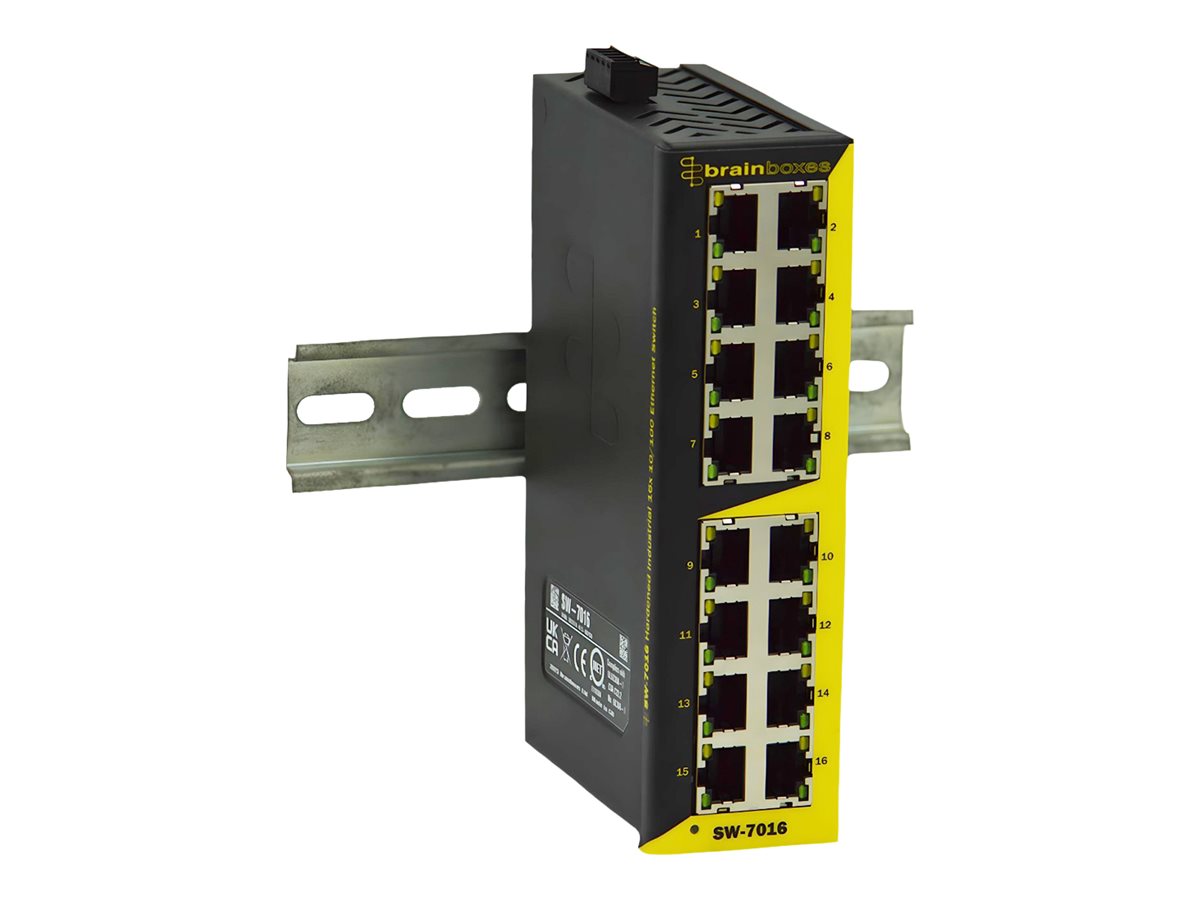

The Brainboxes SW-7016 is a robust 16-port switch designed for industrial applications. With a wide operating temperature range of -40°C to 80°C, it ensures consistent performance in extreme environments. The device supports Fast Ethernet with 10/100 Base-T connections, allowing for efficient data transmission and seamless connectivity. Its DIN rail mountable design simplifies installation, fitting well within various system configurations.
Compliance with multiple standards, including ISO 9001 and RoHS, reflects the device's commitment to quality and environmental responsibility. The SW-7016 features reverse polarity protection and automatic Media-Dependent Interface Crossover (MDIX) functionality, enhancing usability and reliability. The inclusion of LED status indicators allows for easy monitoring of port status, power, and link activity, enabling efficient management of network operations.
The SW-7016 is designed to withstand harsh environments with its hardened casing, ensuring long-term reliability.
Equipped with LED status indicators, this switch provides real-time visual feedback on port status and power, enhancing network management and troubleshooting.
The device can be easily mounted on DIN rails, allowing for streamlined deployment in various industrial settings while saving valuable space.
| Main Specifications | |
|---|---|
| Product Description | Brainboxes SW-7016 - switch - hardened, industrial - 16 ports - TAA Compliant |
| Device Type | Switch - 16 ports |
| Subtype | Fast Ethernet |
| Ports | 16 x 10/100 |
| Features | Hardened, LED status indicators, Auto MDIX, reverse polarity protection |
| Power | 5 - 30 V |
| Dimensions (WxDxH) | 1.7 in x 4 in x 6.2 in |
| Weight | 18.69 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 16 ports |
| Enclosure Type | DIN rail mountable |
| Subtype | Fast Ethernet |
| Ports | 16 x 10/100 |
| Features | Hardened, LED status indicators, Auto MDIX, reverse polarity protection |
| Status Indicators | Link/activity, port status, power |
| Expansion / Connectivity | |
| Interfaces | 16 x 10/100 Base-T RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | DIN-rail clip |
| Compliant Standards | UKCA, MET, AEO, WEEE, RoHS, UL 62328-1, HTS: 8517620000, ECCN: 5A991b, ISO 9001, ISO 14001, CTPAT, GSA |
| TAA Compliant | Yes |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | 5 - 30 V |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 176 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 176 °F |
| Dimensions & Weight | |
| Width | 1.7 in |
| Depth | 4 in |
| Height | 6.2 in |
| Weight | 18.69 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 3.1 in |
| Shipping Depth | 5.5 in |
| Shipping Height | 7.9 in |
| Shipping Weight | 23.63 oz |
