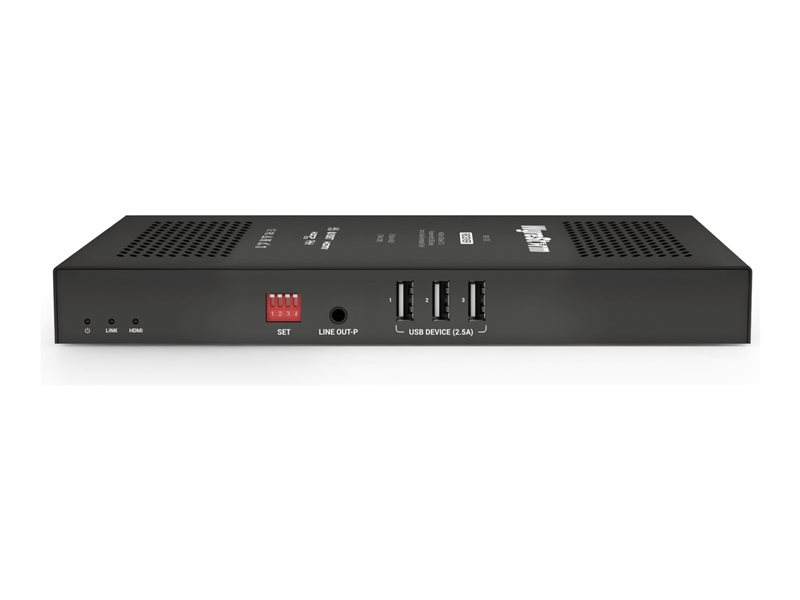

Video/audio/USB/serial/network extender - receiver - HDBaseT 3.0 - up to 62.2 miles - 1U
| Main Specifications | |
|---|---|
| Product Description | WyreStorm RX3-100 - video/audio/USB/serial/network extender - HDBaseT 3.0 |
| Device Type | Video/audio/USB/serial/network extender (receiver) |
| Form Factor | External - 1U |
| Data Transfer Rate | 18 Gbps |
| Data Link Protocol | HDBaseT 3.0 |
| Max Transfer Distance | 62.2 miles |
| Power Over Ethernet (PoE) | PoH |
| Power | DC 20 V |
| Dimensions (WxDxH) | 1.4 in x 3.5 in x 4.2 in |
| Weight | 12.7 oz |
| General | |
| Device Type | Video/audio/USB/serial/network extender (receiver) |
| Form Factor | External - 1U |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (output) - 19 pin HDMI Type A female ¦ 1 x HDBaseT (input) - RJ-45 female ¦ 3 x USB (input) - Type A ¦ 2 x audio line-out (output) - mini jack ¦ 1 x RS-232 (bi-directional) - 3 pin Phoenix |
| Miscellaneous | |
| Included Accessories | 3-pin terminal block, 4 mounting brackets, 4 screws, power supply |
| Compliant Standards | FCC, RoHS, RCM, EAC, UKCA |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT 3.0 |
| Data Transfer Rate | 18 Gbps |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Max Video Bandwidth | 600 MHz |
| Max Transfer Distance | 62.2 miles |
| Features | HDCP compliant, HDR10 support, Dolby Vision pass-through, Hybrid Log-Gamma (HLG) support, HDR support, DTS:X support, LPCM support, bi-directional RS-232, HDR 4K60 8-bit 4:4:4 compatible |
| Compliant Standards | HDCP 2.3 |
| Power | |
| Power Over Ethernet (PoE) | PoH |
| Power Device | External power adapter |
| Voltage Required | DC 20 V |
| Power Consumption Operational | 10.92 Watt |
| Dimensions & Weight | |
| Width | 1.4 in |
| Depth | 3.5 in |
| Height | 4.2 in |
| Weight | 12.7 oz |
