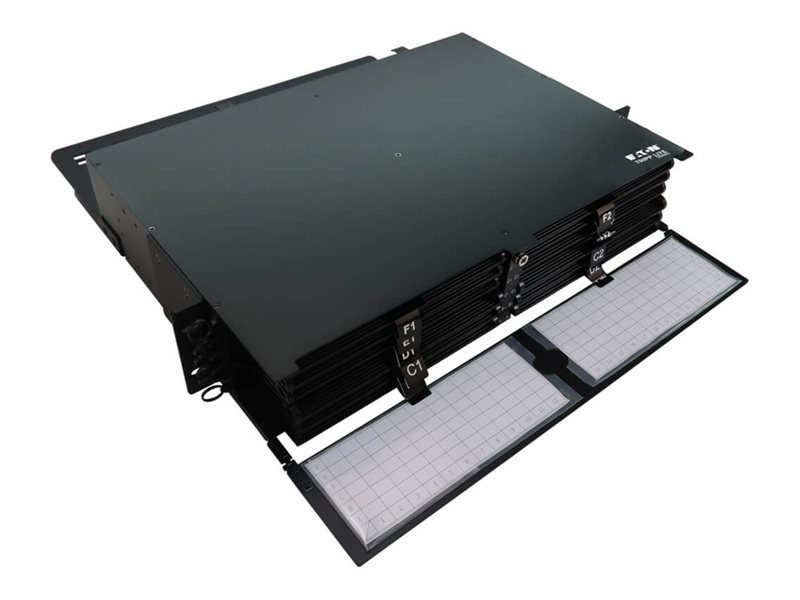

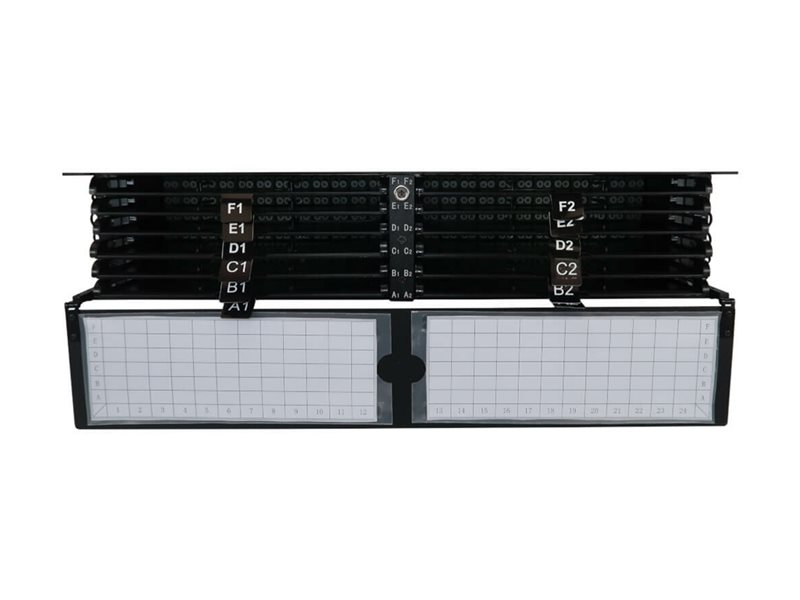

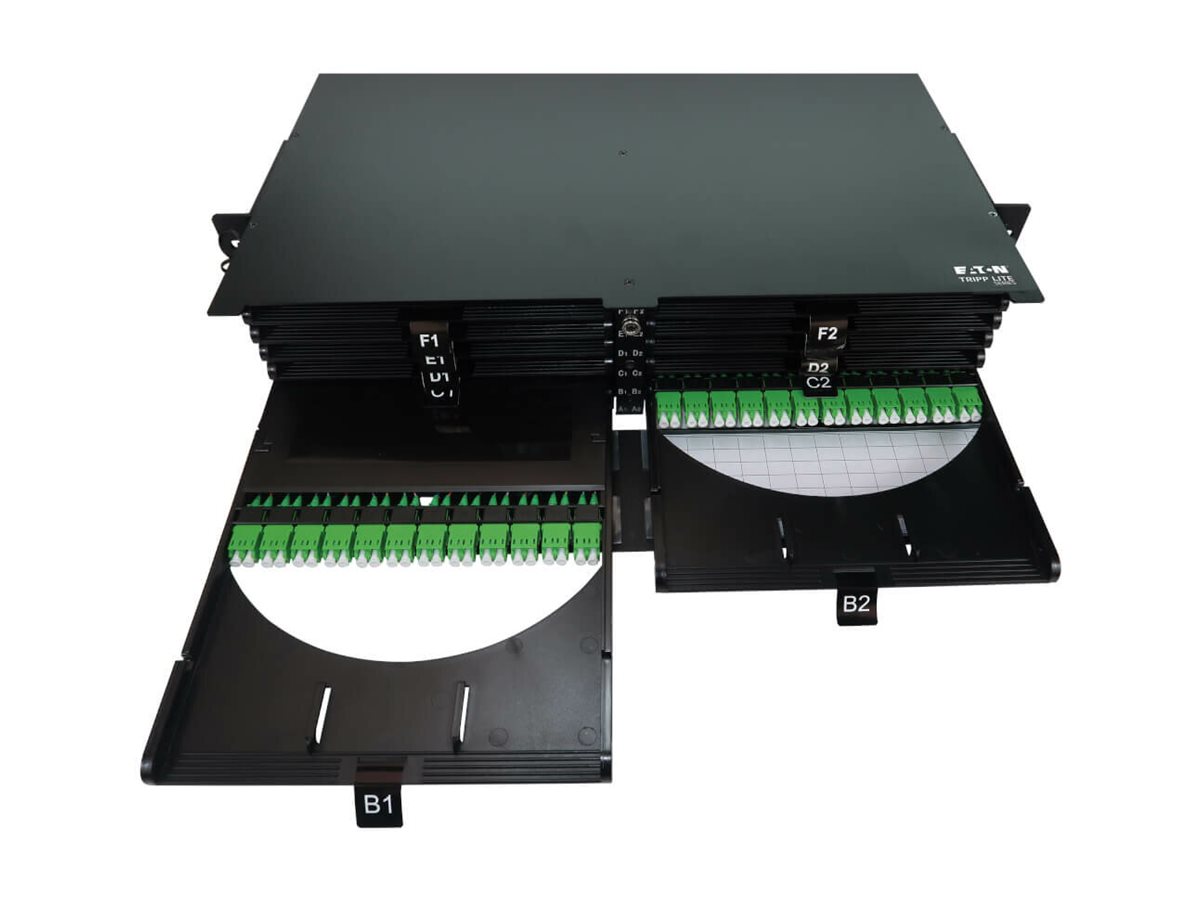

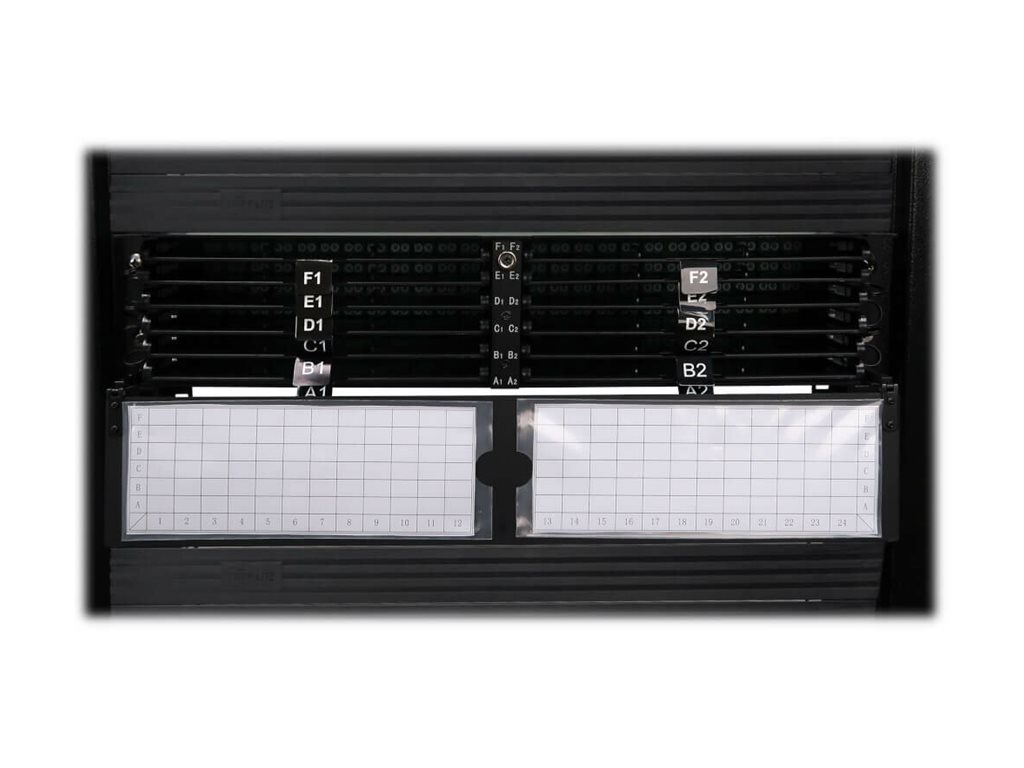

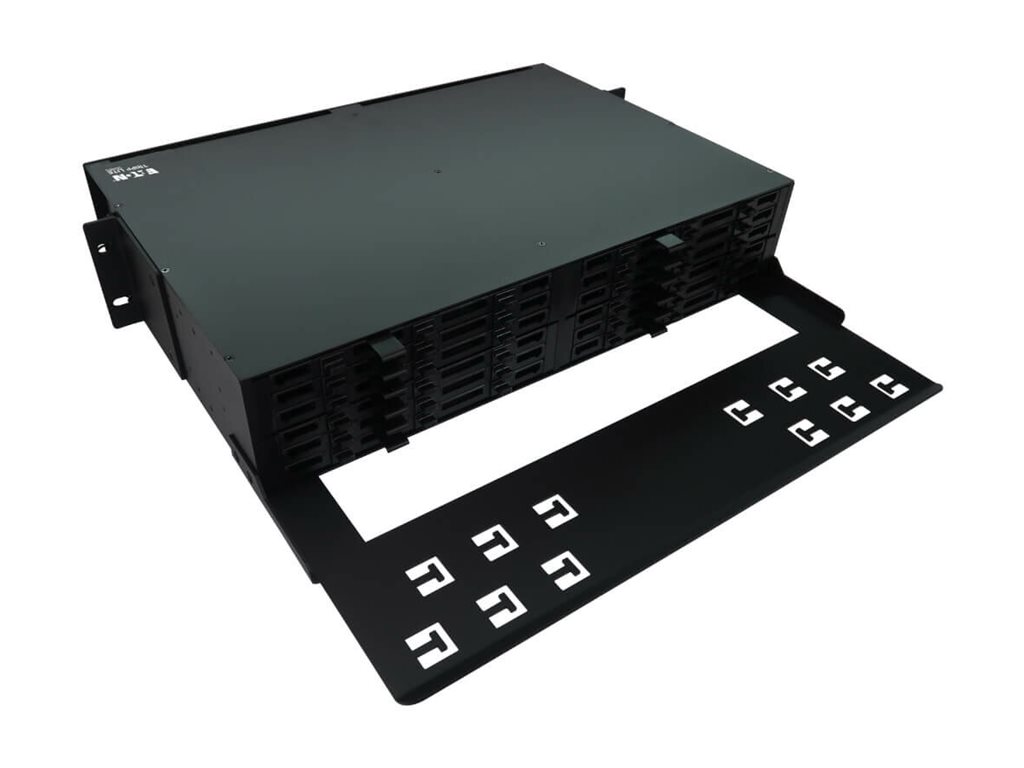

12 Splicing Cassettes, 288 LC/APC SM 0.9 mm, 1.5 m Pigtail, 2U Rack - Fiber-optic splice enclosure - rack mountable - black - 2U - 19" - 144 ports
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series High-Density Panel Fiber Splice Enclosure - 12 Splicing Cassettes, 288 LC/APC SM 0.9 mm, 1.5 m Pigtail, 2U Rack - fiber-optic splice enclosure - 2U - 19" |
| Product Type | Fiber-optic splice enclosure |
| Placing / Mounting | Rack mountable |
| Package Content | 288 single splicing protective tubes, 10 nylon cables ties, touch fastener tie, spiral wrapping band |
| Dimensions (WxDxH) | 19 in x 18.5 in x 3.5 in |
| Product Material | Metal |
| Color | Black |
| Port Qty | 144 ports |
| Height (Rack Units) | 2U |
| Compliant Standards | RoHS, REACH / OS2 |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Product Type | Fiber-optic splice enclosure |
| Placing / Mounting | Rack mountable |
| Package Content | 288 single splicing protective tubes, 10 nylon cables ties, touch fastener tie, spiral wrapping band |
| Product Material | Metal |
| Height (Rack Units) | 2U |
| Width | 19 in |
| Depth | 18.5 in |
| Height | 3.5 in |
| Enclosure Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Rack Size | 19" |
| Mounting Kit | Included |
| Rack Mounting Kit | Included |
| Features | Numbered ports, insertion loss 0.3 dB, 1550nm wavelength, up to 800Gbps, 1.5 m pigtail cable length |
| Compliant Standards | RoHS, REACH |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 85% RH (non-condensing) |
| Cabling & Wiring | |
| Port Qty | 144 ports |
| Technology | Fiber optic |
| Features | 12 splicing cassettes, up to 288 fibers, single-mode, per port labeling |
| Compliant Standards | OS2 |
| Connector Provided | 144 x LC/APC duplex single-mode |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 18.08 lbs |
