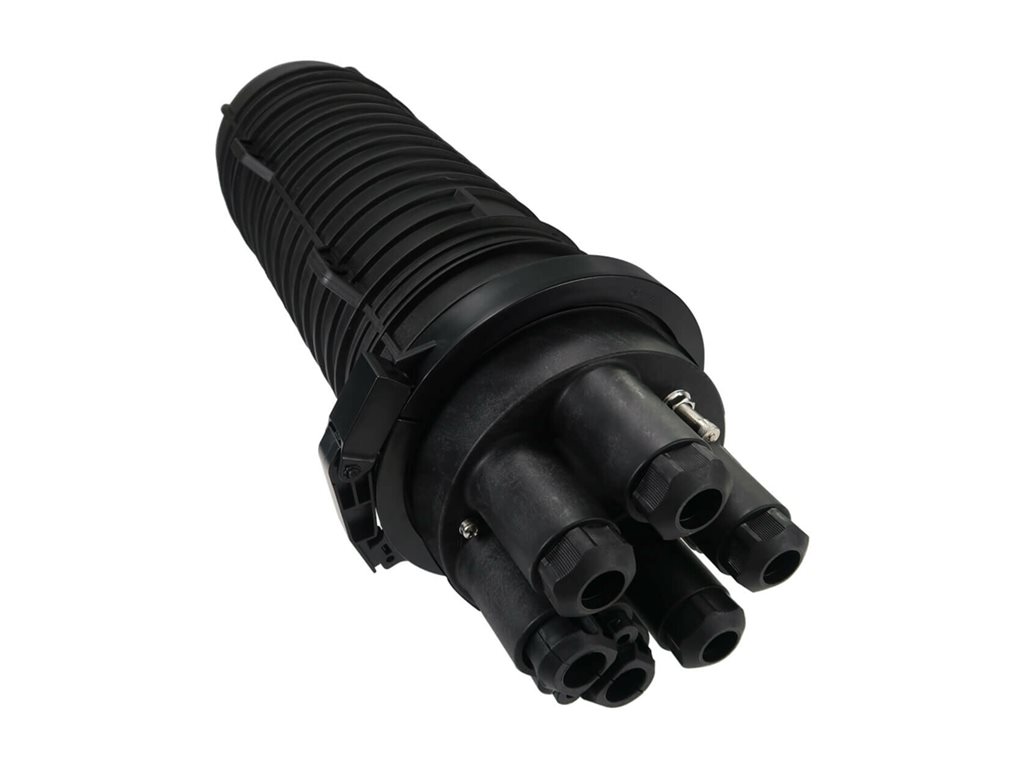

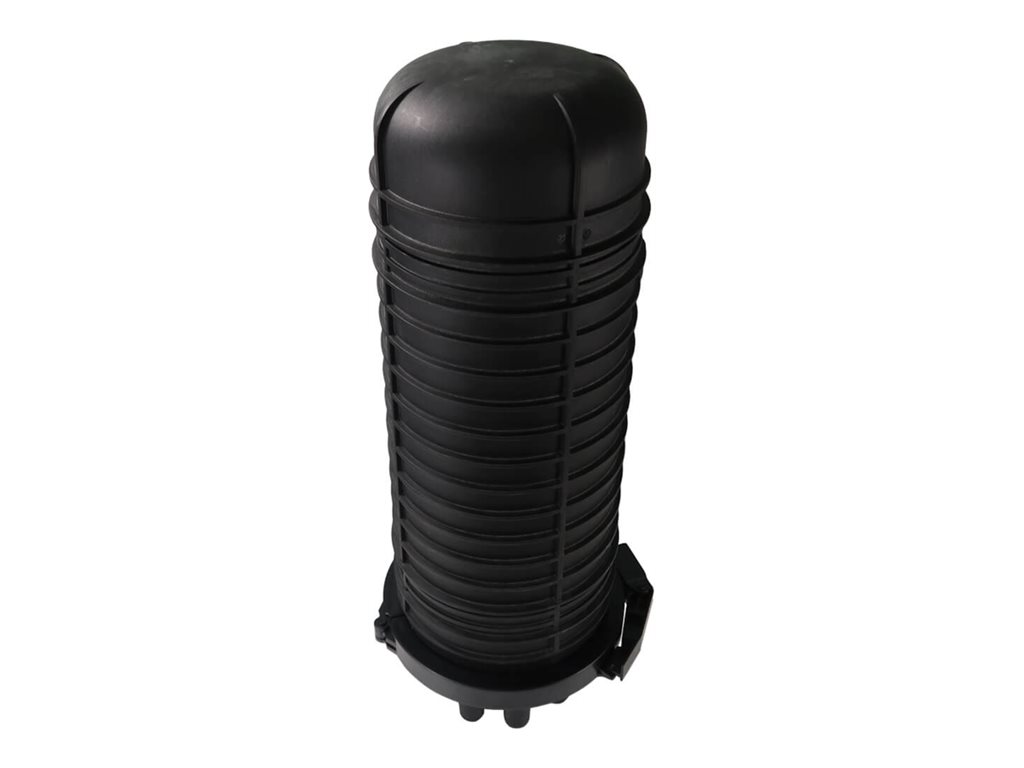

6 Splicing Trays, 1152 Fiber Capacity, IP68 Rated - Fiber-optic splice enclosure - pole mountable, wall mountable, aerial mountable, underground mountable - outdoor - black - 6 ports
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series Fiber Splice Dome Enclosure - 6 Splicing Trays, 1152 Fiber Capacity, IP68 Rated - fiber-optic splice enclosure |
| Product Type | Fiber-optic splice enclosure |
| Placing / Mounting | Pole mountable, wall mountable, aerial mountable, underground mountable |
| Indoor / Outdoor | Outdoor |
| Package Content | 96 splicing tubes, 20 cable ties, 4 choke plugs, 8 cable grommets, EVA tube, silicon oil, insulation tape, cleaning paper, pole mount |
| Dimensions (WxDxH) | 10.2 in x 10.2 in x 23.2 in |
| Product Material | Plastic |
| Color | Black |
| Port Qty | 6 ports |
| Compliant Standards | RoHS, REACH, IP68 / OM1/OM2/OM3/OM4/OM5/OS2 |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Product Type | Fiber-optic splice enclosure |
| Placing / Mounting | Pole mountable, wall mountable, aerial mountable, underground mountable |
| Indoor / Outdoor | Outdoor |
| Package Content | 96 splicing tubes, 20 cable ties, 4 choke plugs, 8 cable grommets, EVA tube, silicon oil, insulation tape, cleaning paper, pole mount |
| Product Material | Plastic |
| Width | 10.2 in |
| Depth | 10.2 in |
| Height | 23.2 in |
| Enclosure Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Mounting Kit | Included |

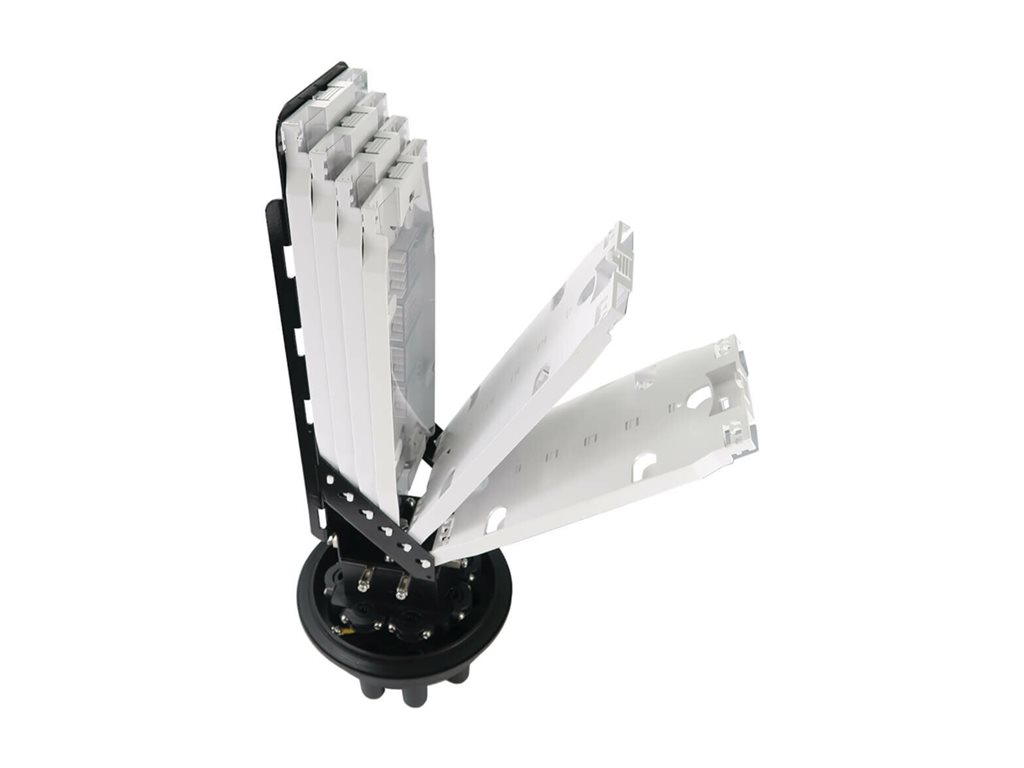

| Features | Hinged splicing trays, dust protection, water protection, built-in labels log |
| Compliant Standards | RoHS, REACH, IP68 |
| Environmental Parameters | |
| Min Operating Temperature | -49 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 5 - 85% RH (non-condensing) |
| Cabling & Wiring | |
| Port Qty | 6 ports |
| Technology | Fiber optic |
| Features | Single-mode, multimode, up to 1152 fibers, 6 splicing trays |
| Compliant Standards | OM1/OM2/OM3/OM4/OM5/OS2 |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 13.45 lbs |
