4PPoE Compliant, 110/Krone, 568A/B, RJ45 Ethernet, White, TAA - Modular insert - CAT 6/6a - RJ-45 - white - TAA Compliant (pack of 10) - for P/N: N042-001-04-WH, N062-024-KJ, N062-032-KJ
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series Cat6 Keystone Jacks, 10 Pack - 4PPoE Compliant, 110/Krone, 568A/B, RJ45 Ethernet, White, TAA - modular insert - TAA Compliant |
| Product Type | Modular insert - CAT 6/6a - RJ-45 |
| Packaged Quantity | 10 (specifications are for single item) |
| Dimensions (WxDxH) | 1.2 in x 0.7 in x 0.8 in |
| Product Material | ABS polycarbonate |
| Color | White |
| Port Qty | 1 port |

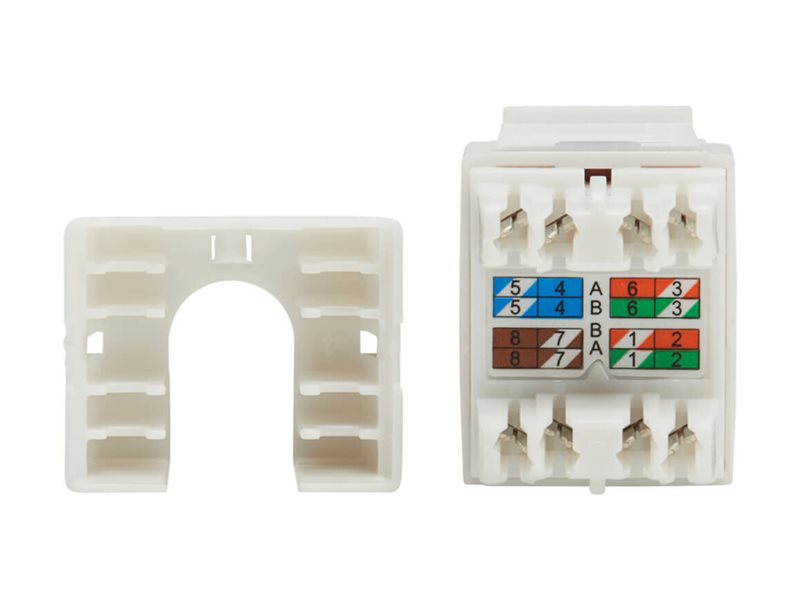

| Wiring Scheme | T568A/B |
| Compliant Standards | 4PPoE, EIA/TIA 568A, EIA/TIA 568B, GSA, UL, CAN/CSA C22.2 No. 182.4-M90, UL 1863, RoHS, UKCA / IEEE 802.3bt |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| Designed For | P/N: N042-001-04-WH, N062-024-KJ, N062-032-KJ |
| General | |
| Packaged Quantity | 10 (specifications are for single item) |
| Product Type | Modular insert - CAT 6/6a |
| Product Material | ABS polycarbonate |
| Width | 1.2 in |
| Depth | 0.7 in |
| Height | 0.8 in |
| Enclosure Color | White |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Features | Max power 100 Watts, up to 10Gbps data transfer |
| Compliant Standards | 4PPoE, EIA/TIA 568A, EIA/TIA 568B, GSA, UL, CAN/CSA C22.2 No. 182.4-M90, UL 1863, RoHS, UKCA |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 10 - 85% RH (non-condensing) |
| Cabling & Wiring | |
| Port Qty | 1 port |
| Termination Type | 110 type termination, IDC |
| Wiring Scheme | T568A/B |
| Features | Keystone type, PoE++ support, color-coded |
| Compliant Standards | IEEE 802.3bt |
| Connector Provided | 1 x RJ-45 female |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 7 in |
| Shipping Depth | 0.5 in |
| Shipping Height | 9 in |
| Shipping Weight | 3.17 oz |
| Compatibility Information | |
| Designed For | P/N: N042-001-04-WH, N062-024-KJ, N062-032-KJ |
