Video/audio/network switch - managed - rack-mountable
| Main Specifications | |
|---|---|

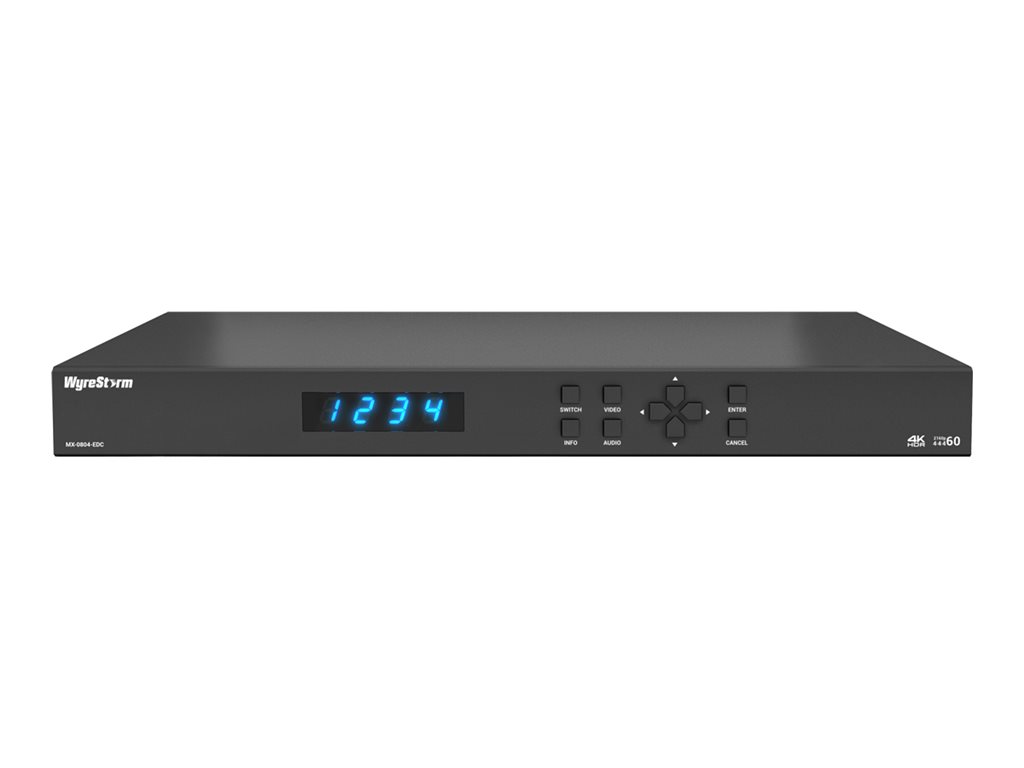

| Product Description | WyreStorm MX-0804-EDC - video/audio/network switch - managed - rack-mountable |
| Device Type | Video/audio/network switch - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | HDMI |
| Remote Management Protocol | Telnet |
| Features | Seamless switching, DSP integrated, Dante audio network, HDR10 support, Dolby Vision pass-through, HLG support, phantom power |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.3 in x 13 in x 1.7 in |
| Weight | 8.38 lbs |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Video/audio/network switch - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | HDMI |
| Remote Management Protocol | Telnet |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Max Video Bandwidth | 600 MHz |
| Features | Seamless switching, DSP integrated, Dante audio network, HDR10 support, Dolby Vision pass-through, HLG support, phantom power |
| Expansion / Connectivity | |
| Interfaces | 1 x USB 3.1 Gen 1 (power delivery) USB Type-C Alt-Mode, 60W ¦ 7 x HDMI input Type A ¦ 2 x USB Type B ¦ 2 x microphone input ¦ 1 x audio input 5 pin terminal block ¦ 4 x HDMI output Type A ¦ 4 x USB Type A ¦ 1 x GPIO 6 pin terminal block ¦ 2 x relay 3 pin terminal block ¦ 2 x audio output 5 pin terminal block ¦ 1 x management (RS-232) 3 pin Phoenix female ¦ 2 x LAN RJ-45 female ¦ 1 x LAN RJ-45 Dante Ultimo 4x4 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | Power cable, 3 x 3-pin terminal block, 4 x 5-pin terminal block, 6-pin terminal block, 2 mounting brackets with screws |
| Cables Included | 1 x USB-C cable - 6.6 ft |
| Compliant Standards | HDCP 2.3, EDID compatible, CEC, BT.2020 Colorimetry |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 124 Watt |
| Software / System Requirements | |
| Software Included | Web UI |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 13 in |
| Height | 1.7 in |
| Weight | 8.38 lbs |
