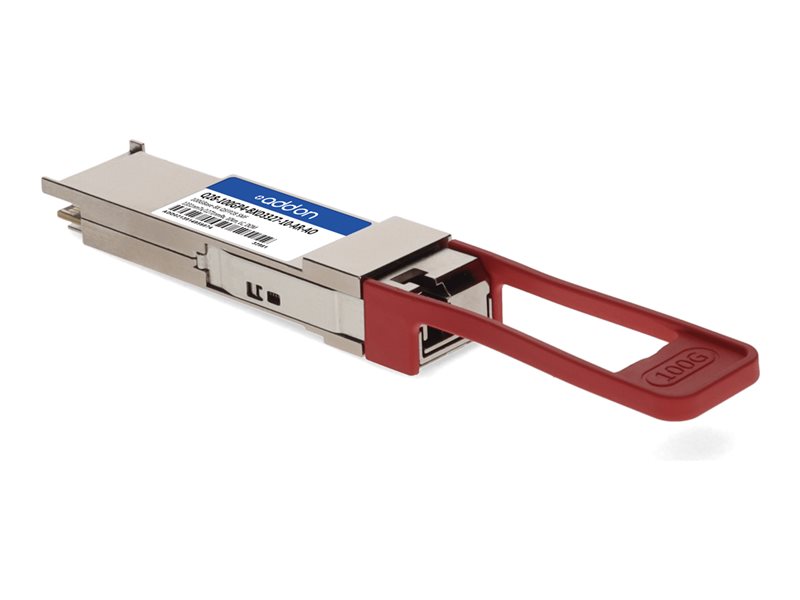

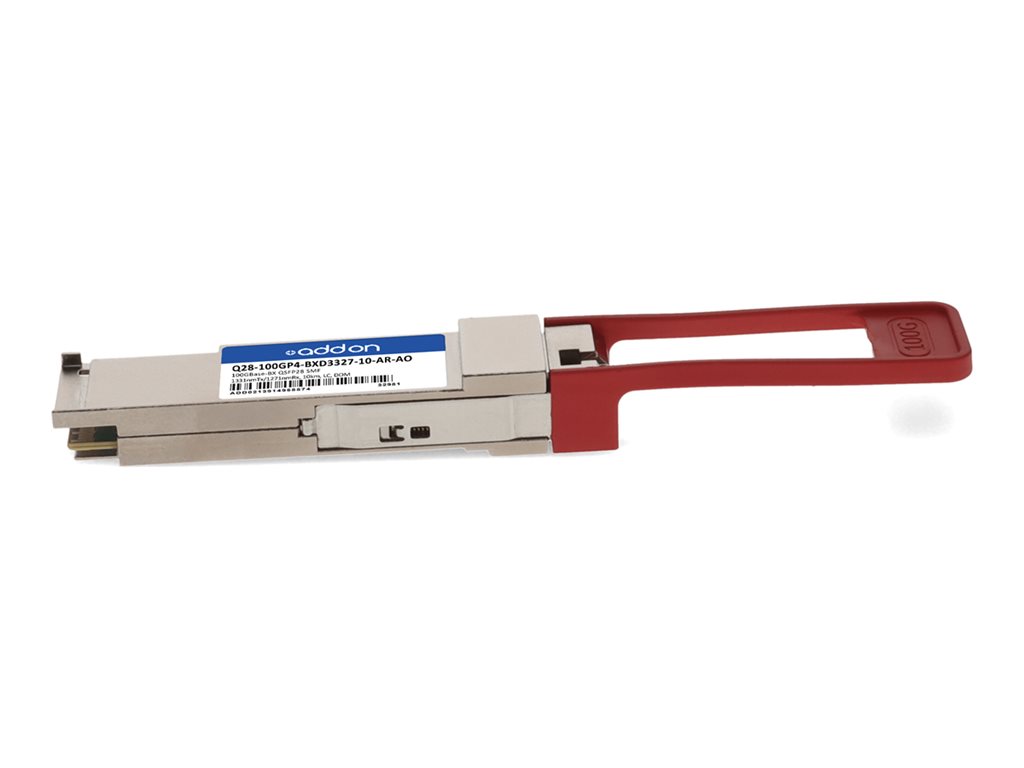

QSFP28 transceiver module (equivalent to: Arista Networks Q28-100GP4-BXD3327-10-AR) - 100GbE - 100GBase-BX LR1 - LC single-mode - up to 6.2 miles - 1331 (TX) / 1271 (RX) nm - TAA Compliant - for P/N: FG-TRAN-QSFP+SR-BIDI-AO, Q28-100GP4-BXU2733-10-I-AO
| Main Specifications | |
|---|---|
| Product Description | AddOn - QSFP28 transceiver module - 100GbE - TAA Compliant |
| Device Type | QSFP28 transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Cabling Type | 100GBase-BX LR1 |
| Data Transfer Rate | 100 Gbps |
| Optical Wave Length | 1331 (TX) / 1271 (RX) nm |
| Data Link Protocol | 100GbE |
| Max Transfer Distance | 6.2 miles |
| OEM Manufacturer Equivalent Part Number | Arista Networks Q28-100GP4-BXD3327-10-AR |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| Designed For | P/N: FG-TRAN-QSFP+SR-BIDI-AO, Q28-100GP4-BXU2733-10-I-AO |
| General | |
| Device Type | QSFP28 transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 100GBase-BX LR1 - LC single-mode |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| OEM Manufacturer Equivalent Part Number | Arista Networks Q28-100GP4-BXD3327-10-AR |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 100GBase-BX LR1 |
| Data Link Protocol | 100GbE |
| Data Transfer Rate | 100 Gbps |
| Optical Wave Length | 1331 (TX) / 1271 (RX) nm |
| Line Coding Format | PAM4 |
| Max Transfer Distance | 6.2 miles |
| Features | Digital Optical Monitoring (DOM) support, metal housing, ESD Protector, Single Lambda, hot-pluggable, low EMI |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 2.8 in |
| Shipping Depth | 4.8 in |
| Shipping Height | 1.2 in |
| Shipping Weight | 6.38 oz |
| Compatibility Information | |
| Designed For | P/N: FG-TRAN-QSFP+SR-BIDI-AO, Q28-100GP4-BXU2733-10-I-AO |
