Transmitter and receiver - video/audio/USB/serial/network extender - 10GbE - 10GBase-T - up to 328 ft
| Main Specifications | |
|---|---|

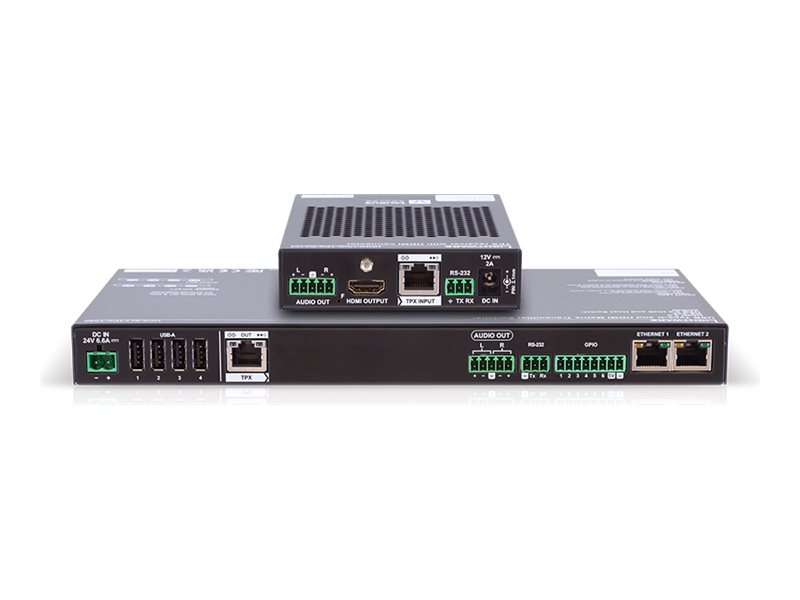

| Product Description | Lightware Taurus TPX TPX-2x1-TX20-RX107 - transmitter and receiver - video/audio/USB/serial/network extender - 10GbE |
| Device Type | Video/audio/USB/serial/network extender |
| Form Factor | External |
| Cabling Type | 10GBase-T |
| Data Transfer Rate | 10 Gbps |
| Data Link Protocol | 10GbE |
| Max Transfer Distance | 328 ft |
| Power Over Ethernet (PoE) | PoE |
| Power | AC 100-240 V |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio/USB/serial/network extender |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10GBase-T (transmitter output) - RJ-45 female ¦ 1 x USB 2.0 (transmitter) - Type C ¦ 1 x HDMI input (transmitter) - 19 pin HDMI Type A ¦ 1 x USB host (transmitter) - Type C ¦ 1 x peripheral (transmitter) - USB type A ¦ 1 x audio (transmitter) - 5 pin Phoenix ¦ 1 x control (transmitter) - RJ-45 ¦ 1 x RS-232 (transmitter) - 3 pin Phoenix ¦ 1 x GPIO (transmitter) - 8 pin Phoenix ¦ 1 x Ethernet 10GBase-T (receiver input) - RJ-45 ¦ 1 x HDMI output (receiver) - 19 pin HDMI Type A ¦ 2 x peripheral (receiver) - USB type A ¦ 1 x audio (receiver) - 5 pin Phoenix ¦ 2 x control (receiver) - RJ-45 ¦ 1 x RS-232 (receiver) - 3 pin Phoenix ¦ 1 x OCS - 3 pin Phoenix |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | UKCA, EN 62368-1:2014, EN 55035:2017, EN 63000:2018, IEC 61000-3-3:2013+AMD1:2017, EN 55032:2015 |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-T |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 10 Gbps |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Max Transfer Distance | 328 ft |
| Features | Steel housing, uncompressed audio, YCbCr 4:4:4, YCbCr 4:2:0, RGB 4:4:4, passive cooling, reclocking |
| Compliant Standards | HDCP 2.2, HDCP 1.4, IEEE 802.3af, HDCP 2.3 |
| Power | |
| Power Over Ethernet (PoE) | PoE |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 24 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Transmitter: 10.7 in x 5.5 in x 1 in ¦ Receiver: 6 in x 4.1 in x 1 in |
