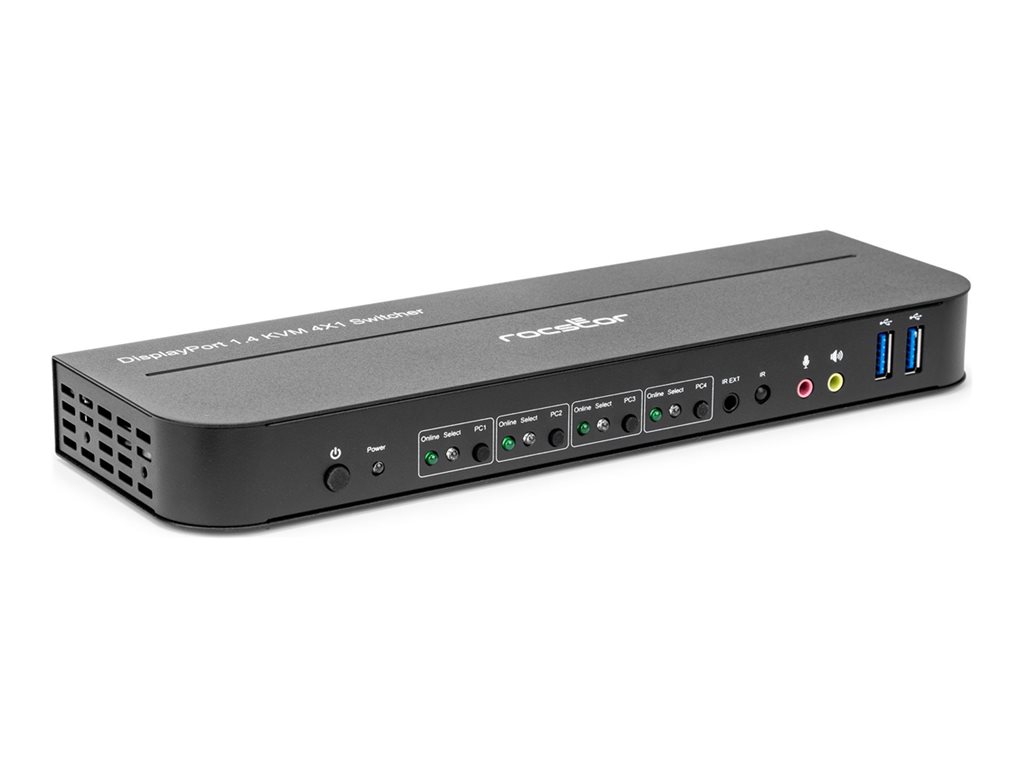

KVM switch - DisplayPort 1.4, USB 3.0, 4x1, 4K@60Hz, HDR, HDCP 2.2, IR, USB sharing - 4 x KVM / audio / USB - desktop
| Main Specifications | |
|---|---|
| Product Description | Rocstor SolidKVM SK04 - KVM switch - DisplayPort 1.4, USB 3.0, 4x1, 4K@60Hz, HDR, HDCP 2.2, IR, USB sharing - 4 ports |
| Device Type | KVM switch - 4 ports |
| Subtype | KVM |
| Ports | 4 x KVM / audio / USB |
| Performance | Bandwidth per port: 6 Gbps |
| Features | 4K resolution support, YCbCr 4:2:0, YCbCr 4:2:2, YCbCr 4:4:4, RGB 4:4:4, 12-bit Deep Color support, 3D support, metal housing, HDR support |
| Compliant Standards | USB 3.0, HDCP 2.2, HDCP 1.4 |
| Power | 5 V 3 A |
| Dimensions (WxDxH) | 9.6 in x 3 in x 1 in |
| Weight | 17.83 oz |
| System Requirements | Microsoft Windows 10 / 11, Linux, Apple MacOS |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | KVM switch - 4 ports |
| Enclosure Type | Desktop |
| Subtype | KVM |
| Ports | 4 x KVM / audio / USB |
| Keyboard / Mouse Interface | USB |
| Performance | Bandwidth per port: 6 Gbps |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Features | 4K resolution support, YCbCr 4:2:0, YCbCr 4:2:2, YCbCr 4:4:4, RGB 4:4:4, 12-bit Deep Color support, 3D support, metal housing, HDR support |
| Compliant Standards | USB 3.0, HDCP 2.2, HDCP 1.4 |
| Status Indicators | Online, select |
| Expansion / Connectivity | |
| Interfaces | 2 x USB 2.0 console ¦ 1 x DisplayPort console ¦ 1 x HDMI console ¦ 2 x microphone mini-jack console ¦ 2 x audio output mini-jack console ¦ 4 x USB 3.0 Type B ¦ 4 x DisplayPort ¦ 4 x microphone ¦ 4 x audio output ¦ 2 x USB 3.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | IR remote, bracket kit, power adapter, IR extender |
| Cables Included | 4 x USB-B to USB-A cable |
| Compliant Standards | DisplayPort 1.4, FCC, WEEE |
| Power | |
| Power Device | External power adapter |
| Voltage Required | 5 V |
| Electric Current Required | 3 A |
| Software / System Requirements | |
| OS Required | Microsoft Windows 10 / 11, Linux, Apple MacOS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 85% RH (non-condensing) |
| Min Storage Temperature | 14 °F |
| Max Storage Temperature | 176 °F |
| Humidity Range Storage | 5 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 9.6 in |
| Depth | 3 in |
| Height | 1 in |
| Weight | 17.83 oz |
