Docking station - USB4 / Thunderbolt 4 - 2 x HDMI - 1GbE, 2.5GbE - 180 Watt
| Main Specifications | |
|---|---|
| Product Description | Startech USB4 Docking Station, USB-C 40Gbps, Dual Video HDMI, Up to 2x 4K 60Hz 4:4:4 (RGB) or 2x 4K 120Hz 4:2:2, Multi-Monitor Dock, 6x USB, 2.5GbE, 100W PD - docking station - USB4 / Thunderbolt 4 - 2 x HDMI - 1GbE, 2.5GbE |
| Product Type | Docking station |
| Docking Interface | USB4 / Thunderbolt 4 |
| Video Interfaces | 2 x HDMI |
| Dimensions (WxDxH) | 8.3 in x 3.7 in x 1.3 in |
| Weight | 4.89 oz |
| Color | Space gray |
| Networking | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Power | Power adapter 165 Watt AC 100-240 V 180 Watt Power Provided (DC 20 V) |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Docking station |
| Width | 8.3 in |
| Depth | 3.7 in |
| Height | 1.3 in |
| Weight | 4.89 oz |
| Enclosure Color | Space gray |
| Expansion / Connectivity | |
| Interfaces | 2 x display / video - HDMI - 19 pin HDMI Type A ¦ 2 x USB-A 3.2 Gen2 - 9 pin USB Type A ¦ 2 x USB-A 3.2 Gen1 - 9 pin USB Type A ¦ 1 x USB-C 3.2 Gen 1 - 24 pin USB-C ¦ 1 x USB-C 3.2 Gen 2 with Power Delivery (20 W) - 24 pin USB-C ¦ 1 x network - 10Base-T/100Base-T/1000Base-T/2500Base-T - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

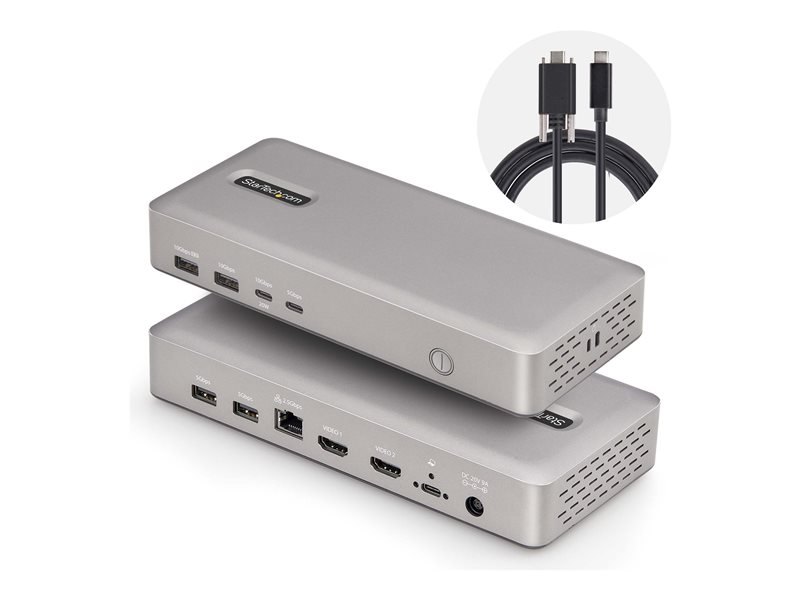

| Cables Included | 1 x USB4 cable - external - 3.3 ft |
| Features | Wake on LAN, LED indicator, UASP transfer protocol, full duplex support, 100W power delivery, 4:4:4 chroma subsampling, up to 40Gbps data transfer |

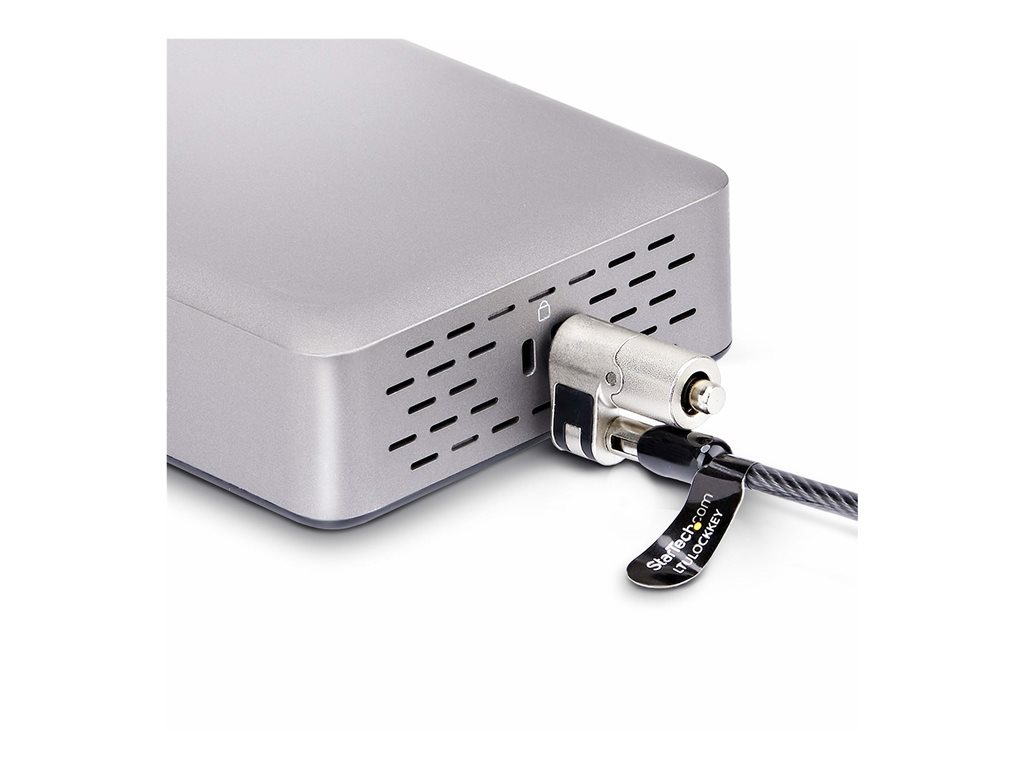

| Security Slot Type | Kensington nano security slot / Kensington security slot |
| Compliant Standards | BC1.2, USB Battery Charging Specification Rev. 1.2, USB Power Delivery 3.0 |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Compliant Standards | USB 3.2 Gen 2, USB 3.2 Gen 1, USB4 |
| Power | |
| Power Device | Power adapter |
| Power Consumption (Max) | 165 Watt |
| Voltage Required | AC 100-240 V |
| Power Provided | 180 Watt |
| Voltage Provided | DC 20 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Video | |
| Max Resolution Details | 3840 x 2160, 4K - 120 Hz (Dual Display) ¦ 7680 x 4320 - 60 Hz (Single Display) |
| System Requirements | |
| OS Required | Google Chrome OS, Microsoft Windows 7 / 8 / 10 / 11 |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 9.1 in |
| Shipping Height | 3.5 in |
| Shipping Weight | 2.65 lbs |
