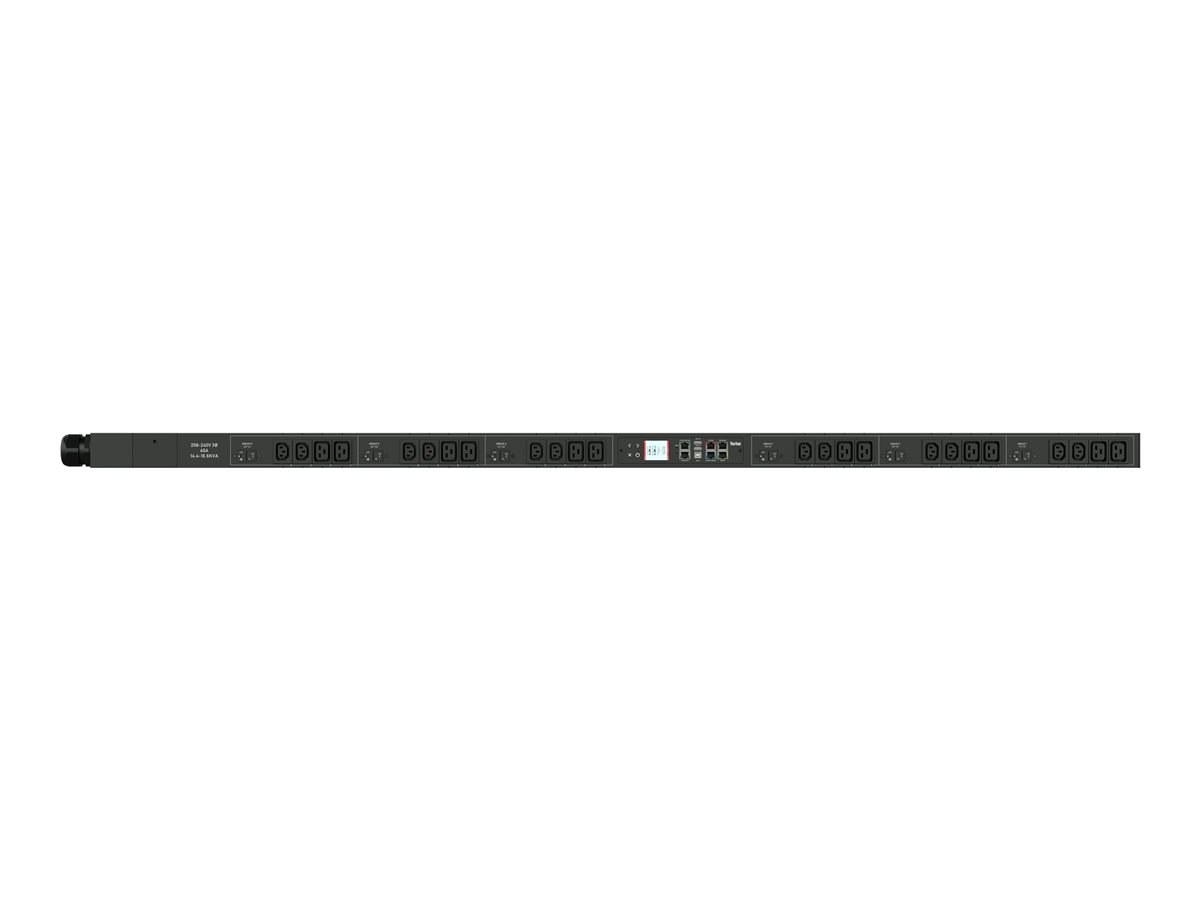

Power distribution unit (rack-mountable) - AC 208 V - 14400 VA - 3-phase delta - Ethernet 10/100, USB, Ethernet 10/100/1000 - input: CS8365C - output connectors: 24 (12 x IEC 60320 C13, 12 x IEC 60320 C19) - 0U - black powder coat
| Main Specifications | |
|---|---|
| Product Description | Raritan PX3-4547V-V2 - power distribution unit - 14400 VA |
| Device Type | Power distribution unit - rack-mountable |
| Rack Size | 0U |
| Input Wiring | 3-phase delta |
| Input Voltage | AC 208 V |
| Power Capacity | 14400 VA |
| Power Capacity Details | 14.4 kVA at 208 V, 16.6 kVA at 240 V |
| Input Connectors | Power CS8365C |
| Output connectors | 12 x power IEC 60320 C13 - 208 V 12 A ¦ 12 x power IEC 60320 C19 - 208 V 16 A |
| Networking | Ethernet 10/100, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
| Color | Black powder coat |
| Dimensions (WxDxH) | 2.3 in x 3.1 in x 70.1 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Color | Black powder coat |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN - RJ-45 ¦ 1 x LAN - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B ¦ 1 x sensor - RJ-45 ¦ 1 x monitoring - RJ-45 ¦ 1 x management - RJ-45 ¦ 1 x cascading - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 10 ft |
| Features | Voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, metering per input line, 6 x LEGBX66-20 overload protection |
| Compliant Standards | ICES-003, FCC, RoHS, FCC Part 15 A |
| Networking | |
| Remote Management Interface | Ethernet 10/100, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
| Environmental Parameters | |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 85% |
| Power Device | |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 208 - 240 V |
| Input Wiring | 3-phase delta |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power CS8365C |
| Power Output Connectors Details | 12 x power IEC 60320 C13 - 208 V 12 A ¦ 12 x power IEC 60320 C19 - 208 V 16 A |
| Max Electric Current | 50 A |
| Power Capacity | 14400 VA |
| Power Capacity Details | 14.4 kVA at 208 V, 16.6 kVA at 240 V |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 2.3 in |
| Depth | 3.1 in |
| Height | 70.1 in |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 14.5 in |
| Shipping Depth | 5.3 in |
| Shipping Height | 82.8 in |
