Matrix processor
| Main Specifications | |
|---|---|

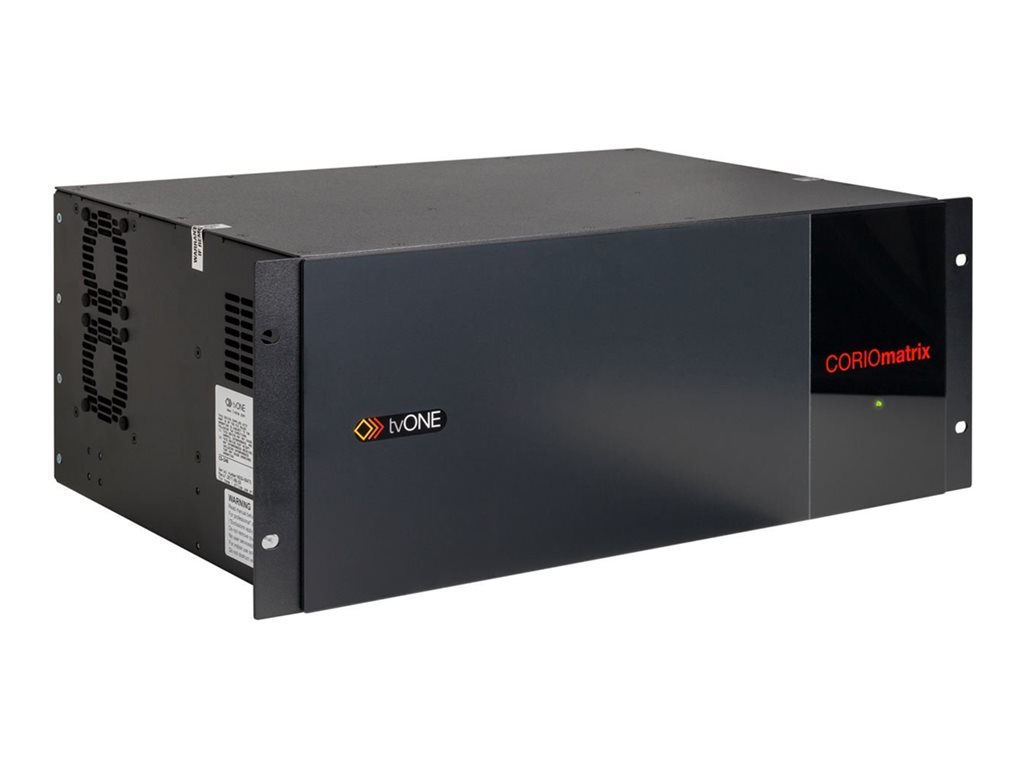

| Product Description | TV One CORIOmatrix C3-340 matrix processor |
| Type | Matrix processor |
| Supported Video Standards | NTSC, PAL |
| Dimensions (WxDxH) | 19 in - 13.1 in - 7 in |
| Weight | 33.07 lbs |
| Manufacturer Warranty | 5 years |
| General | |
| Type | Matrix processor |
| Width | 19 in |
| Depth | 13.1 in |
| Height | 7 in |
| Weight | 33.07 lbs |
| Manufacturer Warranty | |
| Warranty | 5 years |
| Power | |
| Voltage Required | AC 110-240 V |
| Power Consumption | 300 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Studio & Production Equipment | |
| Supported Video Standards | NTSC, PAL |
| Features | 4U rack-mountable, 4K resolution support, HDCP compliant, format conversion, aspect ratio conversion, hot-swappable, 16 input/output module slots |
