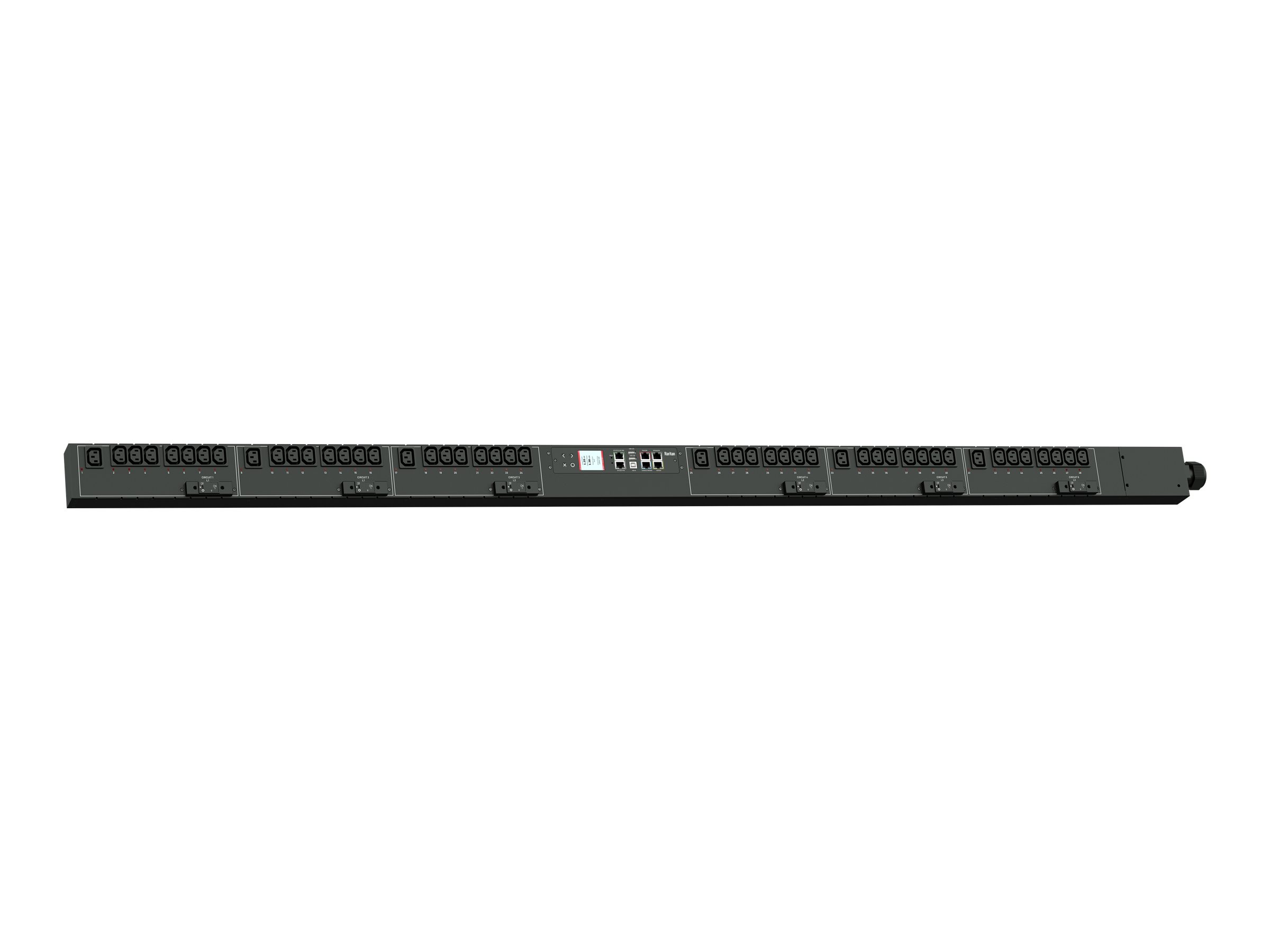

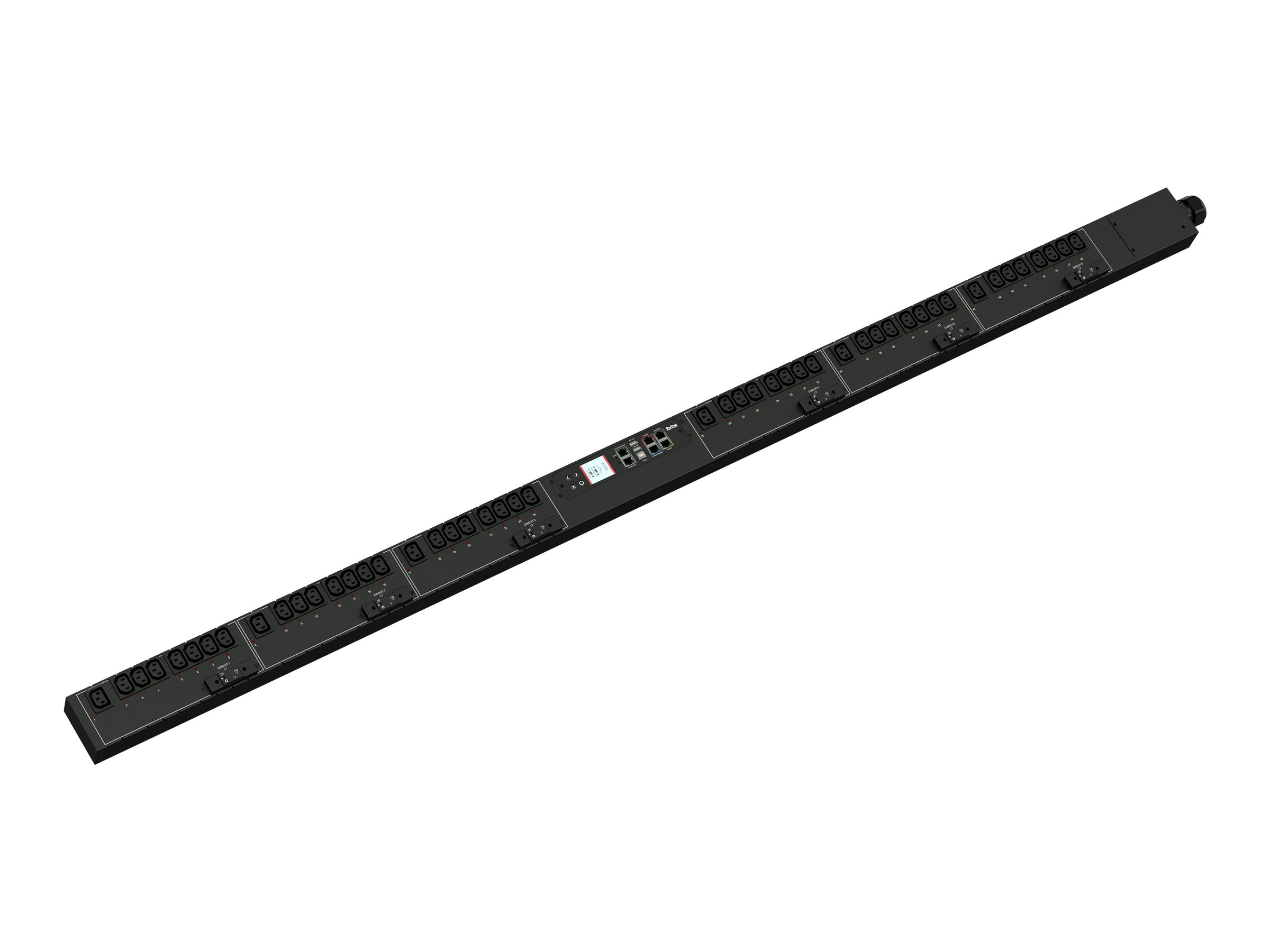

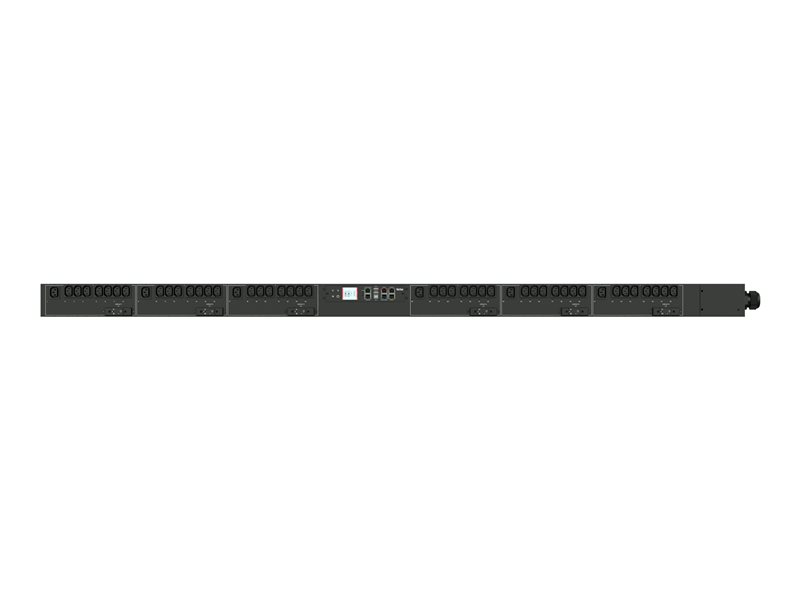

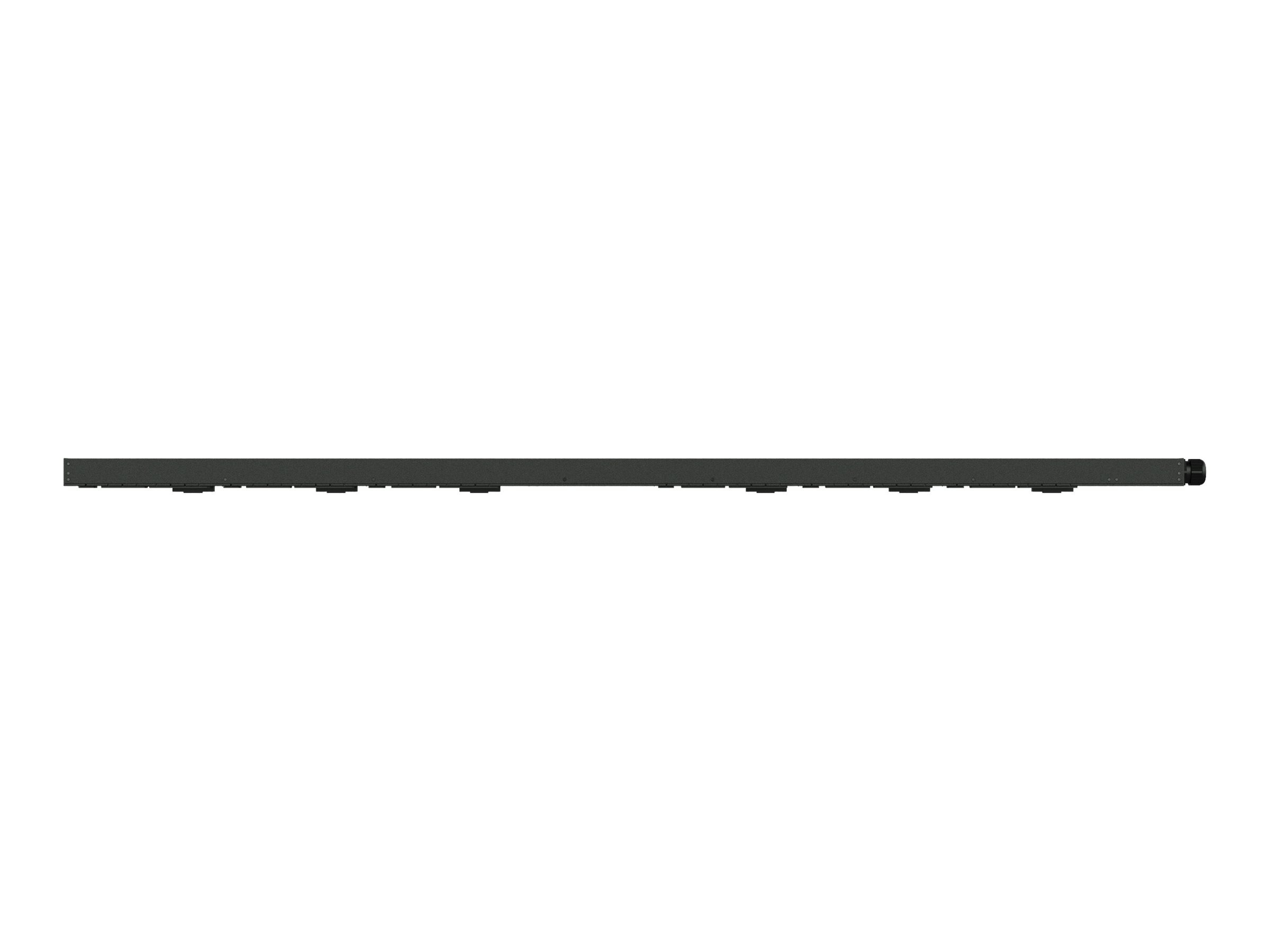

Power distribution unit (rack-mountable) - AC 415 V - 17300 VA - 3-phase WYE (star) - Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 - input: terminal block - output connectors: 48 (48 x IEC 60320 C13) - 0U - black powder coat
| Main Specifications | |
|---|---|
| Product Description | Raritan PX intelligent PX3-5918XU-N2O1 - power distribution unit - 17300 VA |
| Device Type | Power distribution unit - rack-mountable |
| Rack Size | 0U |
| Input Wiring | 3-phase WYE (star) |
| Input Voltage | AC 415 V |
| Output Voltage | AC 208 V |
| Power Capacity | 17300 VA |
| Power Capacity Details | 15 kVA at 360 V, 17.3 kVA at 415 V |
| Input Connectors | 1 x terminal block |
| Output connectors | 48 x power IEC 60320 C13 - 208 V 12 A |
| Networking | Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
| Color | Black powder coat |
| Dimensions (WxDxH) | 3.5 in x 1.9 in x 72.1 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Color | Black powder coat |
| Expansion / Connectivity | |
| Interfaces | 1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x cascading - RJ-45 ¦ 1 x management (RS-232) - RJ-45 ¦ 1 x sensor ¦ 1 x monitoring - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Features | Vertical orientation, LCD display, voltage monitoring, current meter, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle, replaceable controller, cord retention outlet |
| Compliant Standards | UL, ICES-003, RoHS, FCC Part 15 A, cULus |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
| Environmental Parameters | |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 85% |
| Power Device | |
| Input Voltage | AC 415 V |
| Input Voltage Range | AC 360 - 415 V |
| Input Wiring | 3-phase WYE (star) |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x terminal block |
| Power Output Connectors Details | 48 x power IEC 60320 C13 - 208 V 12 A |
| Output Voltage | AC 208 V |
| Max Electric Current | 24 A |
| Power Capacity | 17300 VA |
| Power Capacity Details | 15 kVA at 360 V, 17.3 kVA at 415 V |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 3.5 in |
| Depth | 1.9 in |
| Height | 72.1 in |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 8.5 in |
| Shipping Depth | 8.1 in |
| Shipping Height | 81.2 in |
