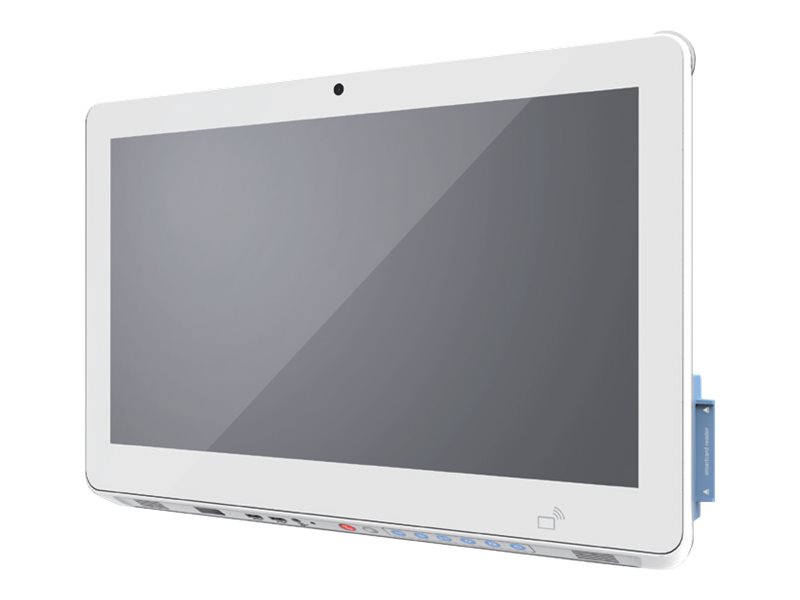

All-in-one - Pentium N4200 / up to 2.5 GHz - RAM 4 GB - SSD 64 GB - Gigabit Ethernet - 802.11a/b/g/n/ac, Bluetooth 4.1 - Win 10 IoT 64-bit - monitor: LED 15.6" 1920 x 1080 (Full HD) touchscreen
| Main Specifications | |
|---|---|
| Product Description | Advantech HIT-W153 - all-in-one - AI Ready - Pentium N4200 - 4 GB - SSD 64 GB - LED 15.6" |
| Type | Personal computer - all-in-one AI Ready |
| Processor | Intel Pentium N4200 (up to 2.5 GHz, (Quad-Core) |
| Cache Memory | 2 MB |
| Cache Per Processor | 2 MB |
| RAM | 4 GB (installed) / 8 GB (max) - DDR3L SDRAM |
| Hard Drive | SSD 64 GB - M.2 2242 |
| Optical Storage | No optical drive |
| Monitor | 15.6" - LED - 1920 x 1080 (Full HD) - 16:9 - touchscreen |
| Camera | Yes |
| Audio Output | Stereo |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Bluetooth 4.1 |
| Power | AC 120/230 V (50/60 Hz) |
| OS Provided | Windows 10 IoT 64-bit Edition |
| Dimensions (WxDxH) | 15.8 in x 1.7 in x 10.7 in |
| Weight | 7.05 lbs |
| General | |
| Type | Personal computer - AI Ready |
| Product Form Factor | All-in-one |
| Built-in Devices | Stereo speakers, SmartCard reader, RFID/NFC reader |
| Expansion / Connectivity | |
| Slots | 1 (total) / 1 (free) x Mini PCIe ¦ M.2 Card |
| Interfaces | 1 x USB 3.0 - Type A ¦ 2 x USB 2.0 - Type A ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x headphones - mini-jack ¦ 1 x headphones/microphone - RJ-12 ¦ 1 x DIO |
| Miscellaneous | |
| Included Accessories | ITE adapter |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Compliant Standards | UL, CB, CCC, FCC, RoHS, cULus, EN 60601-1, IEC 62368 |
| RAM | |
| Installed Size | 4 GB (installed) / 8 GB (max) |
| Technology | DDR3L SDRAM |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.1 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Cache Memory | |
| Installed Size | 2 MB |
| Cache Per Processor | 2 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | LED |
| Touchscreen | Yes |
| Diagonal Size | 15.6" |
| Native Resolution | 1920 x 1080 (Full HD) |
| Widescreen Display | Yes |
| Image Aspect Ratio | 16:9 |
| Image Brightness | 425 cd/m² |
| Image Contrast Ratio | 800:1 |
| Monitor Features | Projected Capacitive Touch (P-CAP) technology |
| Audio Output | |
| Sound Output Mode | Stereo |
| Speakers Included | 2 x right / left channel |
| Operating System / Software | |
| OS Provided | Windows 10 IoT 64-bit Edition |
| Hard Drive | |
| Type | SSD - M.2 2242 |
| Capacity | 1 x 64 GB |
| Camera | |
| Camera | Yes |
| Resolution (MP) | 5 Megapixel |
| Audio Input | |
| Type | Microphone |
| Dimensions & Weight | |
| Width | 15.8 in |
| Depth | 1.7 in |
| Height | 10.7 in |
| Weight | 7.05 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 10.36 lbs |
| Processor / Chipset | |
| CPU | Intel Pentium N4200 |
| Max Turbo Speed | 2.5 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
