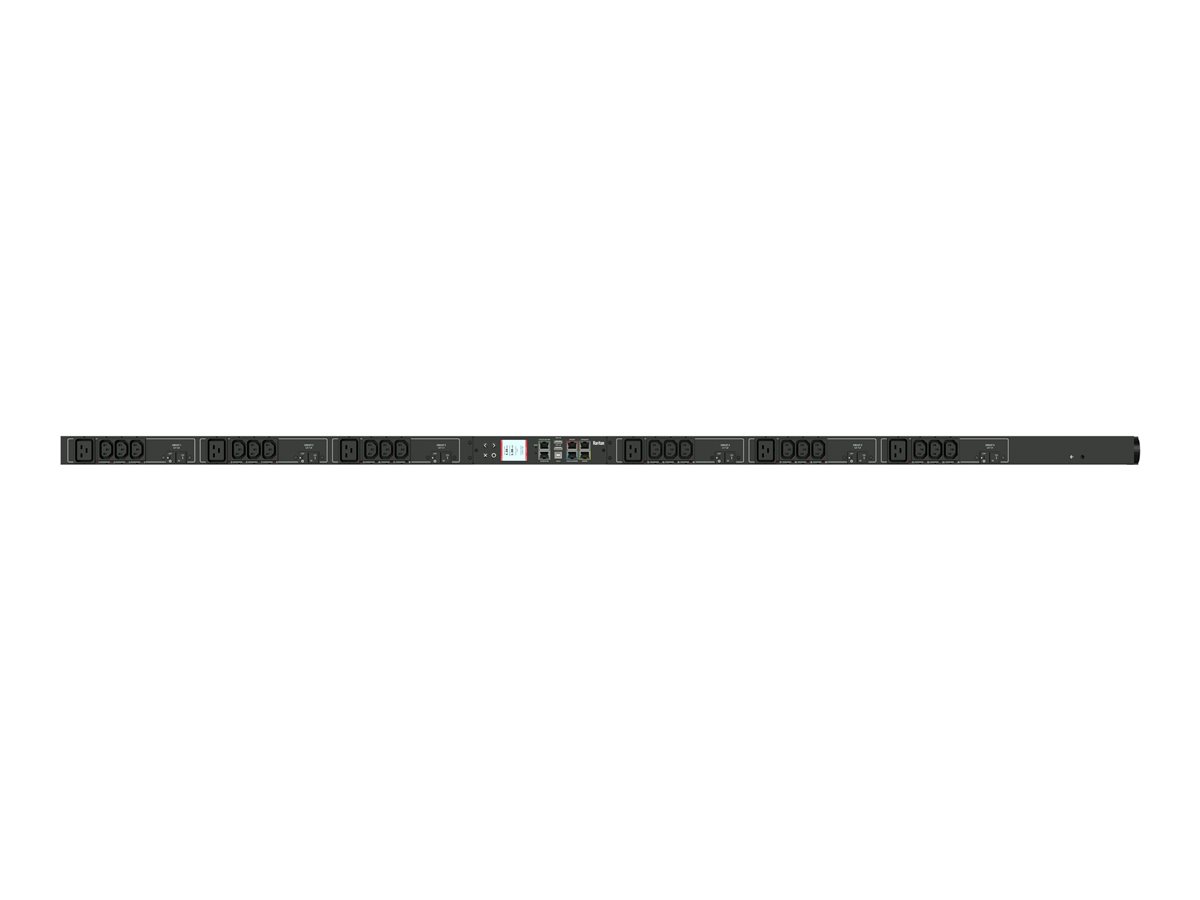

Power distribution unit (rack-mountable) - AC 208 V - 17300 VA - 3-phase delta - Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 - input: IEC 60309 3P+E - output connectors: 24 (6 x IEC 60320 C19, 18 x IEC 60320 C13) - 0U - 10 ft cord - black powder coat
| Main Specifications | |
|---|---|
| Product Description | Raritan PX3-5529U-N2V2 - power distribution unit - 17300 VA |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Rack Size | 0U |
| Input Wiring | 3-phase delta |
| Input Voltage | AC 208 V |
| Output Voltage | AC 240 V |
| Power Capacity | 17300 VA |
| Power Capacity Details | 17.3 kVA at 208 V, 20 kVA at 240 V |
| Input Connectors | 1 x power IEC 60309 3P+E |
| Output connectors | 18 x power IEC 60320 C13 - 208 V 12 A ¦ 6 x power IEC 60320 C19 - 208 V 16 A |
| Networking | Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
| Color | Black powder coat |
| Dimensions (WxDxH) | 1.8 in x 3.9 in x 67 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 10 ft |
| Color | Black powder coat |
| Expansion / Connectivity | |
| Interfaces | 1 x sensor - RJ-45 ¦ 1 x modem - RJ-45 ¦ 2 x monitoring - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (Gigabit Ethernet) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable - integrated - 10 ft |
| Features | Vertical orientation, tool-less button mount, LCD display, voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, watertight plug, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle, replaceable controller, monitored, top-end feed cord entry, 6 x LEGBX66-20 overload protection, cord retention |
| Compliant Standards | UL, ICES-003, RoHS, FCC Part 15 A, cULus, IP67, IEC 62053-21, ISO 62053-21 |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
| Environmental Parameters | |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 85% |
| Power Device | |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 208 - 240 V |
| Input Wiring | 3-phase delta |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+E |
| Power Output Connectors Details | 18 x power IEC 60320 C13 - 208 V 12 A ¦ 6 x power IEC 60320 C19 - 208 V 16 A |
| Output Voltage | AC 240 V |
| Max Electric Current | 60 A |
| Power Capacity | 17300 VA |
| Power Capacity Details | 17.3 kVA at 208 V, 20 kVA at 240 V |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 1.8 in |
| Depth | 3.9 in |
| Height | 67 in |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 173.4 in |
| Shipping Depth | 162.8 in |
| Shipping Height | 82.2 in |
