Hard drive array - 60 bays (SAS-3) - SAS 12Gb/s (external) - rack-mountable - 4U - for Broadcom HBA 9500-16e; Microchip Adaptec SmartRAID 3200 Series; Toshiba MG09 Series
| Main Specifications | |
|---|---|

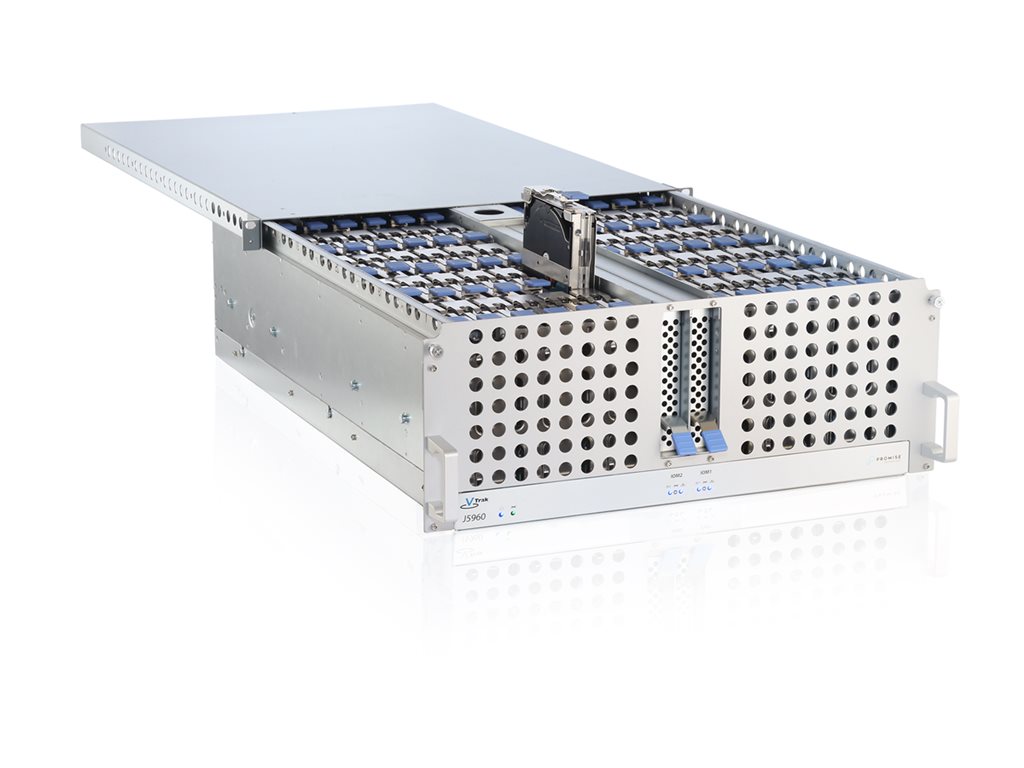

| Product Description | Promise VTrak J5960 - hard drive array |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 4U |
| Interface | SAS 12Gb/s |
| Installed Devices / Modules Qty | 60 (max) |
| Supported Drives | SAS-3 |
| Storage Controller | SAS-3 (SATA 6Gb/s / SAS 12Gb/s) - RAID JBOD |
| Hard Drive | No HDD SAS 12Gb/s - hot-swap |
| Power | AC 100-127/200-240 V |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.5 in x 26.2 in x 7 in |
| Weight | 154.32 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | 3-year warranty |
| Designed For | Broadcom HBA 9500-16e Tri-Mode; Microchip Adaptec SmartRAID 3200 Series 3254U-16e/e; Toshiba MG09 Series MG09SCA18TE |
| General | |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 4U |
| Expansion / Connectivity | |

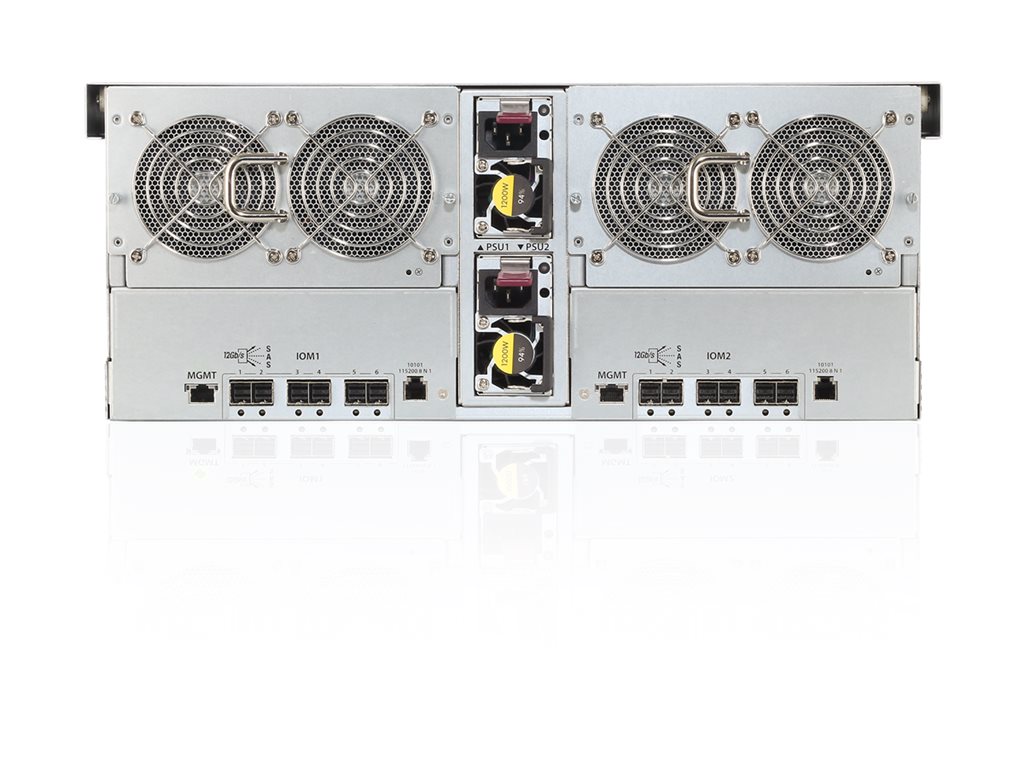

| Interfaces | 6 x SAS 12Gb/s - Mini SAS HD (SFF-8644) ¦ 1 x serial (management) - RJ-11 ¦ 1 x Ethernet 1000 (management) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years - on-site ¦ Technical support - phone consulting - 3 years ¦ Product info support - e-mail consulting - 3 years |
| Miscellaneous | |
| Features | Hot-swappable fans |
| Compliant Standards | FCC, CB, RoHS, WEEE |
| Storage | |
| HDD Array External Interface | SAS 12Gb/s |
| Power | |
| Power Device | 2 x internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-127/200-240 V |
| Power Provided | 1200 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 80% |
| Storage Controller | |
| Type | SAS-3 (SAS-3) |
| Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| RAID Level | JBOD |
| Hard Drive | |
| Type | No HDD - hot-swap |
| Interface Type | SAS 12Gb/s |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 26.2 in |
| Height | 7 in |
| Weight | 154.32 lbs |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| Compatibility Information | |
| Designed For | Broadcom HBA 9500-16e Tri-Mode ¦ Microchip Adaptec SmartRAID 3200 Series 3254U-16e/e ¦ Toshiba MG09 Series MG09SCA18TE |
| Chassis | |
| Supported Devices / Modules Qty | 60 |
| Supported Drives | SAS-3 |
