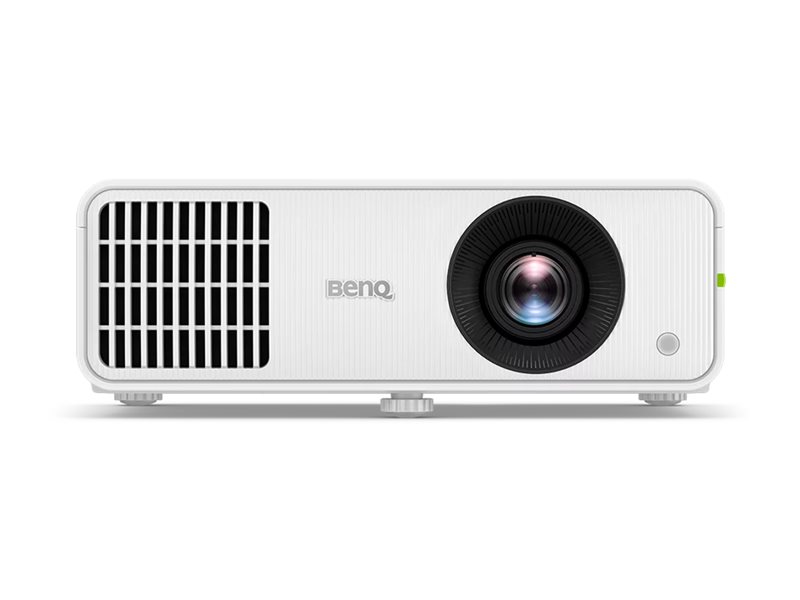

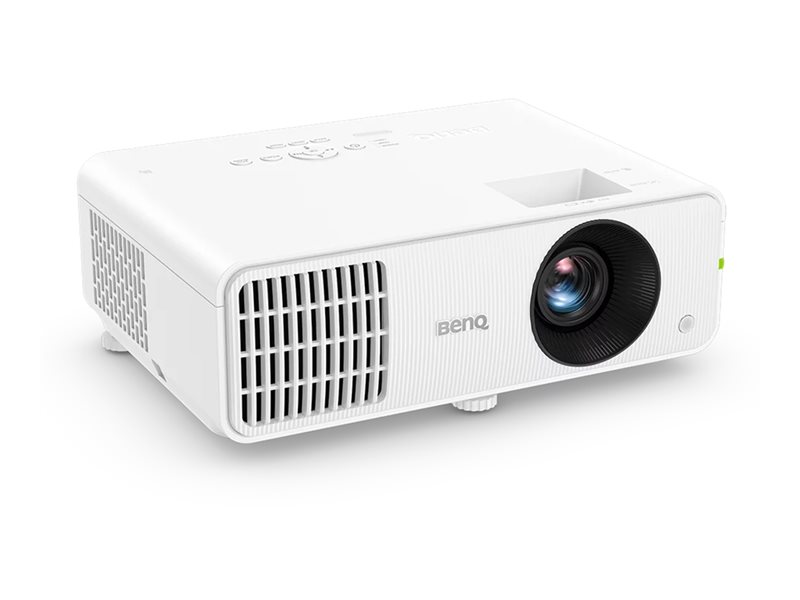

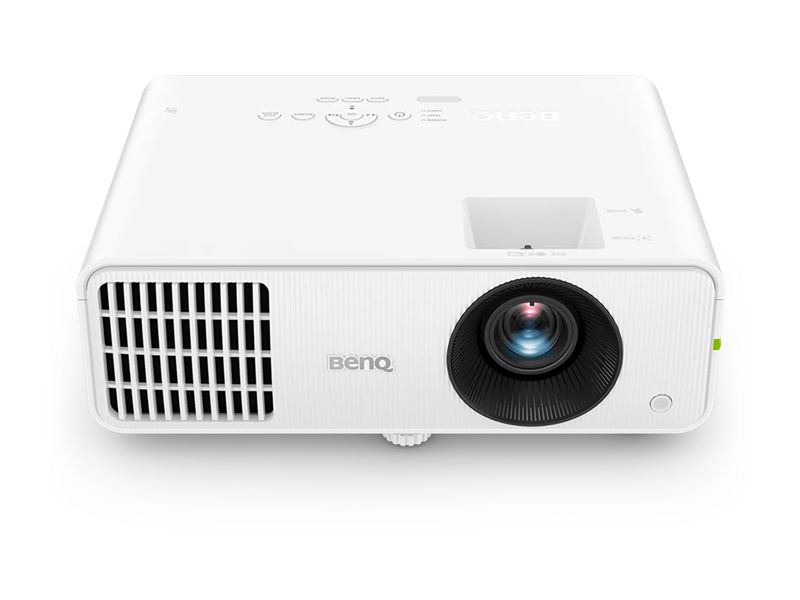

DLP projector - laser - 3D - 4000 ANSI lumens - Full HD (1920 x 1080) - 16:9 - 1080p - IEEE 802.11ac wireless / Bluetooth 4.2 / Miracast / AirPlay / BenQ InstaShare
| Main Specifications | |
|---|---|
| Product Description | BenQ EH700 - DLP projector - 3D - IEEE 802.11ac wireless / Bluetooth 4.2 / Miracast / AirPlay / BenQ InstaShare |
| Device Type | DLP projector - 1080p |
| 3D Capable | Yes (3D glasses sold separately) |
| Smart Capable | Yes |
| Microdisplay | DMD Chip |
| Brightness | 4000 ANSI lumens |
| Contrast Ratio | 3000000:1 |
| Resolution | Full HD (1920 x 1080) |
| Native Aspect Ratio | 16:9 |
| Color Support | 1.07 billion colors (30-bit) |
| Lamp Type | Laser |
| Lamp Life Cycle | Up to 20000 hours - normal mode ¦ Up to 30000 hours - economic mode ¦ Up to 20000 hours - smart economic mode |
| Video Input | IEEE 802.11ac wireless / Bluetooth 4.2 / Miracast / AirPlay / BenQ InstaShare |
| Speakers | Speaker(s) - integrated |
| Power | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 200 Watt |
| Dimensions (WxDxH) | 12 in x 9.5 in x 4.4 in |
| Weight | 6.61 lbs |
| General | |
| Device Type | DLP projector - 1080p |
| 3D Capable | Yes (3D glasses sold separately) |
| Smart Capable | Yes |
| Networking | Bluetooth 4.0, 802.11a/b/g/n/ac |
| Internet Streaming Services | Google Cast |
| Expansion / Connectivity | |

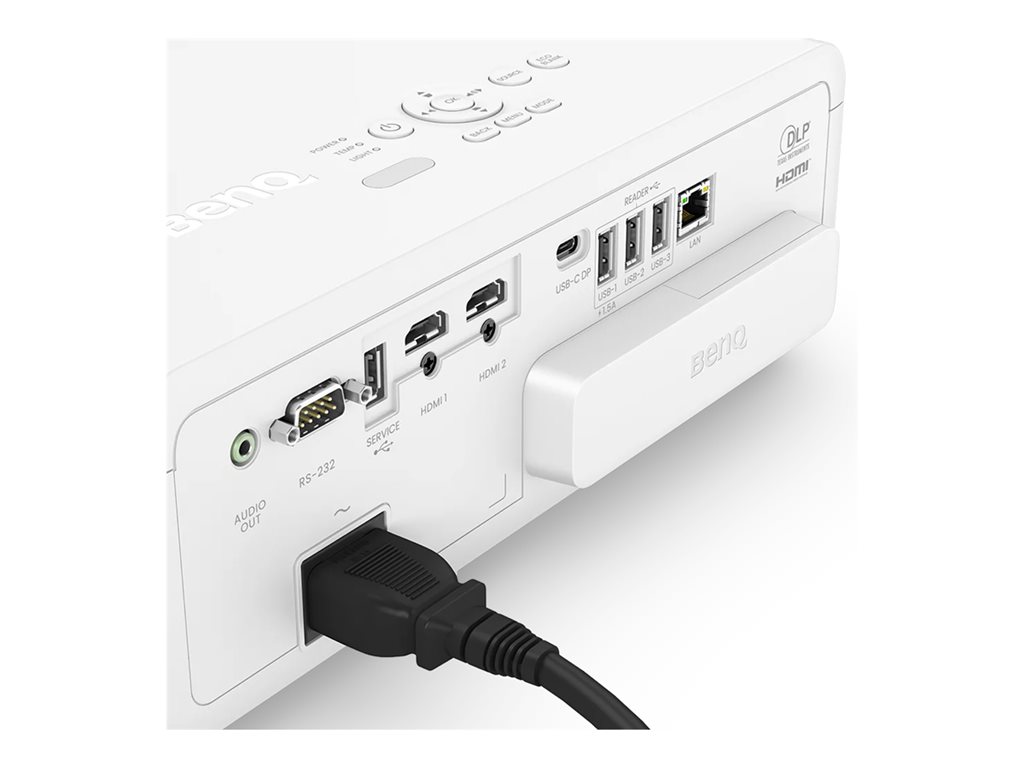

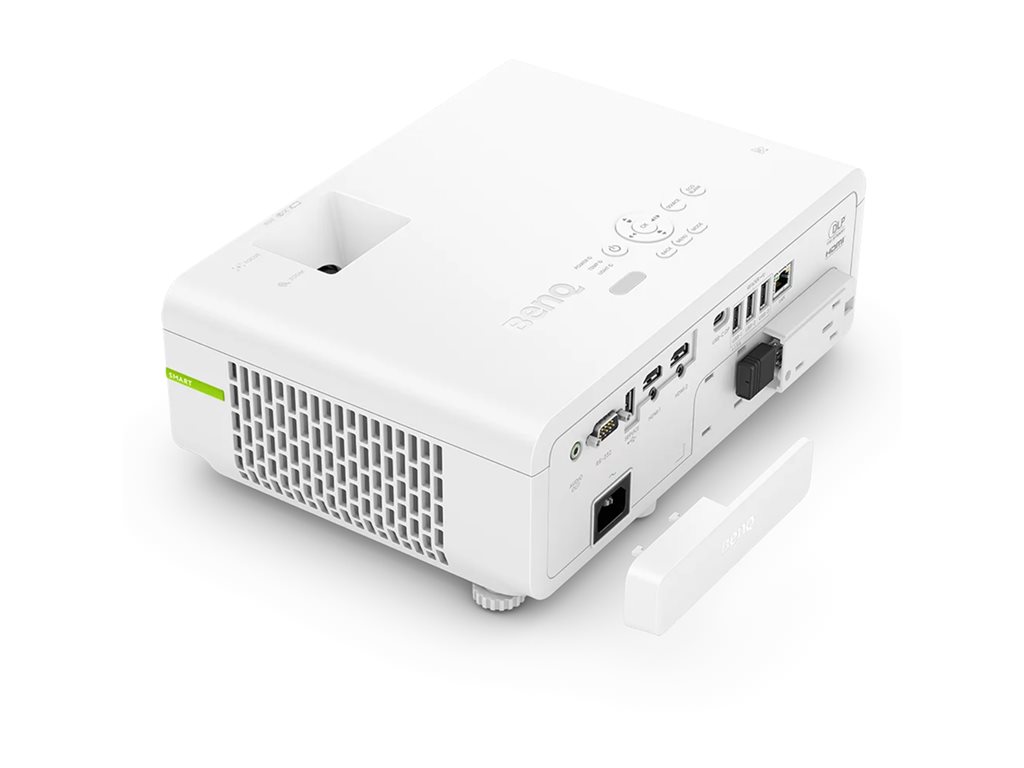

| Interfaces | 1 x audio line-out - mini-phone 3.5 mm ¦ 2 x HDMI - 19 pin HDMI Type A ¦ 1 x USB-C/DisplayPort input - 24 pin USB-C ¦ 1 x serial RS-232 input - 9 pin D-Sub (DB-9) ¦ 3 x USB 2.0 - 4 pin USB Type A ¦ 1 x USB (service) - 4 pin USB Type A (management) ¦ 1 x network - RJ-45 (management) ¦ 2 x remote control input |
| Miscellaneous | |
| Included Accessories | USB wireless network adapter, remote control, 2 x AAA batteries |
| Security Features | Security lock slot (cable lock sold separately), security bar |
| Security Slot Type | Kensington security slot |
| Compliant Standards | HDCP 2.2 |
| Power | |
| Power Source | AC |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 200 Watt |
| Power Consumption Stand by | 2 Watt |
| Software / System Requirements | |
| Software Included | Mozilla Firefox, TeamViewer Meeting, WPS Office, InstaShare 2, BenQ AMS Cloud Service |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Sound Emission | 34 dB |
| Sound Emission (Economic Mode) | 28 dB |
| Video Input | |
| Video Interfaces | HDMI, USB-C |
| LAN and Wireless Image Transferring Protocols | IEEE 802.11b, IEEE 802.11g, IEEE 802.11a, IEEE 802.11n, Bluetooth 4.2, IEEE 802.11ac, Miracast, AirPlay |
| Dimensions & Weight | |
| Width | 12 in |
| Depth | 9.5 in |
| Height | 4.4 in |
| Weight | 6.61 lbs |
| Media Player | |
| Operating System | Android OS 9.0 |
| Projector | |
| Microdisplay | DMD Chip |
| Brightness | 4000 ANSI lumens |
| Contrast Ratio | 3000000:1 |
| Image Size | 100 in - 150 in |
| Throw Ratio | 1.15 - 1.5:1 |
| Resolution | Full HD - Full HD (1920 x 1080) (native) / 3840 x 2160 (resized) |
| Native Aspect Ratio | 16:9 |
| Color Support | 1.07 billion colors (30-bit) |
| Max Sync Rate (V x H) | 120 Hz x 135 kHz |
| Lamp Type | Laser |
| Lamp Life Cycle | Up to 20000 hours - normal mode ¦ Up to 30000 hours - economic mode ¦ Up to 20000 hours - smart economic mode |
| Controls & Adjustments | Keystone correction |
| Features | Screen Share, App Casting, auto update via OTA, Auto Vertical Keystone, corner fit, 4-way split screen, Bright Mode, HDR10 compatibility, Hybrid Log-Gamma (HLG), Presentation Mode, Spreadsheet mode, sRGB Mode, User mode, Video Conference mode, 8.3 ms input lag |
| Lens | |
| Focus Type | Manual |
| Lens Aperture | F/2.59-2.87 |
| Zoom Factor | 1.3x |
| Keystone Correction Direction | Vertical, horizontal |
| Vertical Keystone Correction | -40 / +40 |
| Horizontal Keystone Correction | -40 / +40 |
| Speakers | |
| Type | Integrated |
| Sound Output Mode | Mono |
| Output Power / Channel | 10 Watt |
| Speakers | 1 x mixed channel |
