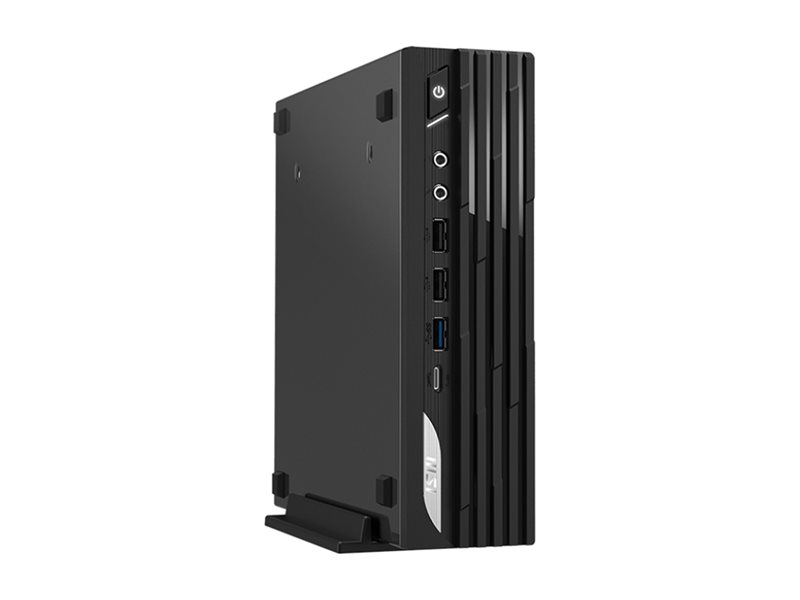

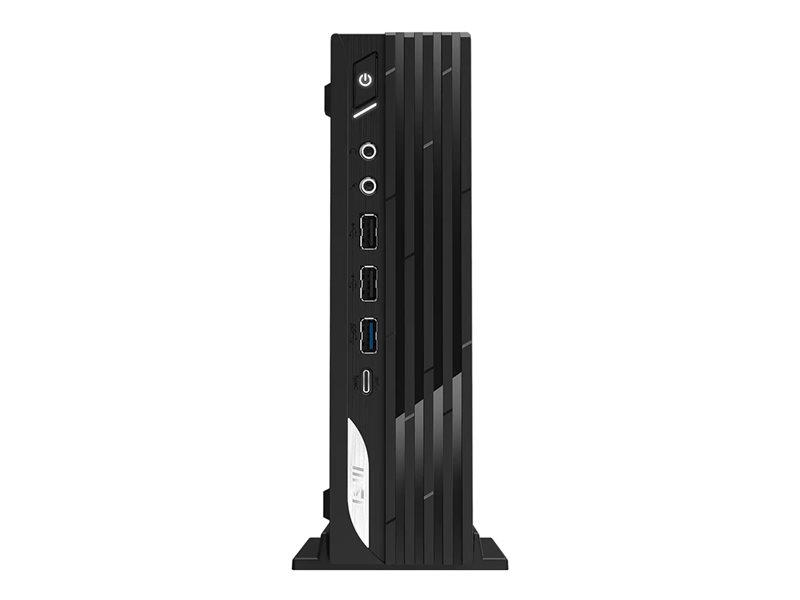

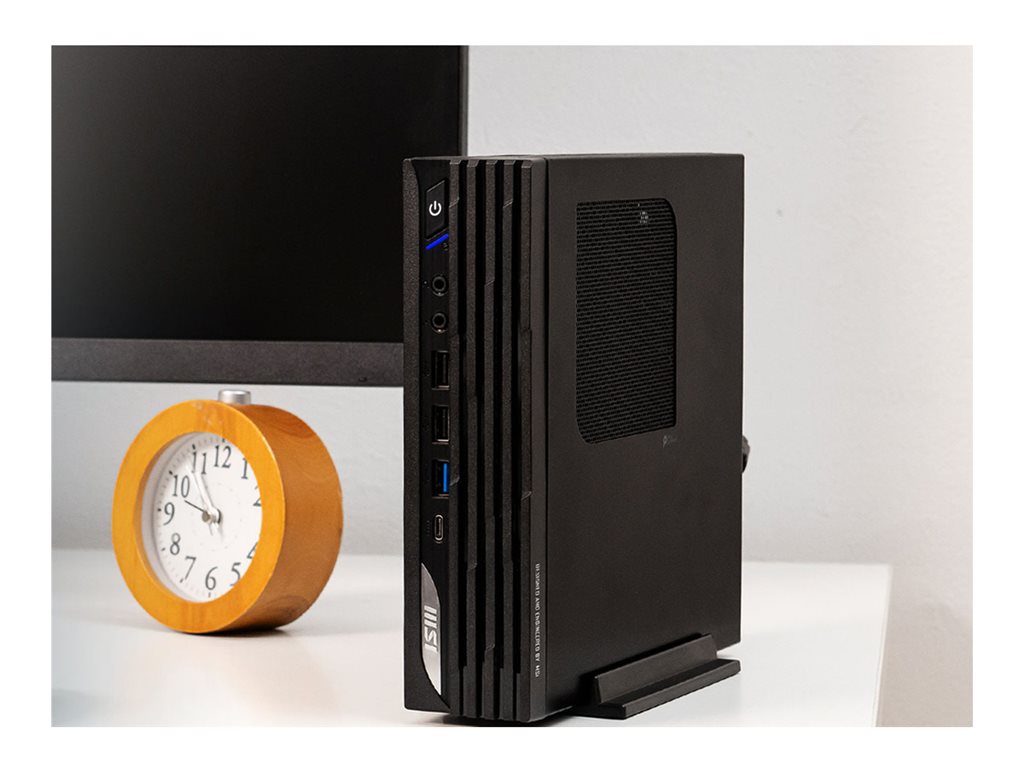

SFF Core i7 i7-14700 / up to 5.4 GHz - RAM 32 GB - SSD 1 TB - NVMe - UHD Graphics 770 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: none - black
| Main Specifications | |
|---|---|
| Product Description | MSI PRO DP21 14MQ 003UST - SFF Core i7 i7-14700 2.1 GHz - 32 GB - SSD 1 TB |
| Type | Personal computer - SFF |
| Processor | Intel Core i7 (14th Gen) i7-14700 / 2.1 GHz (up to 5.4 GHz, (20-core) |
| Cache Memory | 33 MB |
| Cache Per Processor | 33 MB |
| RAM | 32 GB DDR5 SDRAM |
| Storage Controller | SATA |
| Hard Drive | SSD 1 TB - PCI Express - M.2 - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics 770 |
| Audio Output | 5.1 channel surround |
| Networking | 1GbE, 802.11a, Wi-Fi 5, Wi-Fi 6E, 802.11b/g/n, Bluetooth 5.3 |
| OS Provided | Windows 11 Pro |
| Color | Black |

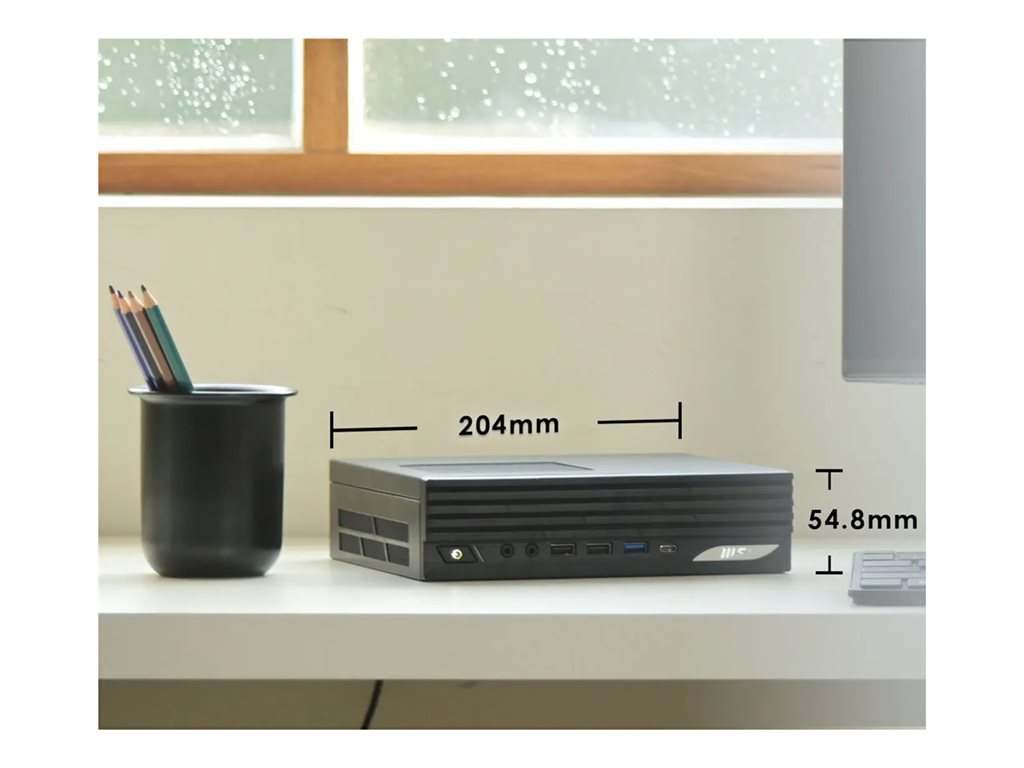

| Dimensions (WxDxH) | 8 in x 8.2 in x 2.2 in |
| Weight | 2.8 lbs |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | Personal computer |
| Product Form Factor | SFF |
| Built-in Devices | Air cooling solution |
| Color | Black |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x internal 2.5" |
| Slots | 1 (total) / 0 (free) x M.2 Card |

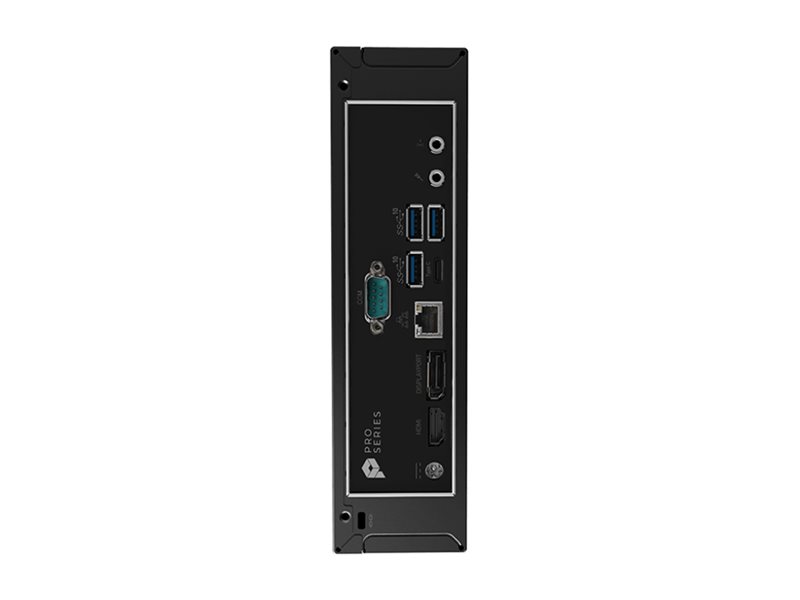

| Interfaces | 1 x headphones (1 in front) ¦ 2 x microphone (1 front, 1 rear) ¦ 4 x USB 2.0 ¦ 2 x USB 3.2 Gen 1 (2 rear) ¦ 1 x HDMI output ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x serial (1 rear) ¦ 1 x audio line-out (1 rear) ¦ 1 x DisplayPort 1.4 ¦ 1 x USB 3.2 Gen 2 (1 rear) ¦ 1 x USB-C 3.2 Gen 2 (1 rear) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| VESA Mounting Interface | 100 x 100 mm |
| RAM | |
| Installed Size | 32 GB |
| Technology | DDR5 SDRAM |
| Form Factor | DIMM 288-pin |
| Slots | 2 (total) / 0 (empty) |
| Configuration Features | 2 x 16 GB |
| Networking | |
| Ethernet Controller | Intel I219-LM |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6E AX 211 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11g, IEEE 802.11n, IEEE 802.11b, Bluetooth 5.3 |
| Power | |
| Device Type | Power adapter |
| Power Provided | 120 Watt |
| Storage Controller | |
| Type | 1 x SATA |
| Cache Memory | |
| Installed Size | 33 MB |
| Cache Per Processor | 33 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 770 |
| Video Interfaces | HDMI, DisplayPort |
| Audio Output | |
| Sound Output Mode | 5.1 channel surround |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 11 Pro |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 1 TB |
| Interface Type | PCI Express |
| Features | NVM Express (NVMe) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 8 in |
| Depth | 8.2 in |
| Height | 2.2 in |
| Weight | 2.8 lbs |
| Processor / Chipset | |
| CPU | Intel Core i7 (14th Gen) i7-14700 |
| Clock Speed | 2.1 GHz (P-core) / 1.5 GHz (E-core) |
| Max Turbo Speed | 5.4 GHz (P-core) / 4.2 GHz (E-core) |
| Number of Cores | 20-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Chipset Type | Intel Q670 |
