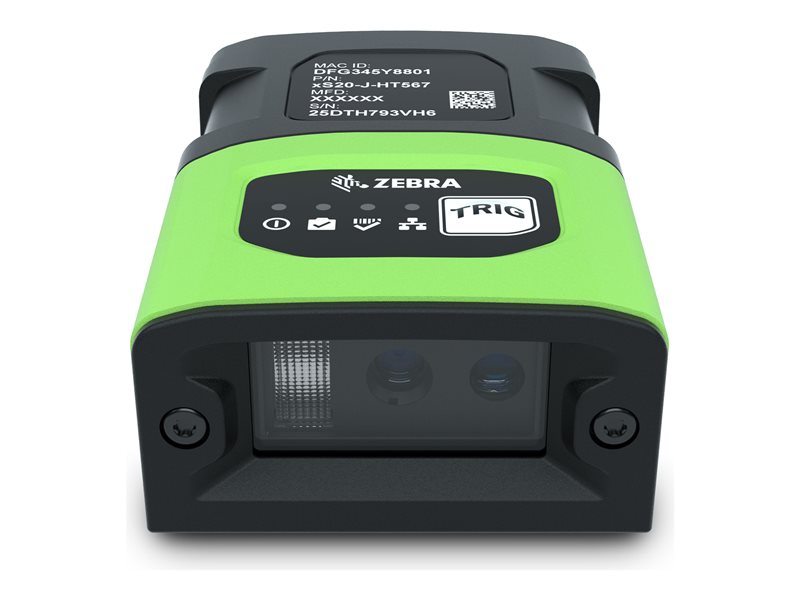

Barcode scanner - desktop - SR - 2D imager - 60 frames / sec - decoded - RS-232, Gigabit Ethernet
| Main Specifications | |
|---|---|
| Product Description | Zebra FS20 - barcode scanner |
| Type | Barcode scanner - desktop - RS-232, Gigabit Ethernet - decoded |
| Color | Industrial green |
| Localization | Worldwide |
| Minimum Bar Width | 5 mil |
| Scan Engine Focus Range | Standard Range (SR) |
| Scan Element Type | 2D imager - white LED |
| Sensor Resolution | 1280 x 800 |
| Scan Speed | 60 frames / sec |
| Connectivity Technology | Wired |
| Power | DC 10-30 V |
| Dimensions (WxDxH) | 2.1 in x 3.7 in x 1.1 in |
| Weight | 6.88 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Type | Barcode scanner - desktop |
| Color | Industrial green |
| Localization | Worldwide |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet (PoE) ¦ 1 x RS-232 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | IP67, IP65, EN 50581:2012, IEC 62471:2006, EN 62471:2008, EN 61000-3-3:2013, EN 60068-2-27, EN 60068-2-6, EN 61000-3-2:2014 Class A, 2011/65/EU, EN 55035:2017, EN/IEC 63000:2018, IEC 62368-1 Second Edition, 47 CFR Part 15 Class B, EN 55032:2015/A11:2020, ICES-003 issue 7 Class B, 2014/30/EU, 2014/35/EU |
| Power | |
| Power Device | Power adapter / PoE |
| Voltage | DC 10-30 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 2.1 in |
| Depth | 3.7 in |
| Height | 1.1 in |
| Weight | 6.88 oz |
| Barcode | |
| Interface Type | RS-232, Gigabit Ethernet |
| Minimum Bar Width | 5 mil |
| Scan Engine Focus Range | Standard Range (SR) |
| Scan Element Type | 2D imager - white LED |
| Sensor Resolution | 1280 x 800 |
| Frame Rate | 60 frames / sec |
| Max Working Distance | 24 in |
| Decode Capability | Code 93, Code 39, QR code, MaxiCode, MicroPDF417, Codabar, Code 128, PDF417, MSI-Plessey, Data Matrix, Micro QR code, DotCode, OCR, Aztec, UPC/EAN extension, I 2 of 5 |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Programmable, rugged, autofocus, amber LED illumination, LED indicators |
