Barcode scanner - companion - SR - 2D imager - decoded - Bluetooth 5.0 LE, USB-C, Lightning
| Main Specifications | |
|---|---|

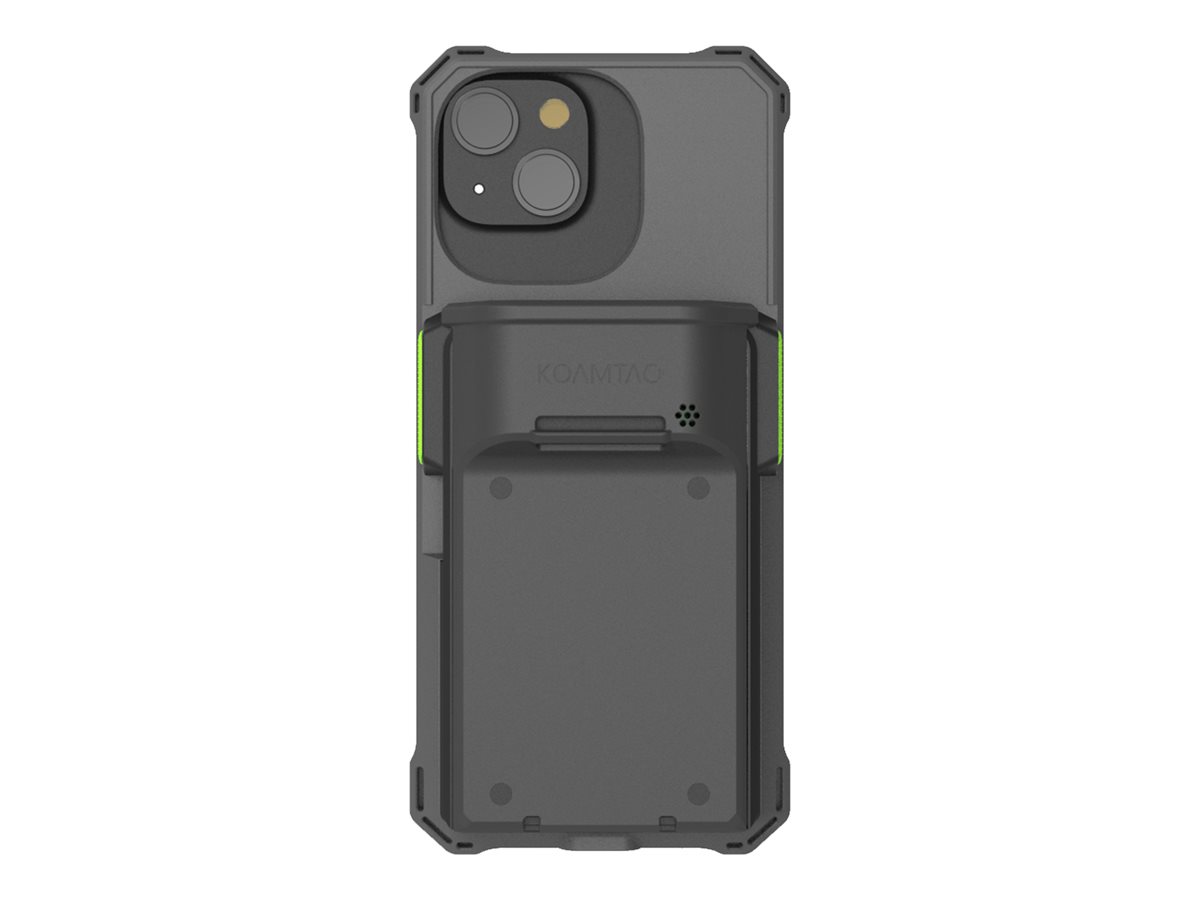

| Product Description | KoamTac KDC1000 ST SmartSled - barcode scanner |
| Type | Barcode scanner - companion - Bluetooth 5.0 LE, USB-C, Lightning - decoded |
| Minimum Bar Width | 20 mil |
| Scan Field Width | 0.19 in - 29.13 in |
| Scan Engine Focus Range | Standard Range (SR) |
| Scan Element Type | 2D imager |
| Connectivity Technology | Wireless, wired |
| Wireless Connectivity | Bluetooth 5.0 LE |
| System Requirements | Android, Apple iOS, Apple MacOS, Windows |
| Dimensions (WxDxH) | 3 in x 0.8 in x 4.3 in |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Type | Barcode scanner - companion |
| Memory | |
| RAM | 256 KB |
| Expansion / Connectivity | |
| Interfaces | 1 x USB - Type C ¦ 1 x Lightning |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Protective case |
| Compliant Standards | R&TTE, RED, FCC, KC, J-MIC, VCCI, SRRC, RoHS, IEC 60825-1:2007, IEC 60825-1:2014, Class II, IP65, USB Power Delivery 3.0 |
| Networking | |
| Wireless Connectivity | Bluetooth 5.0 LE |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 5 ft |
| System Requirements | |
| OS Required | Android, Apple iOS, Apple MacOS, Windows |
| Dimensions & Weight | |
| Width | 3 in |
| Depth | 0.8 in |
| Height | 4.3 in |
| Barcode | |
| Interface Type | Bluetooth 5.0 LE, USB-C, Lightning |
| Minimum Bar Width | 20 mil |
| Scan Field Width | 0.19 in - 29.13 in |
| Scan Engine Focus Range | Standard Range (SR) |
| Scan Element Type | 2D imager |
| Decode Capability | 1D, Code 11, Code 32, Code 39, Code 93, Code 128, EAN-8, EAN-13, GS1 DataBar Composites, Interleaved 2 of 5, Matrix 2 of 5, MSI, Plessey, PosiCode, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, Industrial 2 of 5, Straight 2 of 5, TLC39, Telepen, Trioptic, UPC-A, UPC-E0, UPC-E1, Aztec code, Aztec Runes, Codablock F, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, Hanxin Code, Postnet, PLANET, British Post, Canadian Post, Kix (Netherlands) Post, Australian Post, Japanese Post, China Post, Korea Post, OCR-A, OCR-B, MICR E-13B, SEMI, Codabar, 2D, Passport MRZ, Postal Code, IATA 2 of 5 |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless, wired |
| Features | Dustproof, waterproof, rugged |
