Barcode scanner - companion - MR - 2D imager - decoded - Lightning
| Main Specifications | |
|---|---|

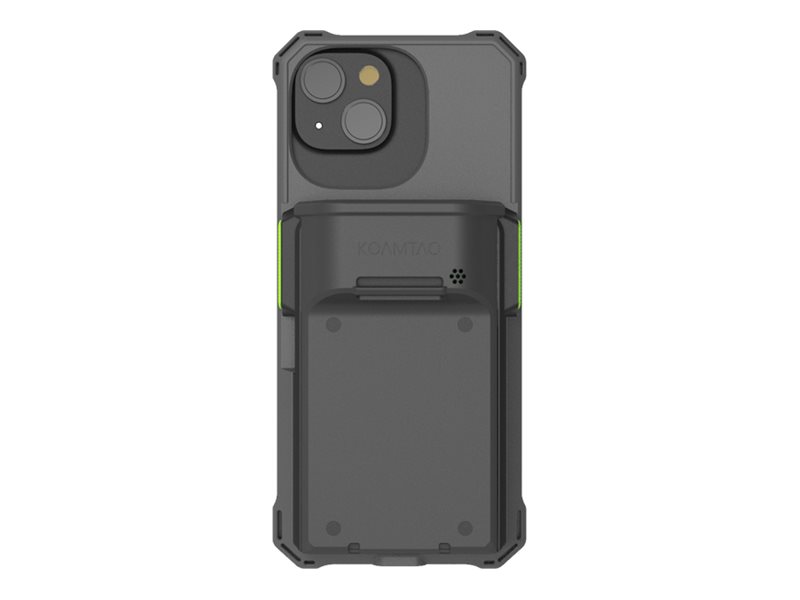

| Product Description | KoamTac KDC1000 MR SmartSled - barcode scanner |
| Type | Barcode scanner - companion - Lightning - decoded |
| Minimum Bar Width | 20 mil |
| Scan Field Width | 3.35 in - 59.06 in |
| Scan Engine Focus Range | Medium Range (MR) |
| Scan Element Type | 2D imager |
| Connectivity Technology | Wired |
| Wireless Connectivity | NFC, Bluetooth 5.0 LE |
| Battery | 1 x lithium ion |
| System Requirements | Apple iOS |
| Dimensions (WxDxH) | 3 in x 0.8 in x 4.3 in |
| General | |
| Type | Barcode scanner - companion |
| Expansion / Connectivity | |
| Interfaces | 1 x Lightning ¦ 1 x docking - pogo pins |
| Miscellaneous | |
| Compliant Standards | IP65, R&TTE, RED, FCC, KC, J-MIC, VCCI, SRRC, RoHS, IEC 60825-1:2007 Class 2, IEC 60825-1:2014 Class 2, USB Power Delivery 3.0 |
| Networking | |
| Wireless Connectivity | NFC, Bluetooth 5.0 LE |
| Power | |
| Battery | 1 x lithium ion |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 5 ft |
| System Requirements | |
| OS Required | Apple iOS |
| Dimensions & Weight | |
| Width | 3 in |
| Depth | 0.8 in |
| Height | 4.3 in |
| Barcode | |
| Interface Type | Lightning |
| Minimum Bar Width | 20 mil |
| Scan Field Width | 3.35 in - 59.06 in |
| Scan Engine Focus Range | Medium Range (MR) |
| Scan Element Type | 2D imager |
| Decode Capability | Code 39, Codabar, Code 11, Code 32, Code 93, Code 128, EAN-13, EAN-8, GS1 DataBar Composites, Interleaved 2 of 5, Matrix 2 of 5, Plessey, PosiCode, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, Straight 2 of 5, IATA 2 of 5, Industrial 2 of 5, TLC39, Telepen, Trioptic Code, UPC-A, UPC-E0, UPC-E1, Aztec code, Aztec Runes, Codablock F, Code 49, Data Matrix, MaxiCode, MicroPDF417, QR code, Han Xin, Postnet, PLANET, British Post, Canadian Post, Kix (Netherlands) Post, Australian Post, Japanese Post, China Post, Korea Post |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| Features | Rugged, Human Interface Device Profile (HID) |
