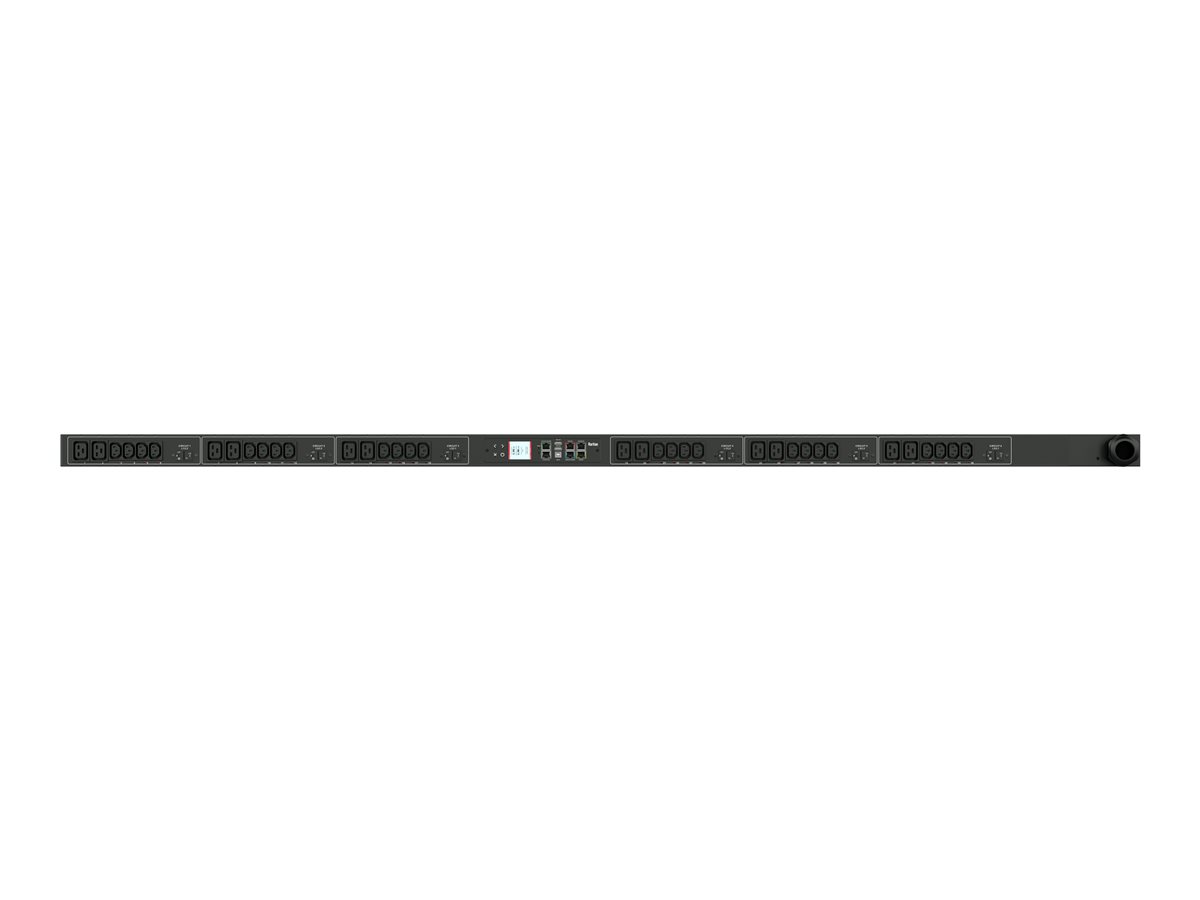

Power distribution unit (rack-mountable) - AC 208 V - 14400 VA - 3-phase delta - Ethernet 10/100/1000, USB, RS-232 - input: CS8365 3P+G - output connectors: 36 (24 x IEC 60320 C13, 12 x IEC 60320 C19) - 0U - 10 ft cord - black powder coat
| Main Specifications | |
|---|---|
| Product Description | Raritan PX3-5749-V2 - power distribution unit - 14400 VA |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Rack Size | 0U |
| Weight | 23.96 lbs |
| Input Wiring | 3-phase delta |
| Input Voltage | AC 208 V |
| Output Voltage | AC 240 V |
| Power Capacity | 14400 VA |
| Power Capacity Details | 14.4 kVA at 208 V, 16.6 kVA at 240 V |
| Input Connectors | 1 x power CS8365 3P+G |
| Output connectors | 24 x power IEC 60320 C13 12 A ¦ 12 x power IEC 60320 C19 16 A |
| Networking | Ethernet 10/100/1000, USB, RS-232 |
| Remote Management Protocol | JSON-RPC, Telnet, SSH, Modbus, TCP/IP, SNMP 3, TFTP, DHCP, CLI, HTTP, HTTPS, SNMP 2, SMTP |
| Color | Black powder coat |
| Dimensions (WxDxH) | 2.3 in x 3.1 in x 78 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 10 ft |
| Color | Black powder coat |
| Expansion / Connectivity | |
| Interfaces | 2 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x sensor ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x console/modem ¦ 1 x expansion ¦ 1 x feature |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable - integrated - 10 ft |
| Features | Vertical orientation, voltage meter, current meter, active power meter, real power meter, energy meter, power factor meter, remote outlet switching, metering per input line, environmental sensor ready, cascadable, LCD display, Auto-Flip Current Display, 16MB SPI Flash, 64MB DDR2 RAM, LED indicators, ARM Cortex A5 CPU, power cable IP44 compliant, Raritan SecureLock Ready, cord retention, 6 x LEGBX66-20 overload protection |
| Compliant Standards | cULus, ISO 62053-21, IEC 62053-21, UL, ICES-003, FCC Part 15 A, RoHS |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, USB, RS-232 |
| Remote Management Protocol | JSON-RPC, Telnet, SSH, Modbus, TCP/IP, SNMP 3, TFTP, DHCP, CLI, HTTP, HTTPS, SNMP 2, SMTP |
| Environmental Parameters | |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 85% |
| Power Device | |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 208 - 240 V |
| Input Wiring | 3-phase delta |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power CS8365 3P+G |
| Power Output Connectors Details | 24 x power IEC 60320 C13 12 A ¦ 12 x power IEC 60320 C19 16 A |
| Output Voltage | AC 240 V |
| Max Electric Current | 40 A |
| Power Capacity | 14400 VA |
| Power Capacity Details | 14.4 kVA at 208 V, 16.6 kVA at 240 V |
| Dimensions & Weight | |
| Width | 2.3 in |
| Depth | 3.1 in |
| Height | 78 in |
| Weight | 23.96 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 14.4 in |
| Shipping Depth | 5.3 in |
| Shipping Height | 83.1 in |
| Shipping Weight | 30.67 lbs |
