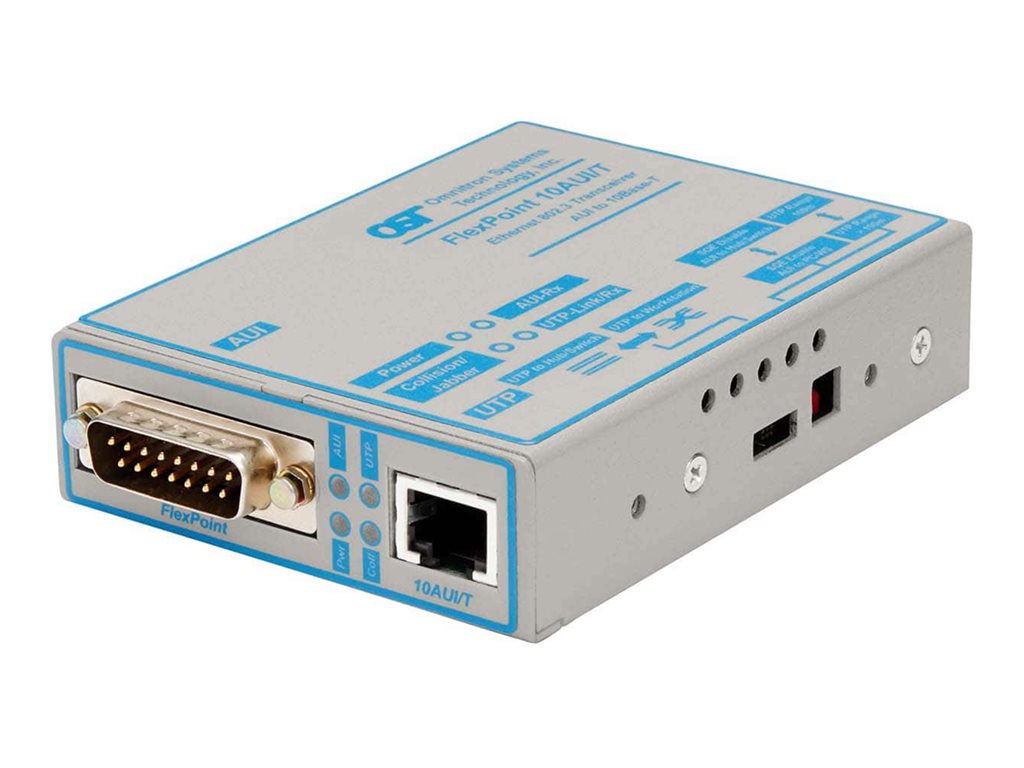

Media converter - 10Mb LAN - 10Base-T - RJ-45 / 15 pin D-Sub (DB-15) - up to 164 ft - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Omnitron - media converter - 10Mb LAN - TAA Compliant |
| Device Type | Media converter - RJ-45 / 15 pin D-Sub (DB-15) |
| Form Factor | External |
| Cabling Type | 10Base-T |
| Data Transfer Rate | 10 Gbps |
| Data Link Protocol | 10Mb LAN |
| Max Transfer Distance | 164 ft |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 3 in x 4 in x 1 in |
| Weight | 6 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Media converter |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T - RJ-45 female ¦ 1 x Ethernet AUI - DB-15 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | UL, cUL, UKCA, EMI FCC Class A, BAA, NDAA |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T |
| Data Link Protocol | 10Mb LAN |
| Data Transfer Rate | 10 Gbps |
| Max Transfer Distance | 164 ft |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Dimensions & Weight | |
| Width | 3 in |
| Depth | 4 in |
| Height | 1 in |
| Weight | 6 oz |
