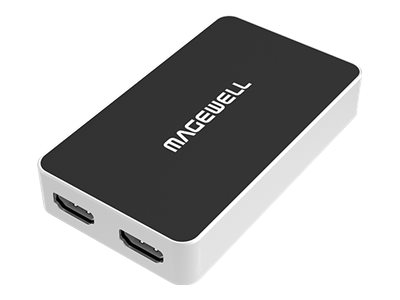

Video capture adapter - USB 3.0
| Main Specifications | |
|---|---|
| Product Description | Magewell USB Capture HDMI Plus - video capture adapter - USB 3.0 |
| Device Type | Video capture adapter |
| Interface Type | USB 3.0 |
| Dimensions (WxDxH) | 2.2 in x 3.9 in x 0.7 in |
| Video Input | HDMI input |
| Video Compression Format | YUV 4:2:0, YUV 4:2:2, YUV 4:4:4 |
| Digital Video Capture Speed | 120 frames per second |
| Digital Video Capture Resolution | 4096 x 2160 |
| Audio Input Support | Standard |
| Features | Cropping function, image flip, image mirror, scaling support, video aspect ratio conversion, video de-interlacing, video frame rate conversion, Microsoft Teams compatible, Skype for Business compatible, Zoom compatible, Google Hangouts compatible, GoToMeeting compatible, LED indicator, OBS compatible, VLC compatible, XSplit compatible |
| OS Required | Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2008 R2 (32/64-bits), Microsoft Windows Server 2012 (32/64-bits), Apple macOS 10.12 or later, Apple MacOS X 10.9 - 10.12, Google Chrome OS, Linux Kernel 2.6.35 or later |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video capture adapter |
| Interface Type | USB 3.0 |
| Width | 2.2 in |
| Depth | 3.9 in |
| Height | 0.7 in |
| Expansion / Connectivity | |
| Interfaces | 2 x audio / video - HDMI input - 19 pin HDMI Type A ¦ 1 x microphone - input - mini-phone stereo 3.5 mm ¦ 1 x headphones - output - mini-phone stereo 3.5 mm |
| Connections | 1 x SuperSpeed USB 3.0 - 9 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x SuperSpeed USB cable - external - 2 ft |
| Device Features | Firmware upgradeable |
| Compliant Standards | IEC 60958 |
| Power | |
| Power Consumption Operational | 4.5 Watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2008 R2 (32/64-bits), Microsoft Windows Server 2012 (32/64-bits), Apple macOS 10.12 or later, Apple MacOS X 10.9 - 10.12, Google Chrome OS, Linux Kernel 2.6.35 or later |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Video | |
| Interface Type | HDMI input |
| Video Compression Format | YUV 4:2:0, YUV 4:2:2, YUV 4:4:4 |
| Digital Video Capture Speed | 120 frames per second |
| Digital Video Capture Resolution | 4096 x 2160 |
| Still Image Capture Resolution | 4096 x 2160 |
| Audio Input Support | Standard |
| Features | Cropping function, image flip, image mirror, scaling support, video aspect ratio conversion, video de-interlacing, video frame rate conversion, Microsoft Teams compatible, Skype for Business compatible, Zoom compatible, Google Hangouts compatible, GoToMeeting compatible, LED indicator, OBS compatible, VLC compatible, XSplit compatible |
