Motherboard - ATX - LGA1700 Socket - W680 Chipset - USB-C 3.2 Gen2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2 - 2 x 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
| Main Specifications | |
|---|---|

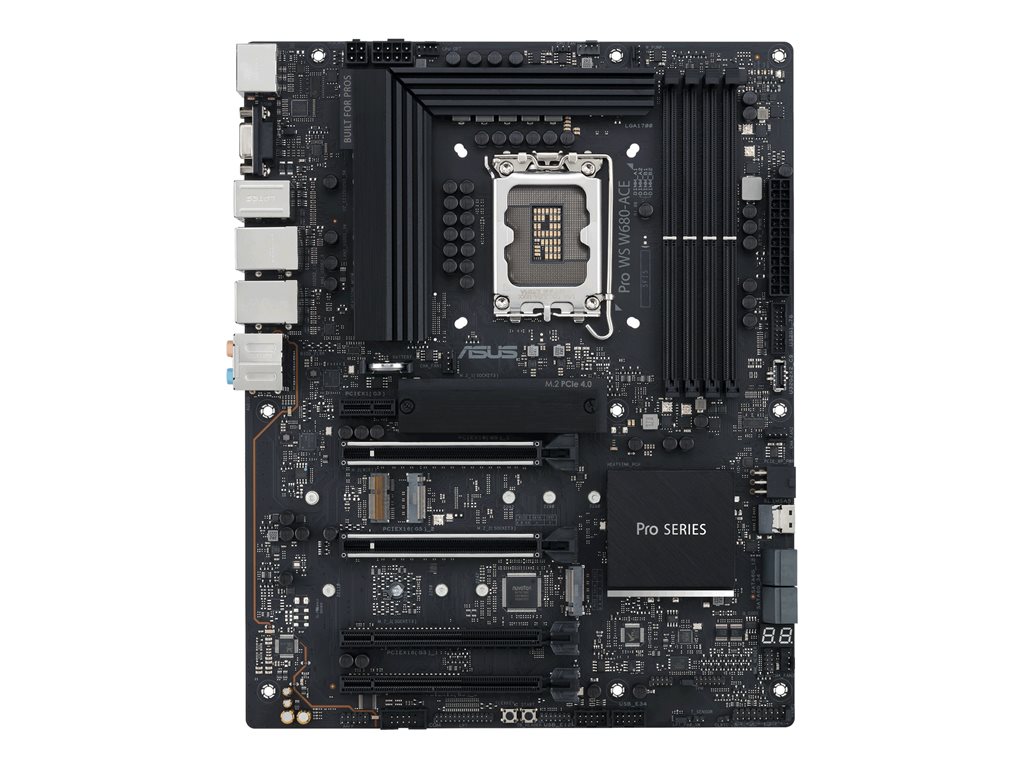

| Product Description | ASUS Pro WS W680-ACE - motherboard - ATX - LGA1700 Socket - W680 |
| Product Type | Motherboard - ATX |
| Chipset Type | Intel W680 |
| Processor Socket | 1 x LGA1700 Socket |
| Compatible Processors | (supports 12th and 13th Generation Intel Core) |
| Max RAM Size | 192 GB |
| RAM Supported | 4 DIMM slots - DDR5, non-ECC, on-die ECC, ECC, unbuffered |
| Storage Ports | 1 x SlimSAS, 4 x SATA-600, 3 x M.2 |
| USB / FireWire Ports | 1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) |
| Audio | HD Audio (8-channel) |
| LAN | 2 x 2.5 Gigabit Ethernet |
| General | |
| Product Type | Motherboard - ATX |
| Chipset Type | Intel W680 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 5.0 x16 (dual x8 mode; single card: x16 mode) ¦ 2 x PCIe 3.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces | SATA-600 / PCIe 4.0 -connectors: 1 x SlimSAS, 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID Features | Intel Rapid Storage Technology |
| Interfaces | 1 x DisplayPort ¦ 1 x HDMI ¦ 1 x VGA ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 2 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x Thunderbolt 4 - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector, 6-pin PCI Express power connector |
| Miscellaneous | |
| Included Accessories | Q-Connector, 1 x M.2 rubber package, 2 x M.2 SSD screw package, M.2 Key E screw package, IO shield, ACC Express Activation Key Card |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Armoury Crate, ASUS CPU-Z, Norton 360 Deluxe (60 days trial), WinRAR, ASUS Control Center Express, ASUS Fan Xpert 4 |
| Width | 12 in |
| Depth | 9.6 in |
| Audio | |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up | Wake on PME, wake on LAN (WOL) |
| Hardware Features | ASUS OptiMem II, Intel Optane Memory Ready, LANGuard, BIOS FlashBack button, Water Pump Header, ASUS 5X Protection III, ASUS EZ DIY, ASUS Overvoltage Protection, ASUS Q-Connector, ASUS Q-Design, ASUS SafeSlot, BIOS FlashBack LED, CPU Socket lever protector, ESD Guards, M.2 heatsink, M.2 Q-Latch, Q-Code, Q-DIMM, Q-LED, Q-Slot, SafeDIMM, VRM heatsink design, CrashFree BIOS 3, FlexKey button, Preboot eXecution Environment (PXE) |
| LAN | |
| Network Interfaces | 2 x 2.5 Gigabit Ethernet |
| Supported RAM | |
| Max Size | 192 GB |
| Technology | DDR5 |
| Supported RAM Integrity Check | Non-ECC, on-die ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
