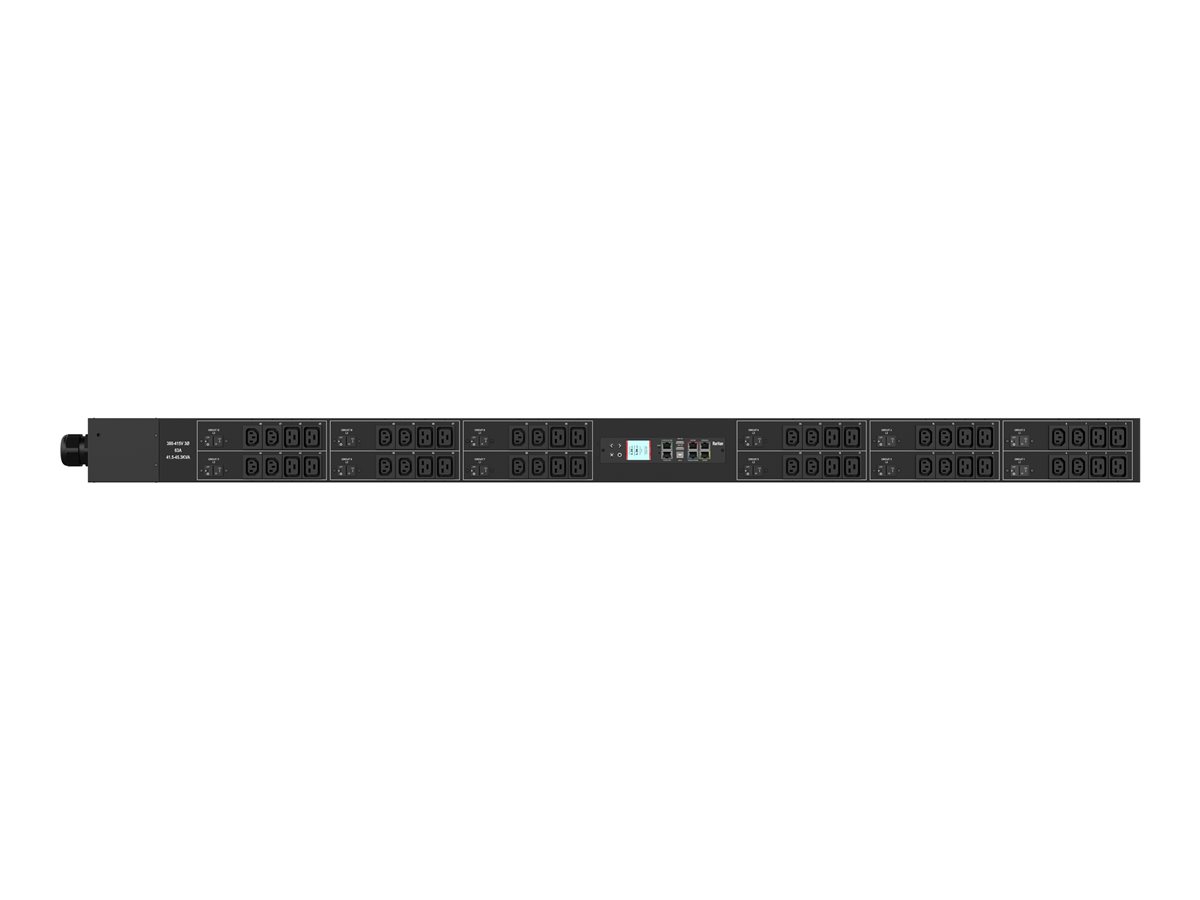

Power distribution unit (rack-mountable) - AC 400 V - 43600 VA - 3-phase WYE - Ethernet 10/100/1000, RS-232, USB - input: IEC 60309 3P+N+E - output connectors: 48 (24 x IEC 60320 C13, 24 x IEC 60320 C19) - 10 ft cord - black powder coat
| Main Specifications | |
|---|---|
| Product Description | Raritan PX3-5949U-V2 - power distribution unit - 43600 VA |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Weight | 30.86 lbs |
| Input Wiring | 3-phase WYE |
| Input Voltage | AC 400 V |
| Output Voltage | AC 230 V |
| Power Capacity | 43600 VA |
| Power Capacity Details | 41.5 kVA at 380 V, 45.3 kVA at 415 V |
| Input Connectors | 1 x power IEC 60309 3P+N+E |
| Output connectors | 24 x power IEC 60320 C13 - 230 V 10 A ¦ 24 x power IEC 60320 C19 - 230 V 16 A |
| Networking | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC, Modbus, SSH |
| Color | Black powder coat |
| Dimensions (WxDxH) | 4.3 in x 3.1 in x 70.1 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Color | Black powder coat |
| Expansion / Connectivity | |
| Interfaces | 2 x management (Gigabit Ethernet) - RJ-45 ¦ 2 x USB-A - 4 pin USB Type A ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x console/modem - RJ-45 ¦ 1 x sensor - RJ-45 ¦ 1 x feature - RJ-45 ¦ 1 x expansion - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable - integrated - 10 ft |
| Rack Mounting Kit | Included |
| Features | Tool-less button mount, voltage meter, current meter, active power meter, real power meter, energy meter, power factor meter, metering per input line, metering per branch circuit breaker, metering per output receptacle, remote outlet switching, environmental sensor ready, replaceable controller, cascadable, LCD display, Auto-Flip Current Display, 64MB DDR2 RAM, 16MB SPI Flash, ARM Cortex A5 CPU, power cable IP44 compliant, cord retention, Raritan SecureLock Ready, 12 x LEGBX6-16 overload protection |
| Compliant Standards | IEC 62053-21, ISO 62053-21, ICES-003, FCC Part 15 A, RoHS, IP44 |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC, Modbus, SSH |
| Environmental Parameters | |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 85% |
| Power Device | |
| Input Voltage | AC 400 V |
| Input Voltage Range | AC 380 - 415 V |
| Input Wiring | 3-phase WYE |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+N+E |
| Power Output Connectors Details | 24 x power IEC 60320 C13 - 230 V 10 A ¦ 24 x power IEC 60320 C19 - 230 V 16 A |
| Output Voltage | AC 230 V |
| Max Electric Current | 63 A |
| Power Capacity | 43600 VA |
| Power Capacity Details | 41.5 kVA at 380 V, 45.3 kVA at 415 V |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 4.3 in |
| Depth | 3.1 in |
| Height | 70.1 in |
| Weight | 30.86 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 11.4 in |
| Shipping Depth | 6.6 in |
| Shipping Height | 80.2 in |
| Shipping Weight | 39.68 lbs |
