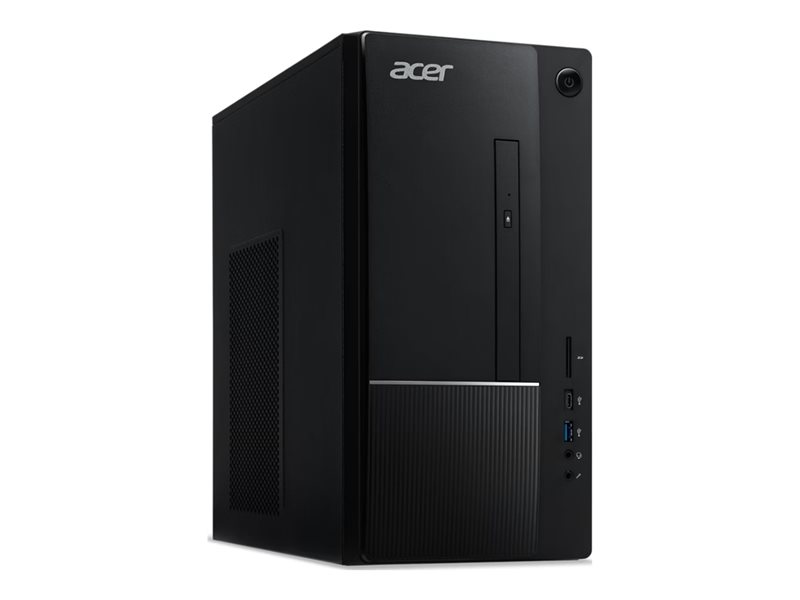

Tower Core i5 i5-14400 / up to 4.7 GHz - RAM 8 GB - SSD 512 GB - UHD Graphics 730 - IEEE 802.11ax (Wi-Fi 6E), Bluetooth, Gigabit Ethernet - Win 11 Home - monitor: none
| Main Specifications | |
|---|---|
| Product Description | Acer Aspire TC-1775 - tower Core i5 i5-14400 2.5 GHz - 8 GB - SSD 512 GB |
| Type | Personal computer - tower |
| Localization | Region: United States |
| Processor | Intel Core i5 (14th Gen) i5-14400 / 2.5 GHz (up to 4.7 GHz, (10-core) |
| Processor Socket | FCLGA1700 Socket |
| Cache Memory | 20 MB |
| Cache Per Processor | 20 MB |
| RAM | 8 GB (installed) / 32 GB (max) - DDR5 SDRAM |
| Hard Drive | SSD 512 GB - PCI Express 4.0 - M.2 |
| Optical Storage | No optical drive |
| Card Reader | Yes |
| Graphics Controller | Intel UHD Graphics 730 shared video memory (UMA) |
| Networking | Wi-Fi 6E, 802.11a, Wi-Fi 5, 802.11b/g/n, Bluetooth, 1GbE |
| OS Provided | Windows 11 Home |
| Dimensions (WxDxH) | 6.4 in x 13.8 in x 13.4 in |
| Weight | 16.31 lbs |
| Manufacturer Warranty | Limited warranty - 1 year |
| General | |
| Type | Personal computer |
| Product Form Factor | Tower |
| Localization | Region: United States |
| Expansion / Connectivity | |
| Slots | 1 PCIe x16 ¦ 1 PCIe x1 ¦ 2 M.2 Card |
| Interfaces | 4 x USB 2.0 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x USB-C 3.2 Gen 1 ¦ Audio line-out/line-in ¦ 2 x HDMI |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Thermal pad, slim ODD cover, 2 x wireless antennas |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| RAM | |
| Installed Size | 8 GB (installed) / 32 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 2400 MHz |
| Rated Memory Speed | 2400 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 2 (total) / 1 (empty) |
| Configuration Features | 1 x 8 GB |
| Networking | |
| Ethernet Controller | Realtek RTL8111H |
| Wireless LAN Supported | Yes |
| Data Link Protocol | IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, Bluetooth, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Dual stream (2x2) |
| Power | |
| Device Type | Power supply |
| Power Provided | 300 watt |
| Efficiency | 82%+ |
| Cache Memory | |
| Installed Size | 20 MB |
| Cache Per Processor | 20 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 730 shared video memory (UMA) |
| Video Interfaces | HDMI |
| Operating System / Software | |
| OS Provided | Windows 11 Home |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 512 GB |
| Manufacturer | Micron |
| Interface Type | PCI Express 4.0 |
| Input Device | |
| Type | Keyboard, mouse |
| Dimensions & Weight | |
| Width | 6.4 in |
| Depth | 13.8 in |
| Height | 13.4 in |
| Weight | 16.31 lbs |
| Keyboard | |
| Keyboard Name | Lite-On SK-2086 |
| Interface | USB |
| Card Reader | |
| Type | Card reader |
| Supported Flash Memory Cards | SD Memory Card |
| Mouse | |
| Mouse Name | PRIMAX MOANUOA |
| Interface | USB |
| Processor / Chipset | |
| CPU | Intel Core i5 (14th Gen) i5-14400 |
| Clock Speed | 2.5 GHz (P-core) / 1.8 GHz (E-core) |
| Max Turbo Speed | 4.7 GHz (P-core) / 3.5 GHz (E-core) |
| Number of Cores | 10-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| L2 cache | 9.5 MB |
| CPU Socket | FCLGA1700 Socket |
| Chipset Type | Intel H610 |
