All-in-one Core Ultra 7 155U / up to 4.8 GHz - RAM 8 GB - SSD 512 GB - Intel Graphics - Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) - Win 11 - monitor: LCD 23.8" 1920 x 1080 (Full HD) touchscreen - white
| Main Specifications | |
|---|---|
| Product Description | DT Research Medical Cart Computer 584TM - all-in-one Core Ultra 7 155U 1.2 GHz - 8 GB - SSD 512 GB - LCD 23.8" |
| Type | Personal computer - all-in-one |
| Processor | Intel Core Ultra 7 (Series 1) 155U / 1.2 GHz (up to 4.8 GHz, (12-core) |
| Neural Processor Unit (NPU) | Intel AI Boost |
| Cache Memory | 12 MB |
| Cache Per Processor | 12 MB |
| RAM | 8 GB (installed) / 64 GB (max) |
| Hard Drive | SSD 512 GB |
| Optical Storage | No optical drive |

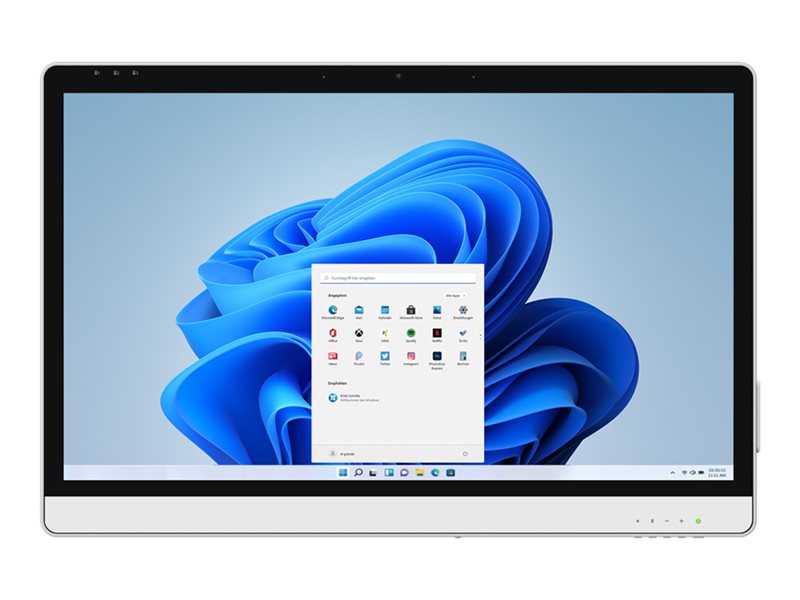

| Monitor | 23.8" - LCD - 1920 x 1080 (Full HD) - touchscreen |
| Graphics Controller | Intel Graphics |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Bluetooth 5.2, Wi-Fi 6 |

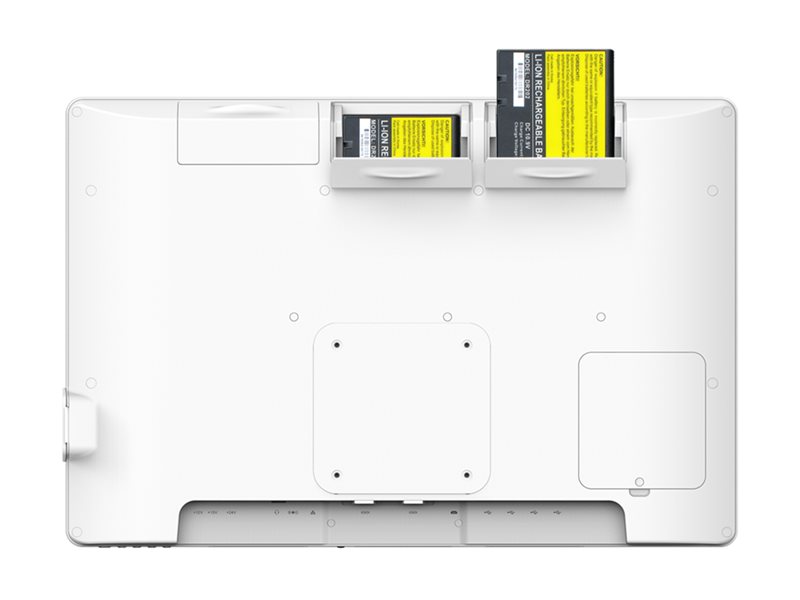

| Battery | 8250 mAh lithium ion |
| OS Provided | Windows 11 |
| Color | White |
| Dimensions (WxDxH) | 22.2 in x 1.6 in x 14.6 in |
| Weight | 16.4 lbs |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | Personal computer |
| Product Form Factor | All-in-one |
| Built-in Devices | Speaker, capacitive touch screen, LED reading light |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Color | White |
| Expansion / Connectivity | |

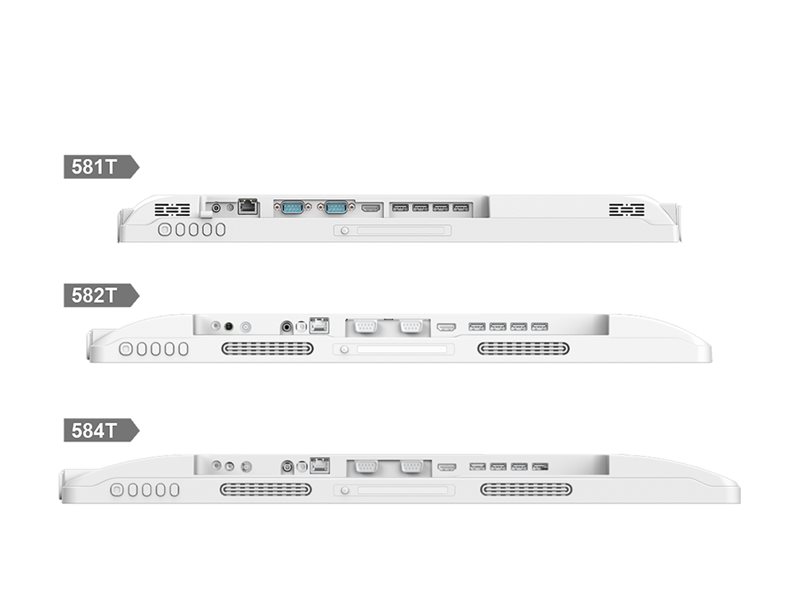

| Interfaces | 3 x USB 3.2 Gen 2 - Type A ¦ 2 x USB 2.0 - Type A ¦ 1 x USB-C 3.2 Gen 2 - Type C ¦ 2 x serial ¦ 1 x HDMI output ¦ 1 x audio line-out - mini-jack ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Power adapter, 3 x batteries |
| VESA Mounting Interface | 100 x 100 mm |
| Compliant Standards | Medical Grade, IEC 60601-1-2, CCC, EMC, GB 17625.1, IP65, IPX2, IEC 60601-1, GB 4943.1, RCM, ANSI/AAMI ES60601-1, RED, FCC part 18, FCC-15 (Class B), GB/T 9254 |
| RAM | |
| Installed Size | 8 GB (installed) / 64 GB (max) |
| Networking | |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Cache Memory | |
| Installed Size | 12 MB |
| Cache Per Processor | 12 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | LCD |
| Touchscreen | Yes |
| Diagonal Size | 23.8" |
| Native Resolution | 1920 x 1080 (Full HD) |
| Widescreen Display | Yes |
| Monitor Features | Fanless cooling, capacitive touch screen, antimicrobial enclosure |
| Graphics Controller | |
| Graphics Processor | Intel Graphics |
| Video Interfaces | HDMI |
| Operating System / Software | |
| OS Provided | Windows 11 |
| Hard Drive | |
| Type | SSD |
| Capacity | 1 x 512 GB |
| Audio Input | |
| Type | Microphone |
| Battery | |
| Capacity | 8250 mAh |
| Technology | Lithium ion |
| Dimensions & Weight | |
| Width | 22.2 in |
| Depth | 1.6 in |
| Height | 14.6 in |
| Weight | 16.4 lbs |
| Processor / Chipset | |
| CPU | Intel Core Ultra 7 (Series 1) 155U |
| Clock Speed | 1.2 GHz |
| Max Turbo Speed | 4.8 GHz |
| Number of Cores | 12-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Neural Processor Unit (NPU) | |
| Neural Processor Unit (NPU) | Intel AI Boost |
| Sparsity Support | Yes |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WindowsML, ONNX RT |
| Windows Studio Effects Support | Yes |
