Wireless access point - 2.4 GHz, 5 GHz - rail mountable - for P/N: ACW-DIN-BR1-MINI, SVL-413, SVL-513
| Main Specifications | |
|---|---|

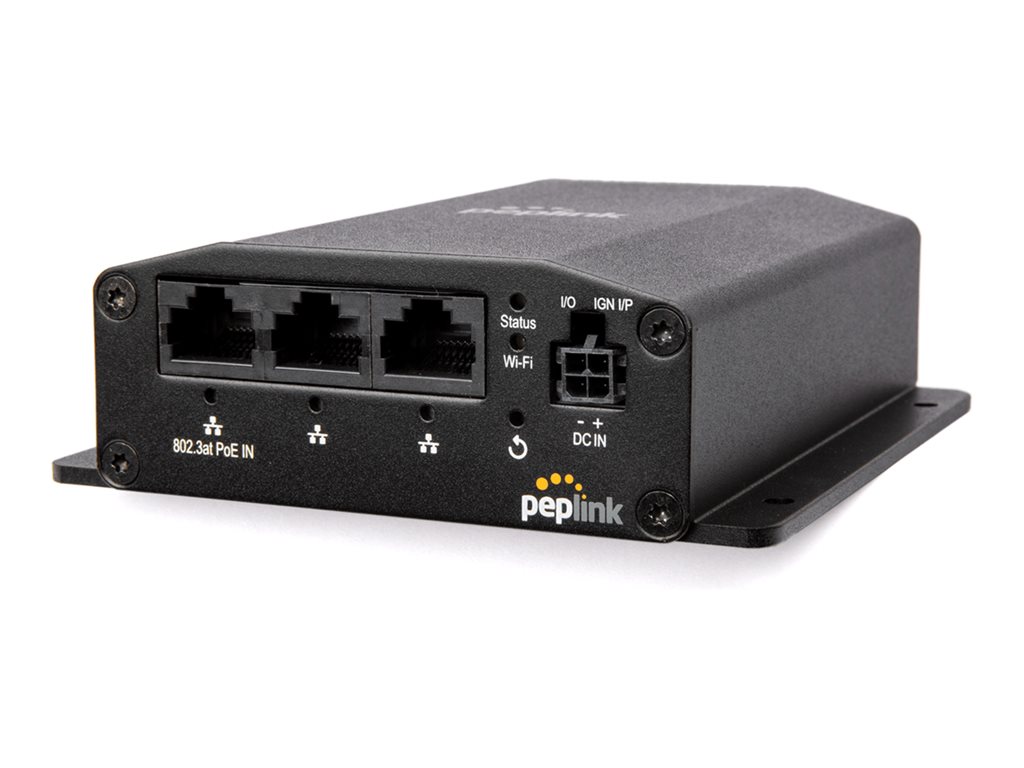

| Product Description | Peplink AP One Rugged - wireless access point - Wi-Fi 5 |
| Device Type | Wireless access point |
| Form Factor | DIN rail mountable |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | Recommended clients per radio: 60 ¦ SSIDs per radio: 16 |
| Power Over Ethernet (PoE) Supported | PoE |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 4.8 in x 4.2 in x 1.4 in |
| Weight | 12.87 oz |
| Manufacturer Warranty | 1-year warranty |
| Designed For | P/N: ACW-DIN-BR1-MINI, SVL-413, SVL-513 |
| General | |
| Device Type | Wireless access point |
| Width | 4.8 in |
| Depth | 4.2 in |
| Height | 1.4 in |
| Weight | 12.87 oz |
| Expansion / Connectivity | |
| Interfaces | 3 x 1 Gigabit Ethernet - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Networking | |
| Form Factor | DIN rail mountable |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 866 Mbps |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Network / Transport Protocol | PPPoE, DHCP |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | Recommended clients per radio: 60 ¦ SSIDs per radio: 16 |
| Features | Bridge mode, NAT support, Wireless Distribution System (WDS) support, VLAN management, Spanning Tree Protocol (STP) support, Multiple SSID support, auto channel selection, Neighbor AP detection, InControl Cloud Management, Client Limit per SSID, bandwidth control, MAC address filtering, Layer 2 Client Isolation, Multicast filtering function, GMP snooping, shock-resistant, vibration-resistant, 2x2 MIMO technology |
| Encryption Algorithm | WPA, WPA2, WPA3-Personal, WPA2-Enterprise, OWE |
| Authentication Method | RADIUS |
| Compliant Standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3 at |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 13 watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Antenna | |
| Antenna | External |
| Antenna Qty | 2 |
| Directivity | Omni-directional |
| Gain Level | 3 dBi |
| Compatibility Information | |
| Designed For | P/N: ACW-DIN-BR1-MINI, SVL-413, SVL-513 |
