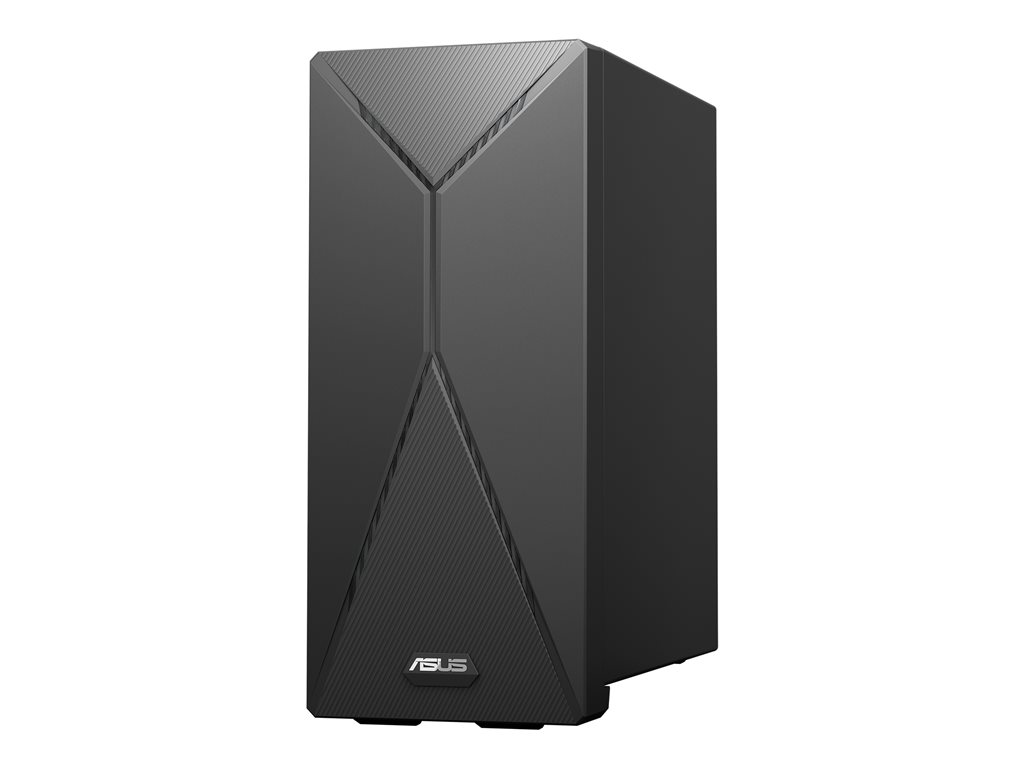

MT Core i5 13400 / up to 4.6 GHz - RAM 16 GB - SSD 1 TB - NVMe - UHD Graphics 730 - IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3, Gigabit Ethernet - Win 11 Home - monitor: none - black
| Main Specifications | |
|---|---|
| Product Description | ASUS S5 S501MER DS504 - MT Core i5 13400 2.5 GHz - 16 GB - SSD 1 TB |
| Type | Personal computer - MT |
| Processor | Intel Core i5 (13th Gen) 13400 / 2.5 GHz (up to 4.6 GHz, (10-core) |
| Processor Main Features | Intel Smart Cache |
| Cache Memory | 20 MB |
| Cache Per Processor | 20 MB |
| RAM | 16 GB (installed) / 64 GB (max) - DDR4 SDRAM |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | SSD 1 TB - PCI Express 4.0 - M.2 2280 - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics 730 |
| Audio Output | 7.1 channel surround |
| Networking | 802.11a, Wi-Fi 5, Wi-Fi 6E, 802.11b/g/n, Bluetooth 5.3, 1GbE |
| OS Provided | Windows 11 Home |
| Software Included | McAfee LiveSafe (30 days trial) |
| Color | Black |
| Dimensions (WxDxH) | 6.3 in x 12.6 in x 14.5 in |
| Weight | 13.01 lbs |
| Manufacturer Warranty | Limited warranty - 1 year |
| General | |
| Type | Personal computer |
| Product Form Factor | MT |
| Built-in Devices | Air cooling solution |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Black |
| Expansion / Connectivity | |
| Slots | 1 (total) / 0 (free) x M.2 Card (for WLAN) ¦ 2 (total) / 1 (free) x M.2 Card (for SSD) ¦ 1 PCIe 4.0 x16 ¦ 2 PCIe 3.0 x1 |
| Interfaces | 1 x LAN (Gigabit Ethernet) (1 rear) ¦ 1 x HDMI (1 rear) ¦ 1 x VGA (1 rear) ¦ 1 x DisplayPort 1.4 (1 rear) ¦ 1 x PS/2 mouse (1 rear) ¦ 2 x USB 2.0 (2 rear) ¦ 5 x USB 3.2 Gen 1 (3 front, 2 rear) ¦ 1 x USB-C 3.2 Gen 2 (1 in front) ¦ 1 x audio line-out (1 rear) ¦ 1 x audio line-in (1 rear) ¦ 1 x microphone (1 rear) ¦ 1 x headphones/microphone (1 in front) ¦ 1 x PS/2 keyboard (1 rear) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | RoHS, REACH |
| RAM | |
| Installed Size | 16 GB (installed) / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (total) / 0 (empty) |
| Features | Unbuffered |
| Configuration Features | 2 x 8 GB |
| Networking | |
| Wireless LAN Supported | Yes |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 5.3, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Dual stream (2x2) |
| Power | |
| Device Type | Power supply |
| Power Provided | 350 watt |
| 80 PLUS Certification | 80 PLUS Bronze |
| Storage Controller | |
| Type | 4 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Cache Memory | |
| Installed Size | 20 MB |
| Cache Per Processor | 20 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 730 |
| Video Interfaces | VGA, HDMI, DisplayPort |
| Audio Output | |
| Sound Output Mode | 7.1 channel surround |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 11 Home |
| Software | McAfee LiveSafe (30 days trial) |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 1 TB |
| Interface Type | PCI Express 4.0 |
| Features | NVM Express (NVMe) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 6.3 in |
| Depth | 12.6 in |
| Height | 14.5 in |
| Weight | 13.01 lbs |
| Keyboard | |
| Interface | USB |
| Features | Antimicrobial coating |
| Mouse | |
| Technology | Optical |
| Interface | USB |
| Features | Antimicrobial coating |
| Processor / Chipset | |
| CPU | Intel Core i5 (13th Gen) 13400 |
| Clock Speed | 2.5 GHz (P-core) / 1.8 GHz (E-core) |
| Max Turbo Speed | 4.6 GHz (P-core) / 3.3 GHz (E-core) |
| Number of Cores | 10-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Smart Cache |
| Chipset Type | Intel B760 |
