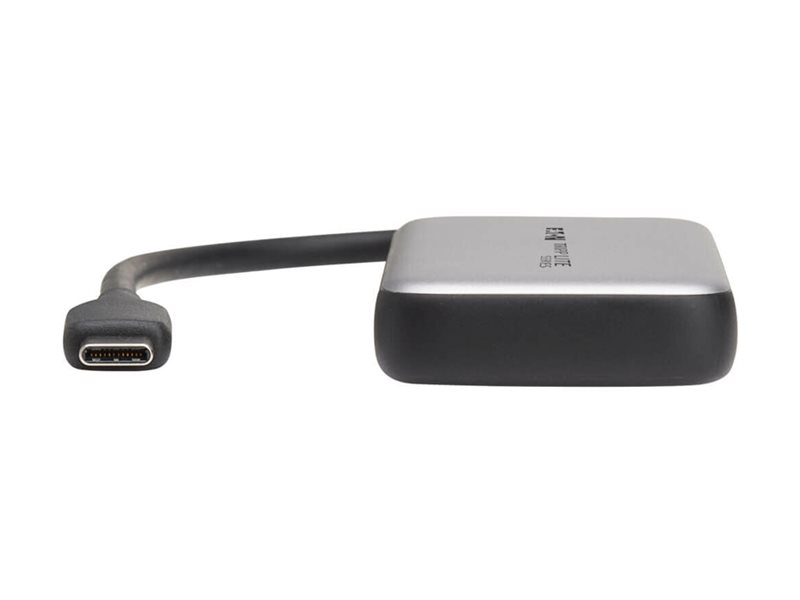

Hub - 4 x USB-C 3.2 Gen 2 - desktop
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite series 4-Port USB-C Hub, USB 3.2 Gen 2 (10 Gbps), 4x USB-C Ports, 100W PD Charging, Thunderbolt 3 Compatible, Gray - hub - 4 ports |
| Device Type | Hub - 4 ports |
| Subtype | USB |
| Ports | 4 x USB-C 3.2 Gen 2 |
| Performance | Data transfer rate: 10 Gbps |
| Features | USB Power Delivery (up to 100 watt), USB Power Delivery 3.0, Thunderbolt 3 compatible, bus powered, nickel plated contact, TPE/ABS housing, over-current protection |
| Compliant Standards | USB 3.2 Gen 2 |
| Dimensions (WxDxH) | 1.6 in x 3.7 in x 0.5 in |
| Color | Gray, black |
| Manufacturer Warranty | 3-year warranty |
| Designed For | P/N: U280-W01-100C1G, U420-05M-G2, U436-01M, U436-03M, U436-05M |
| General | |
| Device Type | Hub - 4 ports |
| Enclosure Type | Desktop |
| Subtype | USB |
| Ports | 4 x USB-C 3.2 Gen 2 |
| Performance | Data transfer rate: 10 Gbps |
| Features | USB Power Delivery (up to 100 watt), USB Power Delivery 3.0, Thunderbolt 3 compatible, bus powered, nickel plated contact, TPE/ABS housing, over-current protection |
| Compliant Standards | USB 3.2 Gen 2 |
| Expansion / Connectivity | |
| Interfaces | 4 x USB 3.2 Gen 2 Type C ¦ 1 x USB Type C host |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | Gray, black |
| Cables Included | 1 x USB-C cable |
| Compliant Standards | Plug and Play, FCC, REACH, RoHS3, UKCA |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 80% RH (non-condensing) |
| Min Storage Temperature | 14 °F |
| Max Storage Temperature | 176 °F |
| Humidity Range Storage | 25 - 93% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 1.6 in |
| Depth | 3.7 in |
| Height | 0.5 in |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 5.5 in |
| Shipping Depth | 3.9 in |
| Shipping Height | 0.9 in |
| Compatibility Information | |
| Designed For | P/N: U280-W01-100C1G, U420-05M-G2, U436-01M, U436-03M, U436-05M |
