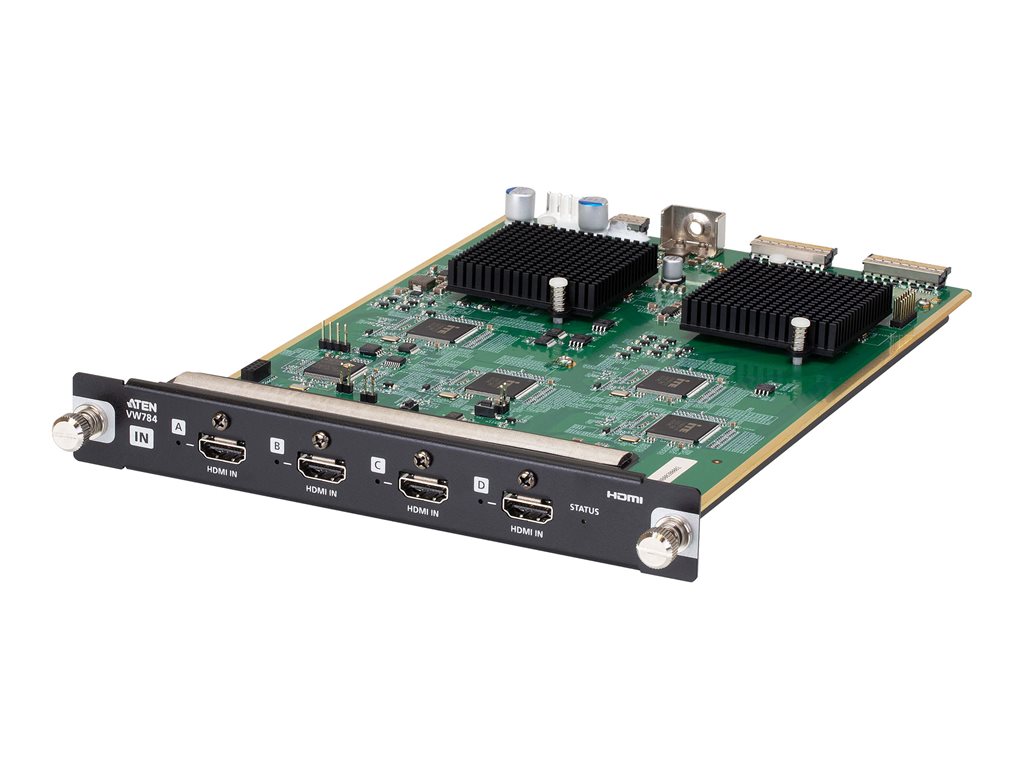

Expansion module - HDMI x 4
| Main Specifications | |
|---|---|
| Product Description | ATEN VW784 - expansion module - HDMI x 4 |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Ports | HDMI x 4 |
| Dimensions (WxDxH) | 7.6 in x 10.7 in x 1.1 in |
| Data Link Protocol | HDMI |
| Data Transfer Rate | 10.2 Gbps |
| Performance | Pixel clock: 340 MHz |
| Compliant Standards | HDCP 2.2 |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 4 x HDMI input - 19 pin HDMI Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Networking | |
| Ports | HDMI x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Data Transfer Rate | 10.2 Gbps |
| Performance | Pixel clock: 340 MHz |
| Status Indicators | Status |
| Features | 4K30Hz support, 3D support, Deep Color support, CEC support, EDID Expert, hot swappable |
| Compliant Standards | HDCP 2.2 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Dimensions & Weight | |
| Width | 7.6 in |
| Depth | 10.7 in |
| Height | 1.1 in |
