Video/audio/USB extender - receiver - DM Lite - over CATx - up to 230 ft
| Main Specifications | |
|---|---|

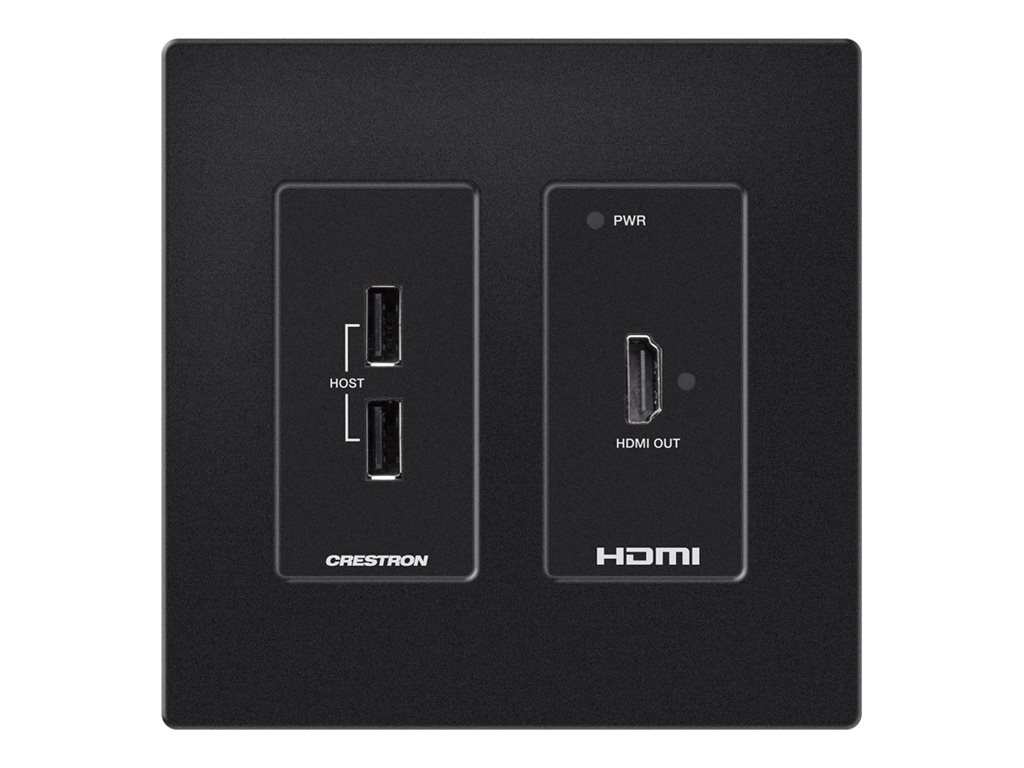

| Product Description | Crestron HD-RXU-4KZ-101-2G-B - video/audio/USB extender - DM Lite |
| Device Type | Video/audio/USB extender (receiver) |
| Form Factor | In-wall mountable |
| Data Link Protocol | DM Lite |
| Transmission Medium | CATx |
| Max Transfer Distance | 230 ft |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 3.6 in x 1.7 in x 4.1 in |
| Weight | 6.88 oz |
| General | |
| Device Type | Video/audio/USB extender (receiver) |
| Form Factor | In-wall mountable |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (output) - 19 pin HDMI Type A female ¦ 2 x USB 2.0 (host) - Type A female ¦ 1 x DM Lite (input) - RJ-45 female |
| Miscellaneous | |
| Included Accessories | Wall plate |
| Compliant Standards | Intertek, IC, FCC Part 15 B |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | DM Lite |
| Max Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz |
| Max Transfer Distance | 230 ft |
| Status Indicators | Power, HDMI output, link/activity |
| Features | HDR10+ support, HDR10 support, Dolby Vision HDR support, Deep Color support, Dolby Digital support, Dolby Digital EX support, Dolby Digital Plus support, Dolby TrueHD support, Dolby Atmos support, DTS support, DTS ES support, DTS-HD support, DTS-HD Master Audio support, DTS:X support, LPCM support, EDID Pass-Through, CEC passthrough, metal housing, 4K60 8-bit 4:4:4 compatible, 2-gang |
| Compliant Standards | HDCP 2.3, USB 2.0 |
| Power | |
| Voltage Required | AC 120/230 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 3.6 in |
| Depth | 1.7 in |
| Height | 4.1 in |
| Weight | 6.88 oz |
