Amplifier - 2 x 35 Watt
| Main Specifications | |
|---|---|
| Product Description | Crestron X-Series AMP-X75 - amplifier |
| Product Type | Amplifier |
| Audio Specifications | Amplifier - 20 - 20000 Hz - 103 dB 0.1% |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 19 in x 8.8 in x 1.7 in |
| Weight | 33.51 oz |
| General | |
| Product Type | Amplifier |
| Miscellaneous | |
| Included Accessories | Power cable |
| Power | |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 18.63 Watt |
| Power Consumption Stand by | 0.41 Watt |
| Connections | |

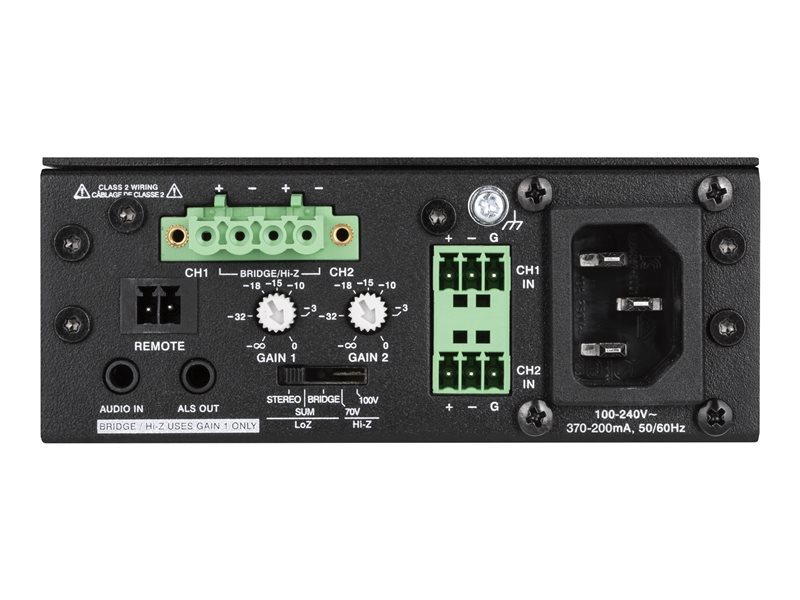

| Connectors | Audio line-in (mini-phone stereo 3.5 mm) - rear ¦ Audio line-out (mini-phone stereo 3.5 mm) - rear ¦ 2 x balanced audio input (3 pin terminal block) - rear ¦ 2 x speakers output - rear ¦ Remote control (2 pin terminal block) - rear |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 8.8 in |
| Height | 1.7 in |
| Weight | 33.51 oz |
| Audio System | |
| Functions | Amplifier |
| Audio Specifications | Amplifier - Response Bandwidth - 20 - 20000 Hz - SNR - 103 dB - THD - 0.1% |
| Output Channel Qty | 2 channels |
| Output Power (per channel) | 35 Watt |
| Amplifier Output Details | 35 Watt - 8 Ohm - 2 channels ¦ 35 Watt - 4 Ohm - 2 channels ¦ 35 Watt - 8 Ohm - 1 channels ¦ 35 Watt - 4 Ohm - 1 channels ¦ 75 Watt - 8 Ohm - 1 channels (bridged) ¦ 75 Watt - 1 channels (70V) ¦ 75 Watt - 1 channels (100V) |
| Features | 70V/100V or 4/8 Ohm operation, rack mountable, bridged output capability |
