Amplifier - 2 x 25 Watt - black
| Main Specifications | |
|---|---|
| Product Description | Crestron X-Series AMP-X50MP - amplifier |
| Product Type | Amplifier |
| Enclosure Color | Black |
| Audio Channels | Stereo |
| Audio Specifications | Amplifier - 20 - 20000 Hz - 90 dB <0.1% |
| Output Power | 50 Watt |
| Power | AC 100-240 V (50/60 Hz) |
| Environmental Standards | ENERGY STAR Qualified |
| Dimensions (WxDxH) | 4.3 in x 7 in x 1.7 in |
| Weight | 3.31 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Amplifier |
| Enclosure Color | Black |
| Enclosure Material | Metal |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Included Accessories | AC power adapter |
| Power | |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 14.6 Watt |
| Power Consumption Idle | 6 Watt |
| Connections | |

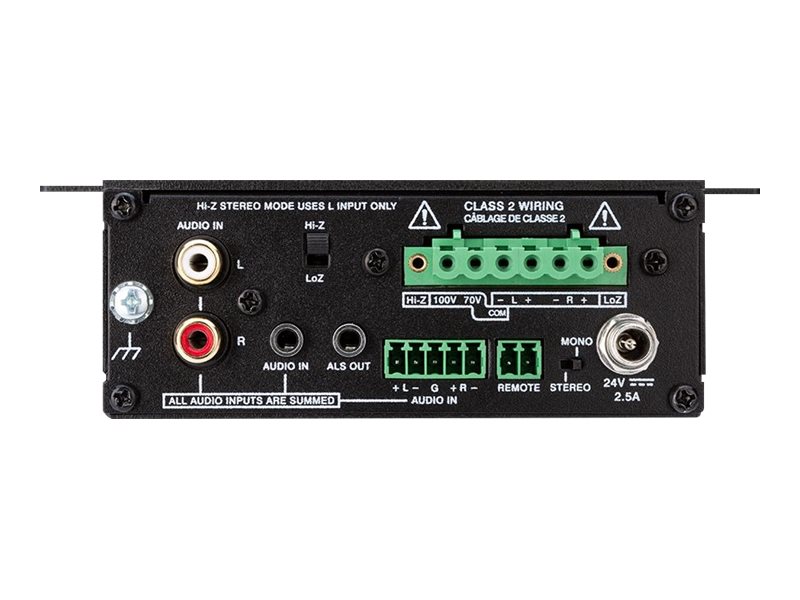

| Connectors | Audio line-in (RCA x 2) - rear ¦ Balanced audio input (terminal block) - rear ¦ Audio line-in (mini-phone stereo 3.5 mm) - rear ¦ Remote control (terminal block) - rear |
| Dimensions & Weight | |
| Width | 4.3 in |
| Depth | 7 in |
| Height | 1.7 in |
| Weight | 3.31 lbs |
| Audio System | |
| Audio Channels | Stereo |
| Functions | Amplifier |
| Amplifier Class | D |
| Audio Specifications | Amplifier - Response Bandwidth - 20 - 20000 Hz - SNR - 90 dB - THD - <0.1% |
| Output Channel Qty | 2 channels |
| Output Power (per channel) | 25 Watt |
| Output Power / Total | 50 Watt |
| Amplifier Output Details | 25 Watt - 8 Ohm - 2 channels ¦ 25 Watt - 8 Ohm - 1 channels (bridged) ¦ 25 Watt - 4 Ohm - 2 channels ¦ 50 Watt - 4 Ohm - 1 channels (bridged) ¦ 50 Watt - 1 channels (70/100V) |
| Bass Control | Yes |
| Treble Control | Yes |
| Features | 70V/100V or 4/8 Ohm operation, bridged output capability, rack mountable, overload protection, short circuit protection, DC offset protection, thermal protection |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
