Microphone preamplifier
| Main Specifications | |
|---|---|

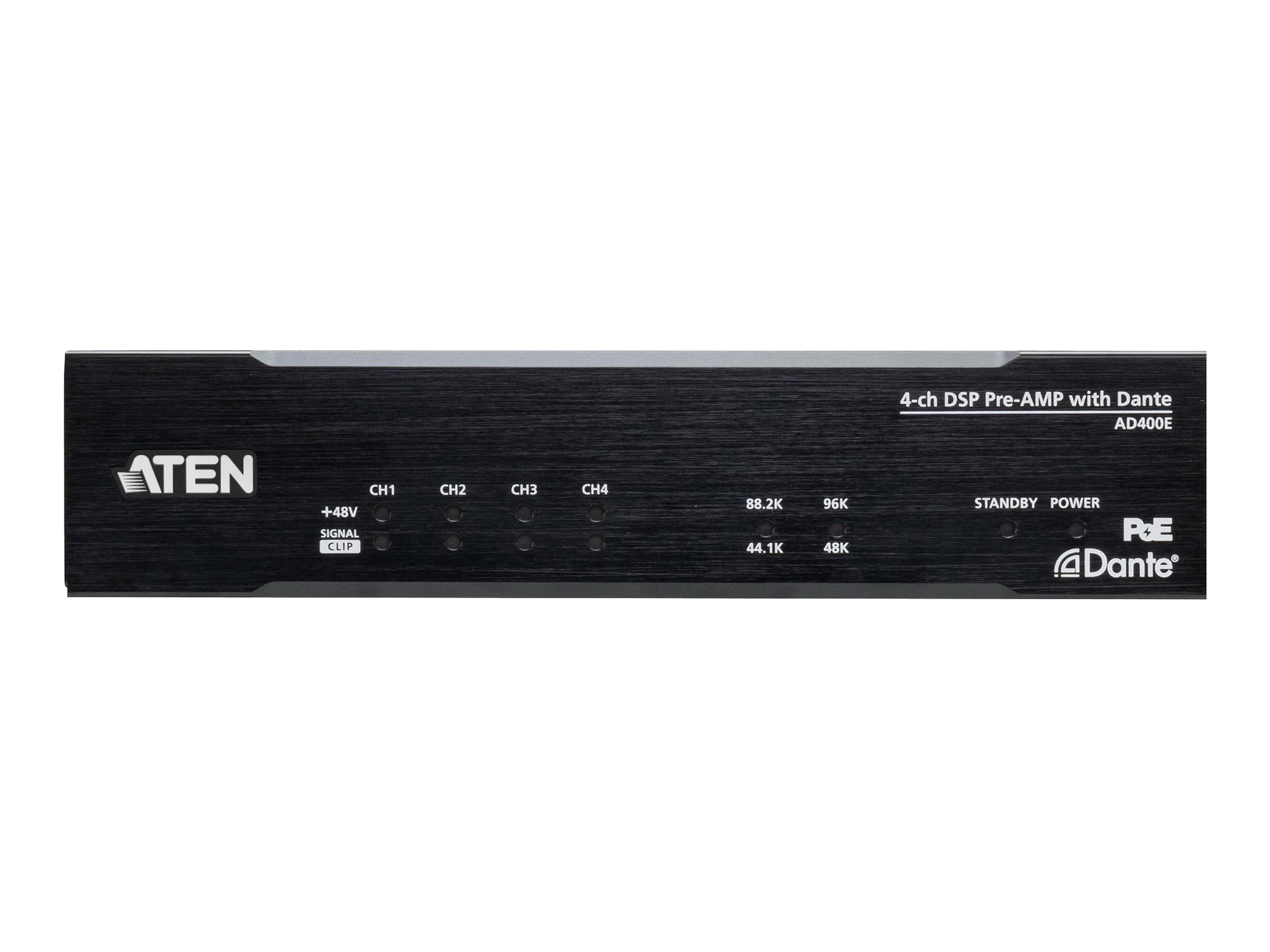

| Product Description | ATEN AD400E - microphone preamplifier |
| Product Type | Microphone preamplifier |
| Audio Specifications | Preamplifier - 20 - 20000 Hz <0.01% |
| Interfaces | Dante |
| Dimensions (WxDxH) | 7.9 in x 6.1 in x 1.7 in |
| Weight | 32.45 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Product Type | Microphone preamplifier |
| Enclosure Material | Metal |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Rack mounting kit, foot pad set (4 pcs), 5 3-pin Euroblock connectors |
| Connections | |
| Connectors | 2 x Dante/AES67 (RJ-45) - rear ¦ RS-232 (3-pin Euroblock) - rear ¦ 4 x audio input (3-pin Euroblock) - rear |
| Dimensions & Weight | |
| Width | 7.9 in |
| Depth | 6.1 in |
| Height | 1.7 in |
| Weight | 32.45 oz |
| Audio System | |
| Functions | Microphone preamplifier, digital signal processor |
| Digital Sound Processor (DSP) | Yes |
| DSP Preset Qty | 24 |
| Audio Specifications | Preamplifier - Response Bandwidth - 20 - 20000 Hz - THD - <0.01% |
| Input Channel Qty | 4 channels |
| Input Impedance | 3 kOhm |
| Maximum Sampling Rate Supported | 96 kHz |
| Features | 48V phantom power, Daisy Chain, dual power supply, PoE support, rack mountable |
| Network & Internet Multimedia | |
| Interfaces | Dante |
