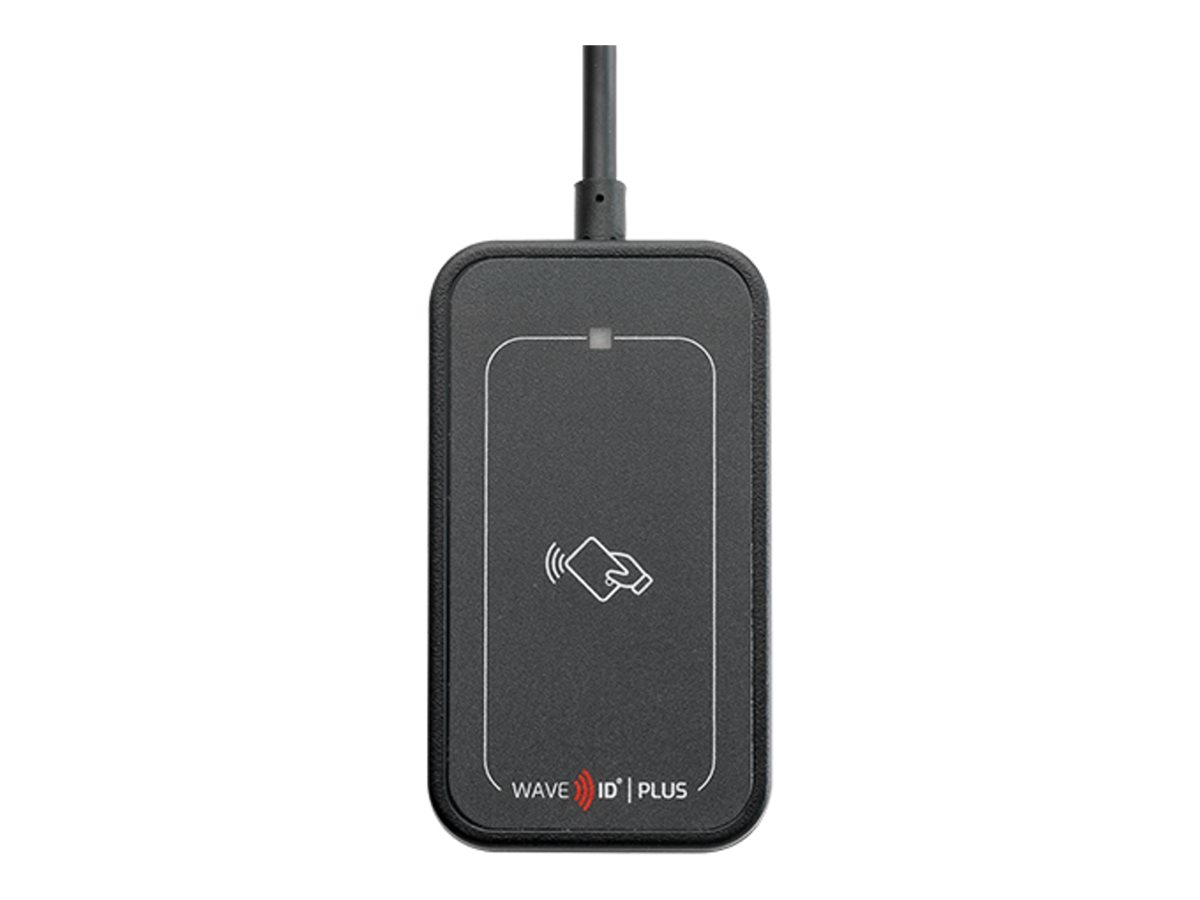

RF proximity reader / SMART card reader - USB - 13.56 MHz - black, gray inlay
| Main Specifications | |
|---|---|
| Product Description | rf IDEAS WAVE ID Plus Mini - RF proximity reader / SMART card reader - USB |
| Device Type | RF proximity reader / SMART card reader - contactless |
| Interface Type | USB |
| Frequency | 13.56 MHz |
| Dimensions (WxDxH) | 1.7 in x 2.9 in x 0.5 in |
| Weight | 2.54 oz |
| Color | Black, gray inlay |
| OS Required | Microsoft Windows XP / 7 / 8 / 10, Ubuntu, Red Hat Linux, Apple MacOS, Android |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | RF proximity reader / SMART card reader - contactless |
| Interface Type | USB |
| Frequency | 13.56 MHz |
| Width | 1.7 in |
| Depth | 2.9 in |
| Height | 0.5 in |
| Weight | 2.54 oz |
| Color | Black, gray inlay |
| Expansion / Connectivity | |
| Connections | 1 x USB - 4 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| OK Notification | Beeper, LED indicator |
| Cables Included | 1 x USB cable - integrated |
| Device Features | iClass SEOS cards compatible, iCLASS SE cards compatible, keystroke data output, USB powered, articulated cable, rubber feet, 4 card configurations, auto-tuning |
| Compliant Standards | Plug and Play, FCC, RCM, IC, UL, RoHS, REACH, CCID |
| Power | |
| Electric Current Required | 185 mA (maximum), 65 mA (typical) |
| Software / System Requirements | |
| Software Included | Software Development Kit (SDK) |
| OS Required | Microsoft Windows XP / 7 / 8 / 10, Ubuntu, Red Hat Linux, Apple MacOS, Android |
| Environmental Parameters | |
| Min Operating Temperature | -13 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
