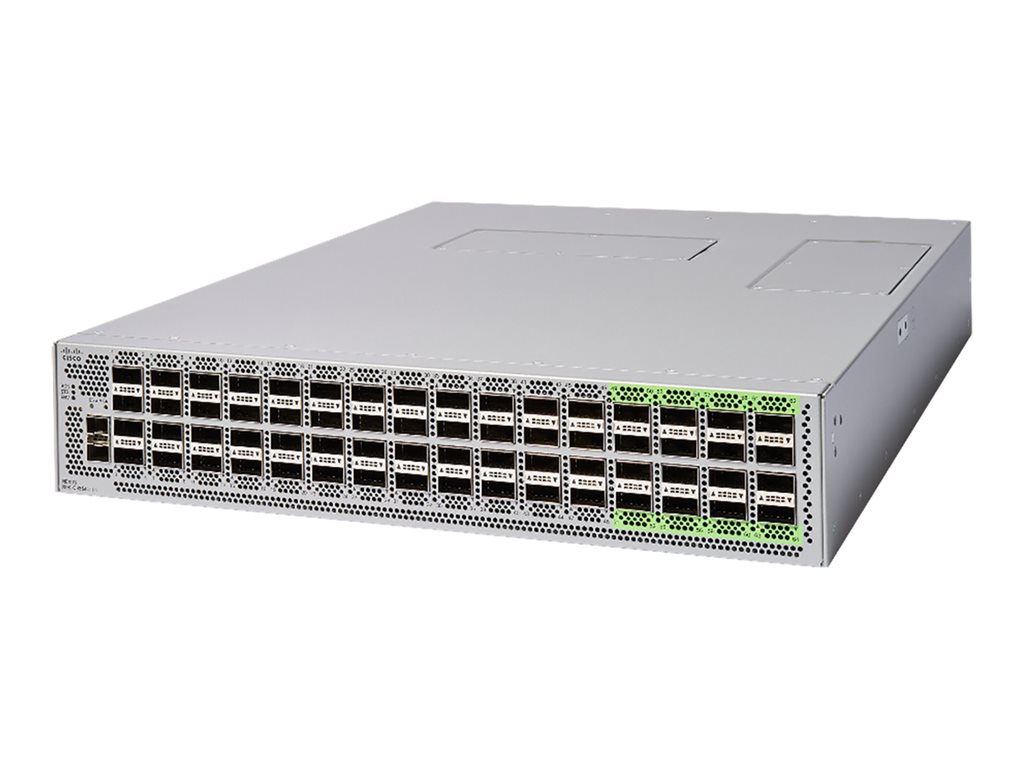

Switch - 64 x 100 Gigabit QSFP28 - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Cisco Nexus 9364C-H1 - switch - 64 ports - rack-mountable |
| Device Type | Switch - 64 ports |
| Enclosure Type | Rack-mountable 2U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 64 x 100 Gigabit QSFP28 |
| Performance | Bandwidth: 12.8 Tbps ¦ Packet buffer size: 40 MB |
| Capacity | Slices: 2 ¦ Longest prefix match (LPM) entries (IPv4): 2000000 ¦ Host table entries (IPv4): 2000000 ¦ Longest prefix match (LPM) entries (IPv6): 1000000 ¦ Host table entries (IPv6): 1000000 ¦ MAC address entries: 1000000 ¦ Multicast routes: 256000 ¦ IGMP snooping groups: 32000 ¦ Maximum ACL rules per interface (IPv4) ingress rules: 28000 ¦ Maximum ACL rules per interface (IPv4) egress rules: 28000 ¦ Virtual interfaces (VLANs): 4096 ¦ VRF instances (maximum): 16000 ¦ ECMP paths: 128 ¦ Maximum number of port channels: 512 ¦ Maximum number of links in a port channel: 32 ¦ SPAN sessions: 32 ¦ Active SPAN sessions: 4 ¦ RPVST instances: 4000 ¦ HSRP groups: 1000 ¦ MST instances: 64 ¦ Flow table size: 128000 ¦ NAT entries: 2000 ¦ Queues per port: 8 |
| MAC Address Table Size | 256K entries |
| Routing Protocol | OSPF, RIP-2, BGP, EIGRP, PIM-SM, MSDP, ECMP, RSVP |
| Remote Management Protocol | NETCONF, RESTCONF, IPv4, IPv6 |
| Features | DCBX support, ACL support, RDMA support, DCB, MACsec support, breakout capability, VTEP support, ECN, PFC, SSM, EVPN, POAP, SPAN |
| Compliant Standards | IEEE 802.1ae |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.4 in x 22.3 in x 3.4 in |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Switch - 64 ports |
| Enclosure Type | Rack-mountable 2U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 64 x 100 Gigabit QSFP28 |
| Performance | Bandwidth: 12.8 Tbps ¦ Packet buffer size: 40 MB |
| Capacity | Slices: 2 ¦ Longest prefix match (LPM) entries (IPv4): 2000000 ¦ Host table entries (IPv4): 2000000 ¦ Longest prefix match (LPM) entries (IPv6): 1000000 ¦ Host table entries (IPv6): 1000000 ¦ MAC address entries: 1000000 ¦ Multicast routes: 256000 ¦ IGMP snooping groups: 32000 ¦ Maximum ACL rules per interface (IPv4) ingress rules: 28000 ¦ Maximum ACL rules per interface (IPv4) egress rules: 28000 ¦ Virtual interfaces (VLANs): 4096 ¦ VRF instances (maximum): 16000 ¦ ECMP paths: 128 ¦ Maximum number of port channels: 512 ¦ Maximum number of links in a port channel: 32 ¦ SPAN sessions: 32 ¦ Active SPAN sessions: 4 ¦ RPVST instances: 4000 ¦ HSRP groups: 1000 ¦ MST instances: 64 ¦ Flow table size: 128000 ¦ NAT entries: 2000 ¦ Queues per port: 8 |
| MAC Address Table Size | 256K entries |
| Routing Protocol | OSPF, RIP-2, BGP, EIGRP, PIM-SM, MSDP, ECMP, RSVP |
| Remote Management Protocol | NETCONF, RESTCONF, IPv4, IPv6 |
| Features | DCBX support, ACL support, RDMA support, DCB, MACsec support, breakout capability, VTEP support, ECN, PFC, SSM, EVPN, POAP, SPAN |
| Compliant Standards | IEEE 802.1ae |
| RAM | 32 GB |
| Built-in Devices | 128 GB SSD |
| Expansion / Connectivity | |
| Interfaces | 64 x 100Gbit LAN QSFP28 ¦ 2 x management ¦ 1 x USB ¦ 1 x serial (RS-232) console |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year - response time: 10 days |
| Miscellaneous | |
| MTBF | 192,380 hours |
| Compliant Standards | CISPR 24, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, WEEE, RoHS, ANSI/UL 60950-1 Second Edition, EN 300 386, IEC/EN 61000-6-1, EN 55032 Class A, EN 62368-1 Second Edition, IEC 61000-6-1, CISPR 32 Class A, IEC 61000-6-2, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, CISPR 35, EN61000-3-12, CAN/CSA-C22.2 No. 62368-1 Third Edition, EN 62368-1 Third Edition, ICES-003 issue 7 Class A, KS C 9835, KS C 9832, AS/NZS 62368-1 Third Edition, 47 CFR Part 15 Class A, EN55035, EN IEC 61000-3-2, VCCI-CISPR 32 Class A, ANSI/UL 62368-1 Third Edition, CNS 15936, EN IEC 61000-3-11 |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 3+1 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 131 °F |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 22.3 in |
| Height | 3.4 in |
