Control processor - 10GbE, 40GbE - government - plug-in module - TAA Compliant
| Main Specifications | |
|---|---|

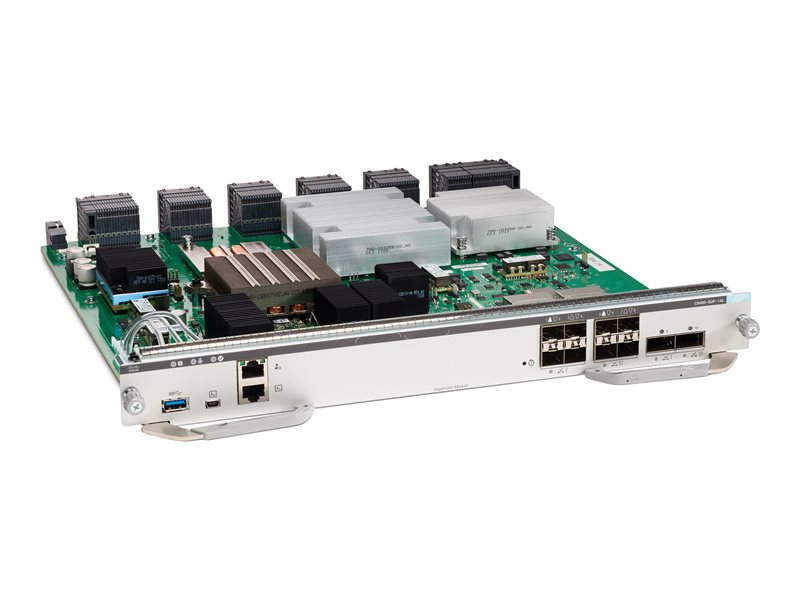

| Product Description | Cisco Supervisor-1XL Module - control processor - TAA Compliant |
| Device Type | Control processor |
| Form Factor | Plug-in module |
| RAM | 16 GB |
| Flash Memory | 10 GB |
| Hard Drive | 960 GB |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet |
| Performance | Centralized throughput: 1.44 Tbps ¦ Forwarding rate for IPv4: 900 Mpps |
| Capacity | FNF entries (IPv4): 384000 ¦ FNF entries (IPv6): 192000 ¦ IPv4 routes (ARP entries): 144000 ¦ MAC addresses: 64000 ¦ VLAN IDs: 4096 ¦ STP Virtual Ports for PVST: 13000 ¦ STP Virtual Ports for MST: 13000 ¦ Switched virtual interfaces (SVIs): 1000 ¦ Jumbo frame size: 9216 ¦ QoS hardware entries: 18000 ¦ Security ACL hardware entries: 180000 ¦ IGMP snooping entries: 16000 ¦ Multicast routes: 16000 ¦ Flexible NetFlow entries: 384000 |
| Pricing Type | Government |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 14.9 in x 14.6 in x 1.6 in |
| Weight | 9.92 lbs |
| General | |
| Device Type | Control processor |
| Width | 14.9 in |
| Depth | 14.6 in |
| Height | 1.6 in |
| Weight | 9.92 lbs |
| Expansion / Connectivity | |
| Interfaces | 1 x console - RJ-45 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x USB 3.0 - Type A ¦ 1 x management (mini-USB) - Type B ¦ 8 x 10Gb Ethernet (uplink) - SFP+ ¦ 2 x 40Gb Ethernet (uplink) |
| Miscellaneous | |
| MTBF | 253,010 hours |
| Pricing Type | Government |
| TAA Compliant | Yes |
| Networking | |
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet |
| Performance | Centralized throughput: 1.44 Tbps ¦ Forwarding rate for IPv4: 900 Mpps |
| Capacity | FNF entries (IPv4): 384000 ¦ FNF entries (IPv6): 192000 ¦ IPv4 routes (ARP entries): 144000 ¦ MAC addresses: 64000 ¦ VLAN IDs: 4096 ¦ STP Virtual Ports for PVST: 13000 ¦ STP Virtual Ports for MST: 13000 ¦ Switched virtual interfaces (SVIs): 1000 ¦ Jumbo frame size: 9216 ¦ QoS hardware entries: 18000 ¦ Security ACL hardware entries: 180000 ¦ IGMP snooping entries: 16000 ¦ Multicast routes: 16000 ¦ Flexible NetFlow entries: 384000 |
| Status Indicators | Status |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Processor / Memory / Storage | |
| RAM | 16 GB |
| Flash Memory | 10 GB |
| Hard Drive | SSD 960 GB |
