Docking station - USB-C 3.2 Gen 1 / Thunderbolt 3 / Thunderbolt 4 - HDMI, 2 x DP - 1GbE
| Main Specifications | |
|---|---|
| Product Description | Startech USB-C Triple-Monitor Multiport Adapter, HDMI/DP/Card Reader - docking station - USB-C 3.2 Gen 1 / Thunderbolt 3 / Thunderbolt 4 - HDMI, 2 x DP - 1GbE |
| Product Type | Docking station |
| Docking Interface | USB-C 3.2 Gen 1 / Thunderbolt 3 / Thunderbolt 4 |
| Video Interfaces | HDMI, 2 x DP |
| Dimensions (WxDxH) | 2.2 in x 5.1 in x 0.6 in |
| Weight | 3.74 oz |
| Color | Space gray |
| Networking | Gigabit Ethernet |
| Power | 15 Watt |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Docking station |
| Width | 2.2 in |
| Depth | 5.1 in |
| Height | 0.6 in |
| Weight | 3.74 oz |
| Enclosure Color | Space gray |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SD / MMC Memory Card ¦ 1 (total) / 1 (free) x microSD |

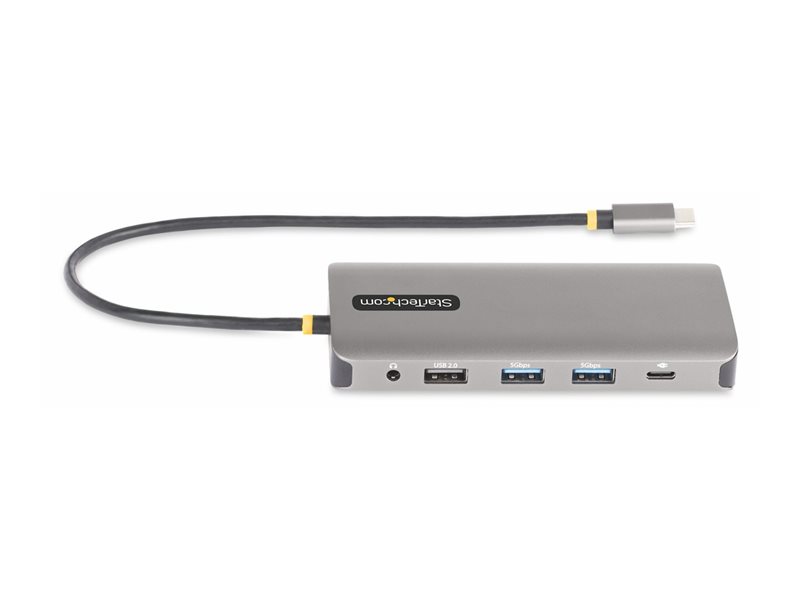

| Interfaces | 1 x display / video - HDMI - 19 pin HDMI Type A ¦ 2 x display / video - 20 pin DisplayPort ¦ 1 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 2 x USB 2.0 - 4 pin USB Type A ¦ 1 x USB-C with Power Delivery (100 W) - 24 pin USB-C ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x audio - mini-phone 3.5 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x USB-C 3.2 Gen 1 cable - integrated - 1 ft |
| Features | Wake on LAN, Preboot Execution Environment (PXE) support, full duplex support, bus powered, DisplayPort Alt Mode, triple display support, aluminum/plastic enclosure, 100W power delivery (pass-through) |
| Compliant Standards | RoHS, DisplayPort 1.4, UASP (USB Attached SCSI Protocol), USB Power Delivery 3.0 |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Power | |
| Power Consumption (Max) | 15 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Video | |
| Max Resolution Details | 3840 x 2160, 4K - 60 Hz (Triple Display) ¦ 3840 x 2160, 4K - 60 Hz (Dual Display) |
| System Requirements | |
| OS Required | Windows 8.1 / 10 / 11, Google Chrome OS 78.x |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6.7 in |
| Shipping Depth | 5.6 in |
| Shipping Height | 1.2 in |
| Shipping Weight | 4.23 oz |
