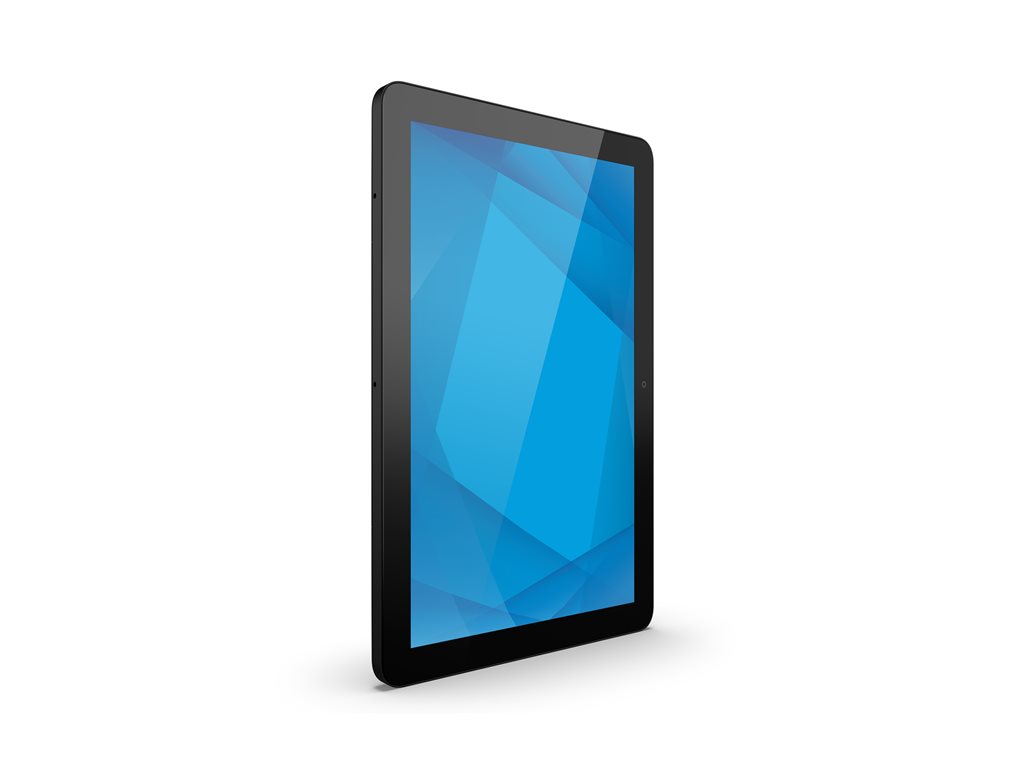

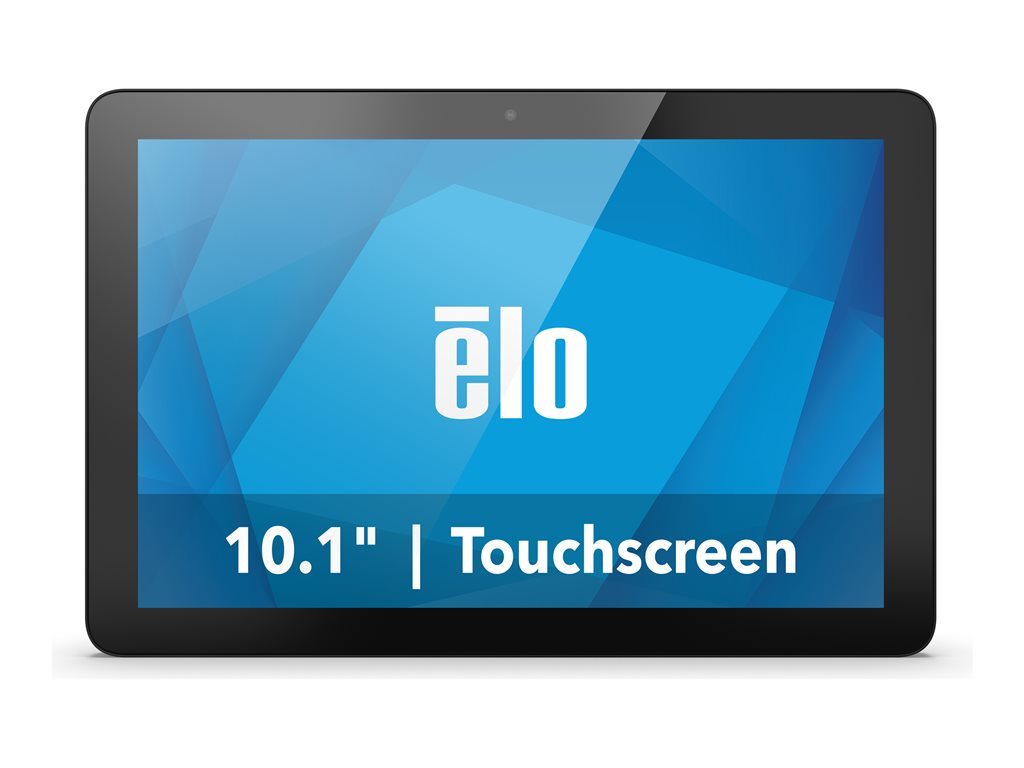

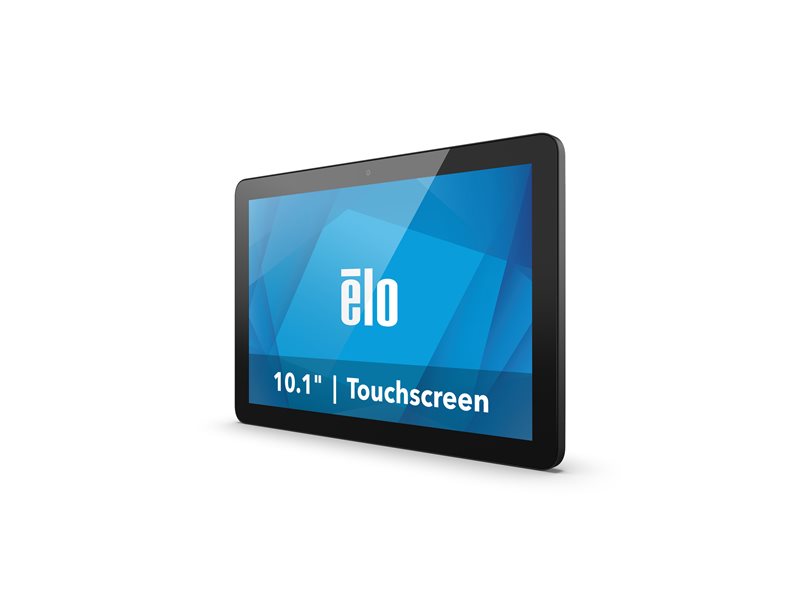

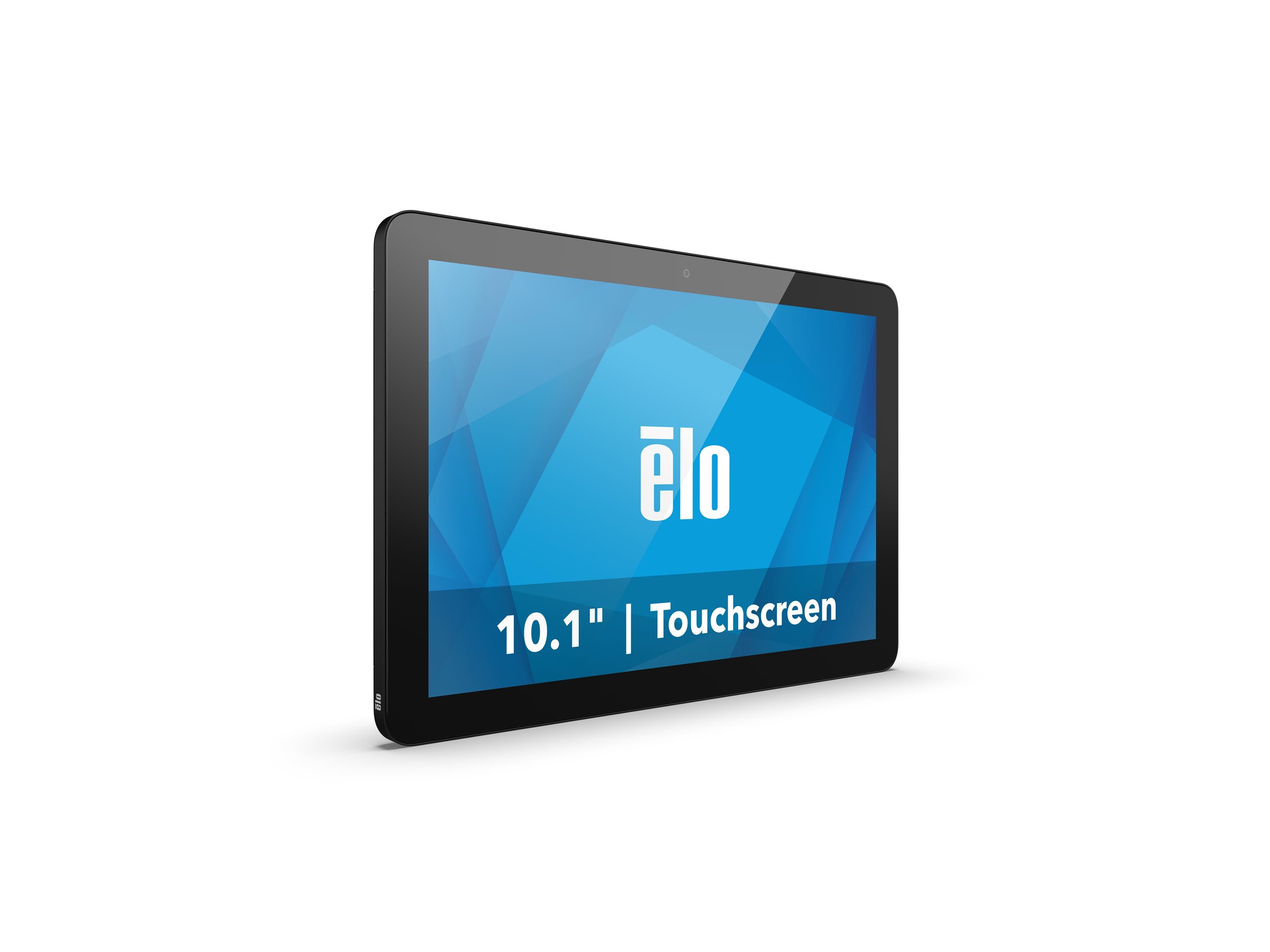

All-in-one 1 RK3399 - RAM 4 GB 32 GB - Gigabit Ethernet - Android 12 - monitor: LED 10.1" 1280 x 800 (WXGA) @ 60 Hz touchscreen - black
| Main Specifications | |
|---|---|
| Product Description | Elo I-Series 4.0 - all-in-one RK3399 - 4 GB 32 GB - LED 10.1" |
| Type | Point of sale terminal - all-in-one |
| Processor | 1 x Rockchip RK3399 |
| RAM | 4 GB |
| Hard Drive | 32 GB |
| Optical Storage | No optical drive |
| Card Reader | Yes |
| Monitor | 10.1" - LED - 1280 x 800 (WXGA) @ 60 Hz - 16:10 - touchscreen |
| Camera | Yes |
| Networking | 802.11a, Wi-Fi 5, 802.11b/g/n, Bluetooth 5.0, 1GbE |
| Power | (50/60 Hz) |
| OS Provided | Android 12 |
| Software Included | Google Mobile Services |
| Color | Black |
| Dimensions (WxDxH) | 10 in x 0.9 in x 6.7 in |
| Weight | 28.22 oz |
| Manufacturer Warranty | Limited warranty - 2 years |
| General | |
| Type | Point of sale terminal |
| Product Form Factor | All-in-one |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x USB 3.0 (900 mA) ¦ 1 x USB-C ¦ 1 x GPIO ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 - micro-USB (support for 1.2 A on one port and 500 mA for the remaining three ports) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Screw set, power adapter |

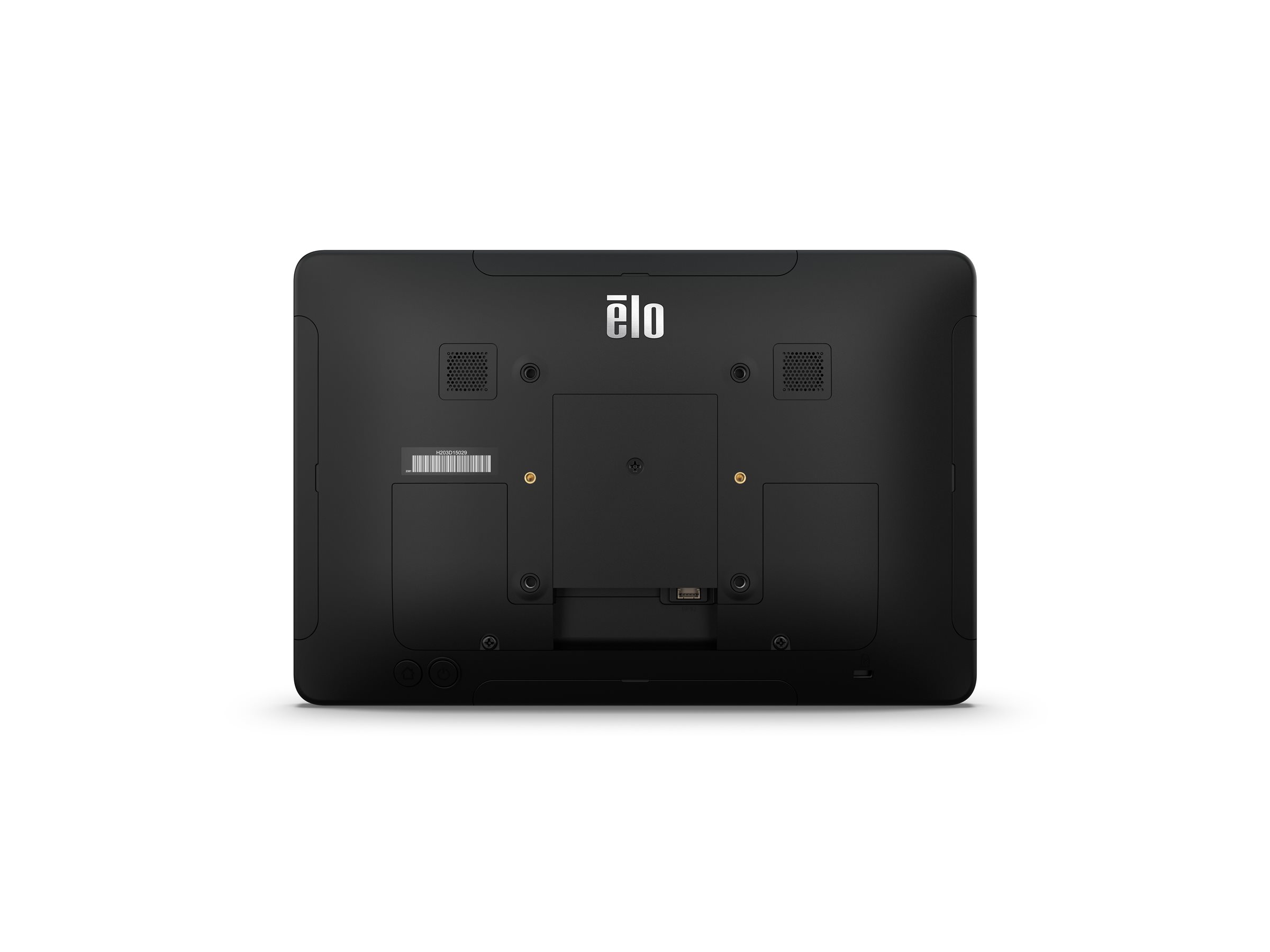

| VESA Mounting Interface | 75 mm, VESA |
| Compliant Standards | UL, cUL, FCC, IC, CB, VCCI, MIC, RCM |
| RAM | |
| Installed Size | 4 GB |
| Networking | |
| Wireless LAN Supported | Yes |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 5.0, Ethernet, Gigabit Ethernet, Fast Ethernet |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 7.2 Watt |
| Power Consumption Stand by | 0.4 Watt |
| Power Consumption Sleep | 3.4 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | LED |
| Touchscreen | Yes (10-point multi-touch) |
| Diagonal Size | 10.1" |
| Native Resolution | 1280 x 800 (WXGA) |
| V-Sync Rate at Max Res. | 60 Hz |
| Widescreen Display | Yes |
| Image Aspect Ratio | 16:10 |
| Horizontal Viewing Angle | +85 / -85 |
| Vertical Viewing Angle | +85 / -85 |
| Response Time | 25 ms |
| Image Brightness | 300 cd/m² |
| Image Contrast Ratio | 800:1 |
| Monitor Features | TouchPro Pro Projected Capacitive (PCAP) technology |
| Audio Output | |
| Speakers Included | 2 |
| Operating System / Software | |
| OS Provided | Android 12 |
| Software | Google Mobile Services |
| Hard Drive | |
| Capacity | 1 x 32 GB |
| Camera | |
| Camera | Yes |
| Resolution (MP) | 5 Megapixel |
| Resolution | 1920 x 1080 |
| Features | Autofocus, 30 frames per second |
| Audio Input | |
| Type | Microphone |
| Dimensions & Weight | |
| Width | 10 in |
| Depth | 0.9 in |
| Height | 6.7 in |
| Weight | 28.22 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 12.4 in |
| Shipping Depth | 5.5 in |
| Shipping Height | 9 in |
| Shipping Weight | 4.85 lbs |
| Card Reader | |
| Type | Card reader |
| Supported Flash Memory Cards | microSD |
| Processor / Chipset | |
| CPU | Rockchip RK3399 |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
