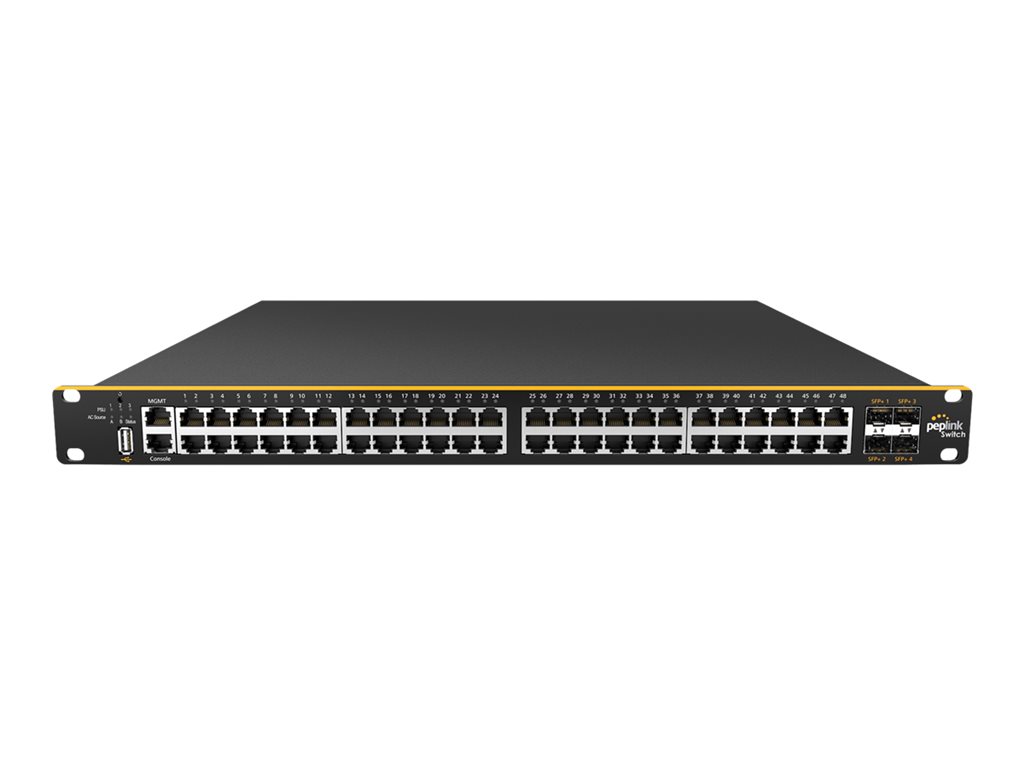

Switch - managed - 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ - rack-mountable, desktop - PoE+ (800 W) - with 4 years essentialcare+ F advance hardware replacement RMA
| Main Specifications | |
|---|---|
| Product Description | Peplink SD - switch - 48 ports - managed - rack-mountable |
| Device Type | Switch - 48 ports - managed |
| Enclosure Type | Rack-mountable 1U |
| Bundled Services | 4 years essentialcare+ F advance hardware replacement RMA |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 800 W |
| Performance | Switching capacity: 176 Gbps ¦ Packet forwarding rate: 131 Mbps |
| MAC Address Table Size | 32000 entries |
| Features | VLAN support, VLAN group, Inter-VLAN Routing, cloud managed, InControl Cloud Management, reset button |
| Compliant Standards | IEEE 802.3at |
| Power | AC 100-240 V |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 19.1 in x 15.7 in x 1.8 in |
| Weight | 15.43 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Switch - 48 ports - managed |
| Bundled Services | 4 years essentialcare+ F advance hardware replacement RMA |
| Enclosure Type | Rack-mountable, desktop 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 800 W |
| Performance | Switching capacity: 176 Gbps ¦ Packet forwarding rate: 131 Mbps |
| MAC Address Table Size | 32000 entries |
| Features | VLAN support, VLAN group, Inter-VLAN Routing, cloud managed, InControl Cloud Management, reset button |
| Compliant Standards | IEEE 802.3at |
| Status Indicators | Status |
| Expansion / Connectivity | |
| Interfaces | 48 x 1000Base-T RJ-45 PoE+ ¦ 4 x 10Gbit LAN SFP+ ¦ 1 x management RJ-45 ¦ 1 x console RJ-45 ¦ 1 x USB Type A management |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Rubber feet |
| Compliant Standards | FCC, RoHS, IC, EN 61000 |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 3 |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 100 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 19.1 in |
| Depth | 15.7 in |
| Height | 1.8 in |
| Weight | 15.43 lbs |
