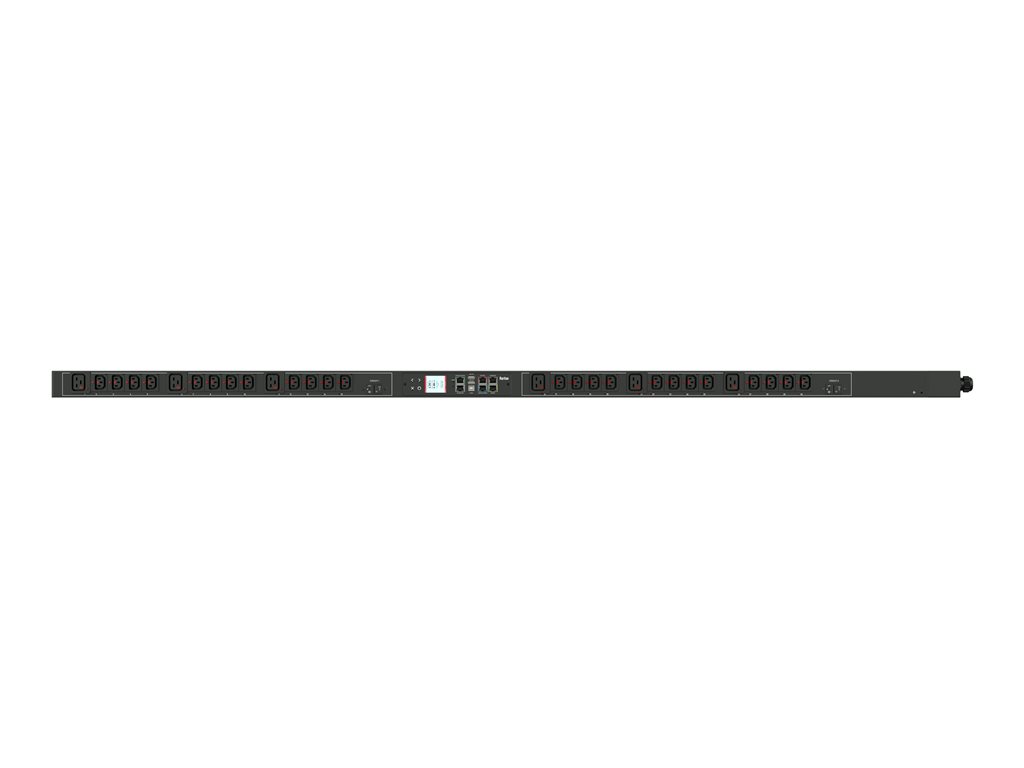

Power distribution unit (rack-mountable) - AC 208 V - 5800 VA - 1-phase - Ethernet 10/100, Ethernet 10/100/1000, RS-232, USB - input: NEMA L6-30P - output connectors: 32 (24 x IEC 60320 C13, 6 x IEC 60320 C19) - 0U - 10 ft cord - black powder coat
| Main Specifications | |
|---|---|
| Product Description | Raritan PX3-4870V-E2 - power distribution unit - 5800 VA |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Rack Size | 0U |
| Input Wiring | 1-phase |
| Input Voltage | AC 208 V |
| Output Voltage | AC 208 V |
| Power Capacity | 5800 VA |
| Power Capacity Details | 4.8 kVA at 200 V, 5.8 kVA at 240 V |
| Input Connectors | 1 x power NEMA L6-30P |
| Output connectors | 24 x power IEC 60320 C13 12 A ¦ 6 x power IEC 60320 C19 16 A |
| Networking | Ethernet 10/100, Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC, Modbus |
| Color | Black powder coat |
| Dimensions (WxDxH) | 2 in x 2.8 in x 70.1 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 10 ft |
| Color | Black powder coat |
| Expansion / Connectivity | |
| Interfaces | 1 x sensor ¦ 1 x modem ¦ 2 x monitoring ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (Gigabit Ethernet) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 10 ft |
| Rack Mounting Kit | Included |
| Features | Energy meter, voltage meter, current meter, active power meter, real power meter, power factor meter, metering per input line, metering per branch circuit breaker, metering per output receptacle, environmental sensor ready, replaceable controller, LCD display, Auto-Flip Current Display, ARM Cortex A5 CPU, 16MB SPI Flash, 64MB DDR2 RAM, bottom-bottom feed cord entry, locking outlets, Raritan SecureLock Ready, splash-proof plug, 2 x LEGBX66-20 overload protection, 5kAIC breaker |
| Compliant Standards | UL, ICES-003, FCC Part 15 A, RoHS, IP44 |
| Networking | |
| Remote Management Interface | Ethernet 10/100, Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC, Modbus |
| Environmental Parameters | |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 85% RH |
| Power Device | |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 200 - 240 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-30P |
| Power Output Connectors Details | 24 x power IEC 60320 C13 12 A ¦ 6 x power IEC 60320 C19 16 A |
| Output Voltage | AC 208 V |
| Max Electric Current | 24 A |
| Power Capacity | 5800 VA |
| Power Capacity Details | 4.8 kVA at 200 V, 5.8 kVA at 240 V |
| Dimensions & Weight | |
| Width | 2 in |
| Depth | 2.8 in |
| Height | 70.1 in |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 11.2 in |
| Shipping Depth | 5.3 in |
| Shipping Height | 81.9 in |
