Label printer - direct thermal - Roll (4.52 in) - 203 dpi - up to 360 inch/min - USB, LAN, RS232C, Bluetooth 2.1 EDR, USB host
| Main Specifications | |
|---|---|

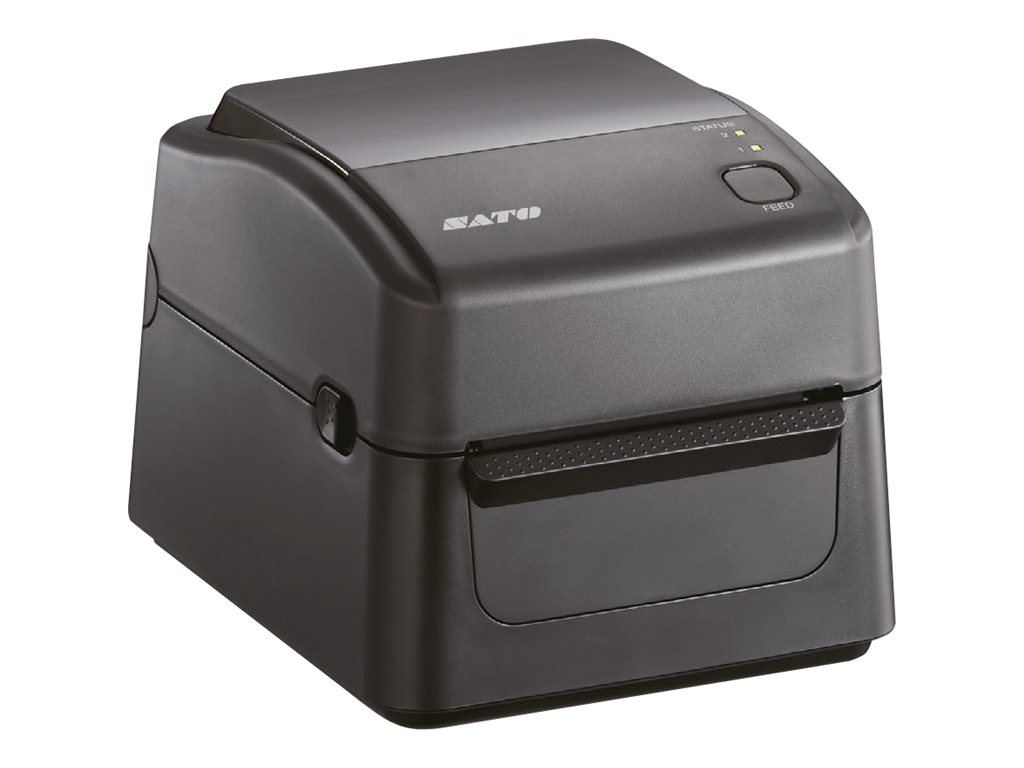

| Product Description | SATO WS4-2 Series WS408-2DT - label printer - B/W - direct thermal |
| Printer Type | Label printer - direct thermal - B/W |
| Weight | 3.84 lbs |
| Localization | North America |
| Max Media Size | Roll (4.52 in) |
| Min Media Size (Custom) | 0.88 in x 0.31 in |
| Max Media Size (Custom) | 4.52 in x 39.21 in |
| Print Speed | Up to 360 inch/min - max speed |
| Max Resolution (B&W) | 203 dpi |
| Interface | USB, LAN, RS232C, Bluetooth 2.1 EDR, USB host |
| RAM Installed (Max) | 128 MB |
| Flash Memory Installed (Max) | 16 MB |
| Language Simulation | SZPL, SDPL, SIPL, SEPL, SBPL |
| Barcodes | UPC-A / E, Code 39, Code 93, Code 128, GS1-128 (UCC/EAN-128), Codabar, Interleaved 2 of 5, MSI, GS1 DataBar Omnidirectional, GS1 DataBar-14, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, Postnet, Industrial 2 of 5, UPC A Composite, EAN/JAN-13, EAN/JAN-8, UPC E Composite, GS1 DataBar Composites, NW-7, MicroPDF417, PDF417, MaxiCode, QR code, GS1 DataMatrix |
| Media Type | Tickets, continuous labels, die cut labels, tags, plain paper, fanfold labels |
| Fonts | CG Times, CG Triumvirate, OCR-A, OCR-B, Bitmap |
| Styles & Effects | Rotated text |
| Features | Label Taken Sensor (LTS), gap sensor, open head sensor, adjustable I-mark sensor |
| Networking | Print server |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 7.2 in x 8.9 in x 6.5 in |
| General | |
| Printer Type | Label printer - direct thermal - monochrome |
| Localization | North America |
| Expansion / Connectivity | |
| Connections | 1 x RS-232C - 9 pin D-Sub (DB-9) ¦ 1 x LAN - RJ-45 ¦ 1 x USB - 4 pin USB Type B ¦ 1 x USB host - 4 pin USB Type A |
| Miscellaneous | |
| Compliant Standards | CSA, UL, FCC, TUV GS, EAC, RoHS |
| Printer | |
| Print Speed | Up to 360 inch/min - max speed |
| Connectivity Technology | Wireless |
| Interface | USB, LAN, RS232C, Bluetooth 2.1 EDR, USB host |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | SZPL, SDPL, SIPL, SEPL, SBPL |
| Fonts | CG Times, CG Triumvirate, OCR-A, OCR-B, Bitmap |
| Styles & Effects | Rotated text |
| Features | Label Taken Sensor (LTS), gap sensor, open head sensor, adjustable I-mark sensor |
| Barcodes | UPC-A / E, Code 39, Code 93, Code 128, GS1-128 (UCC/EAN-128), Codabar, Interleaved 2 of 5, MSI, GS1 DataBar Omnidirectional, GS1 DataBar-14, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, Postnet, Industrial 2 of 5, UPC A Composite, EAN/JAN-13, EAN/JAN-8, UPC E Composite, GS1 DataBar Composites, NW-7, MicroPDF417, PDF417, MaxiCode, QR code, GS1 DataMatrix |
| RAM | |
| RAM Installed (Max) | 128 MB |
| Media Handling | |
| Media Type | Tickets, continuous labels, die cut labels, tags, plain paper, fanfold labels |
| Max Media Size | Roll (4.52 in) |
| Min Media Size (Custom) | 0.88 in x 0.31 in |
| Max Media Size (Custom) | 4.52 in x 39.21 in |
| Media Sizes | Roll (0.88 in - 4.53 in) |
| Max Printing Width | 4.09 in |
| Max Printing Length | 39.2 in |
| Media Thickness Range | 0.0024 in - 0.0075 in |
| Roll Maximum Outer Diameter | 5 in |
| Roll Core Diameter | 1 in, 1.5 in |
| Media Feeders | 1 x manual - 1 roll - Roll (4.52 in) |
| Networking | |
| Networking | Print server |
| Power | |
| Power Device | Power adapter - external |
| Voltage Required | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 60 watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 25 - 85% (non-condensing) |
| Flash Memory | |
| Flash Memory | 16 MB |
| Dimensions & Weight | |
| Width | 7.2 in |
| Depth | 8.9 in |
| Height | 6.5 in |
| Weight | 3.84 lbs |
