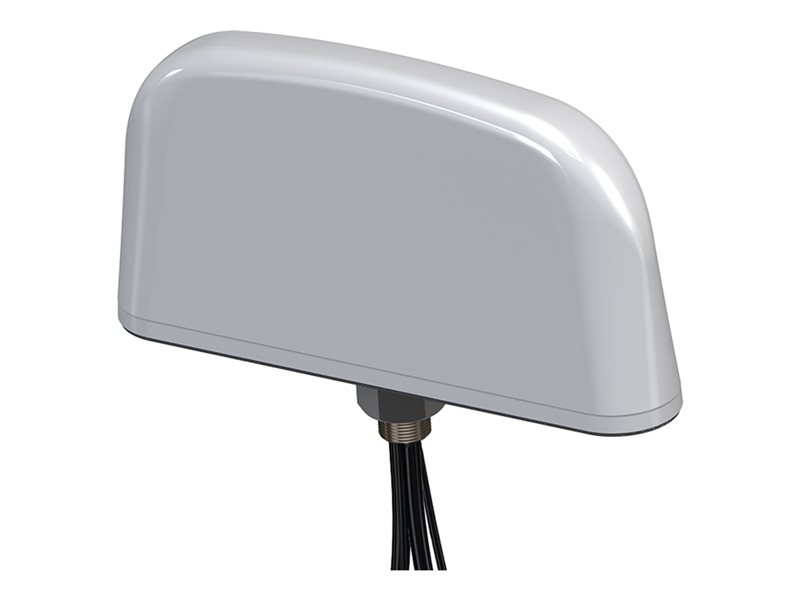

Antenna - blade - cellular, navigation - surface mountable
| Main Specifications | |
|---|---|
| Product Description | Mobile Mark LTB Series LTB302 - antenna |
| Device Type | Antenna |
| Form Factor | Blade |
| Intended For | Cellular, navigation |
| Antenna Placing / Mounting | Surface mountable |
| Dimensions (WxDxH) | 7.5 in x 1.5 in x 3.9 in |
| Color | Light gray |
| Compatibility | LTE, 4G, GPS |
| Frequency Range | 694 - 960 MHz, 1710 - 4200 MHz, 1575 MHz |
| Features | IP67, 2x2 MiMo, VSWR < 2:1, no ground plane required |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Antenna |
| Form Factor | Blade |
| Intended For | Cellular, navigation |
| Antenna Placing / Mounting | Surface mountable |
| Width | 7.5 in |
| Depth | 1.5 in |
| Height | 3.9 in |
| Color | Light gray |
| Product Material | UV-resistant plastic |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 2 x antenna cable - 3 ft ¦ 1 x GPS cable - 3 ft |
| Antenna | |
| Compatibility | LTE, 4G, GPS |
| Frequency Range | 694 - 960 MHz, 1710 - 4200 MHz, 1575 MHz |
| Impedance | 50 Ohm |
| Max Power | 10 Watt |
| Features | IP67, 2x2 MiMo, VSWR < 2:1, no ground plane required |
| Connector Provided | |
| Type | 3 x antenna - SMA (male) |
