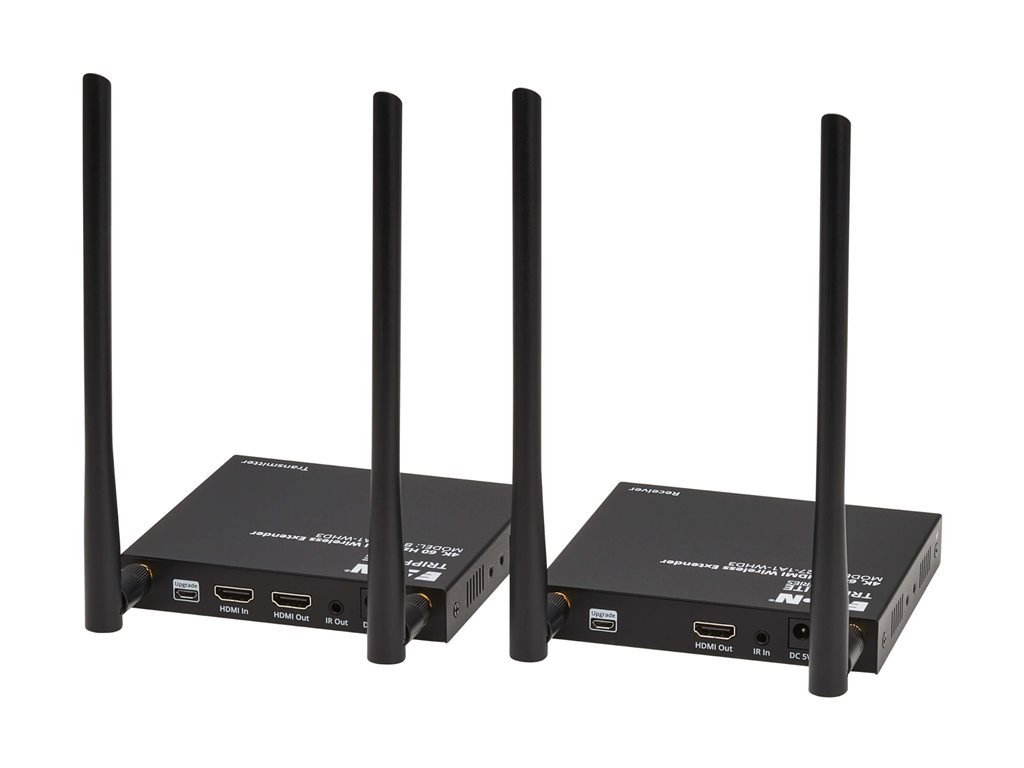

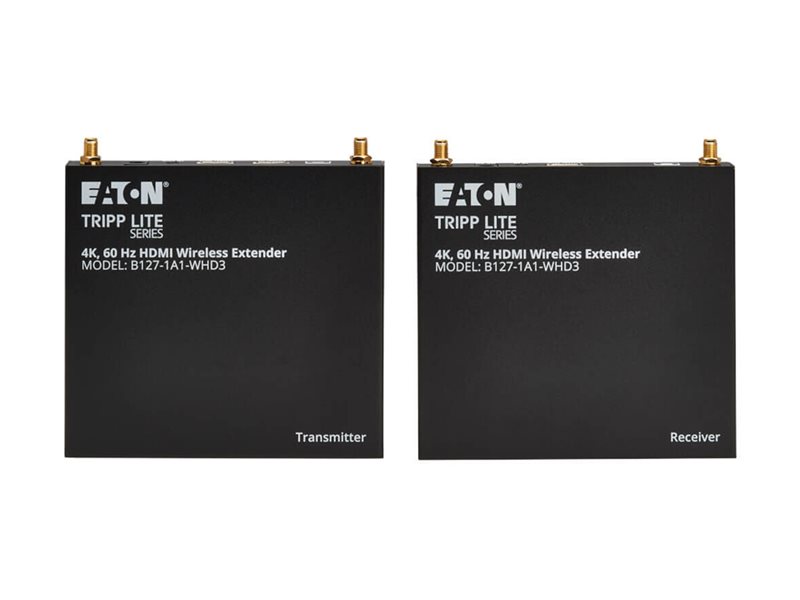

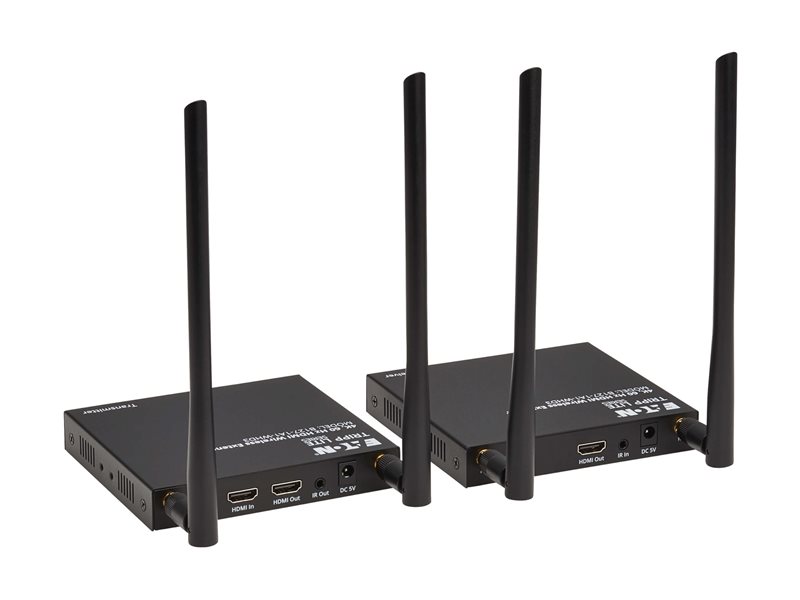

Wireless video/audio/infrared extender - up to 164 ft
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series HDMI over Wireless Extender Kit w IR, 4K 60hz, 164ft (50M), Wireless HDMI, switchable channel - wireless video/audio/infrared extender |
| Device Type | Wireless video/audio/infrared extender |
| Form Factor | Surface / wall mountable |
| Max Transfer Distance | 164 ft |
| Power | AC 100-240 V |
| Manufacturer Warranty | 1-year warranty |
| Designed For | P/N: DMCS3770L |
| General | |
| Device Type | Wireless video/audio/infrared extender |
| Form Factor | Surface / wall mountable |
| Color | Black |
| Expansion / Connectivity | |

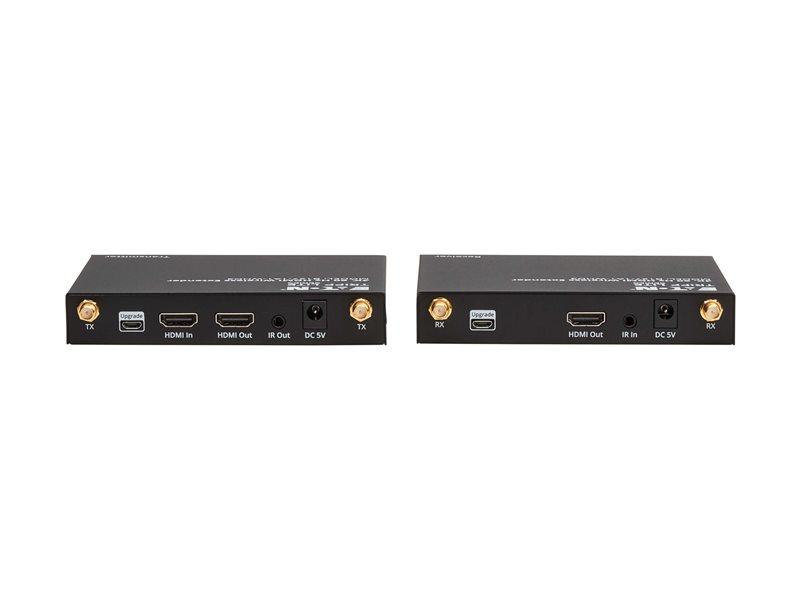

| Interfaces | 1 x audio / video (transmitter input) - 19 pin HDMI Type A female ¦ 1 x audio / video (transmitter output) - 19 pin HDMI Type A female ¦ 1 x audio / video (receiver output) - 19 pin HDMI Type A female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | 4 antennas, 4 power plug adapters, wall mounting kit |
| Cables Included | 2 x power cable - 4 ft ¦ 2 x IR cable |
| Mounting Kit | Included |
| Compliant Standards | Plug and Play, FCC, REACH, RoHS, UKCA, WEEE, IEC 61000-4-2 |
| Networking | |
| Connectivity Technology | Wireless |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Max Transfer Distance | 164 ft |
| Status Indicators | Status |
| Features | 18 Gbps bandwidth, 4:4:4 chroma subsampling support, metal housing, ESD Protector, switch button |
| Compliant Standards | HDCP 1.4, HDCP 2.2 |
| Power | |
| Power Device | External power adapter |
| Installed Qty | 2 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 0 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Transmitter: 4.9 in x 4.5 in x 0.8 in / 12.5 oz ¦ Receiver: 4.9 in x 4.5 in x 0.8 in / 12.2 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6 in |
| Shipping Depth | 14.1 in |
| Shipping Height | 3.3 in |
| Shipping Weight | 2.65 lbs |
| Compatibility Information | |
| Designed For | P/N: DMCS3770L |
